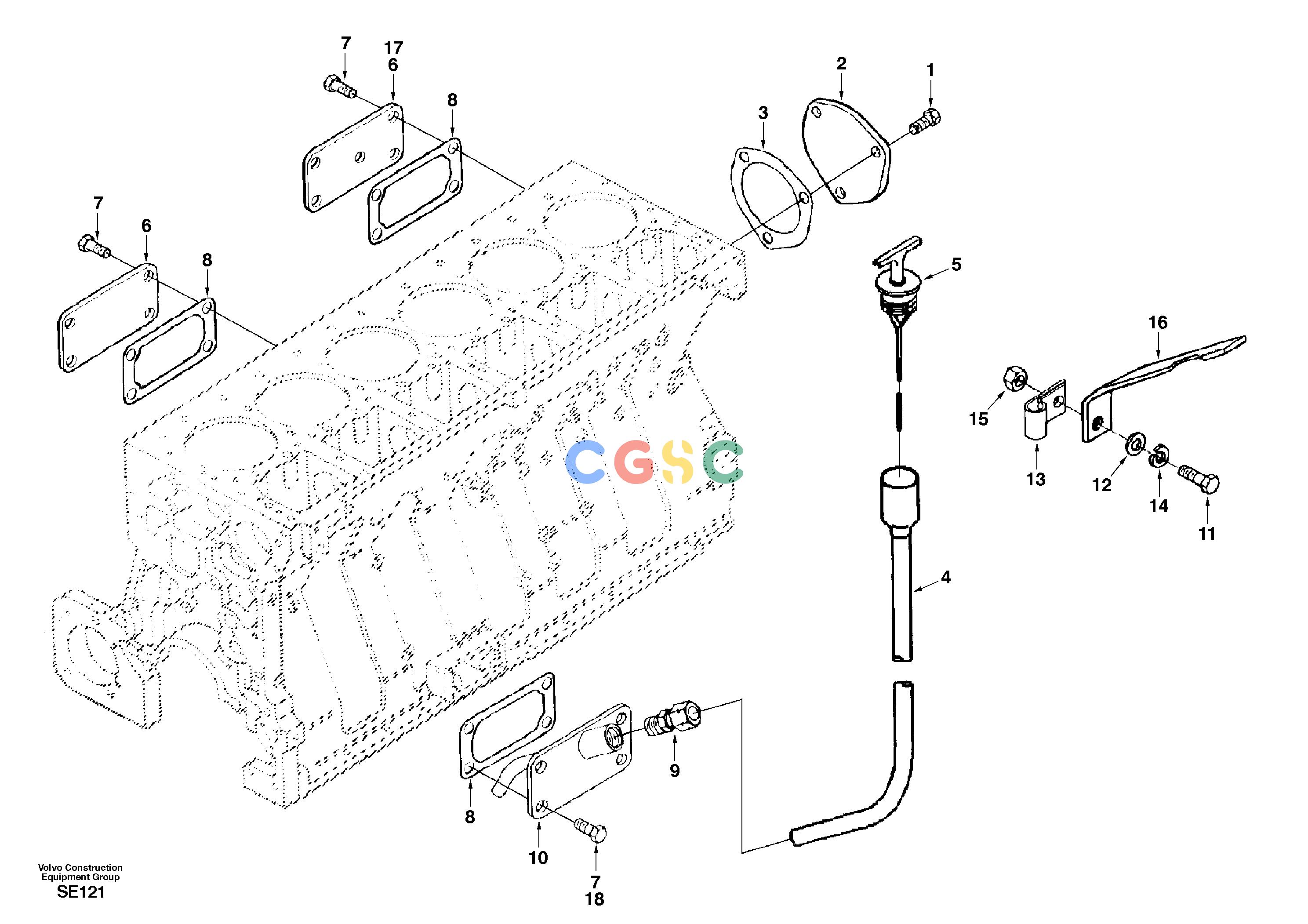

沃尔沃零件查询EC360 Oil dipstickNoneDH04B001-DH04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
802 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3009887
|
[3] |
Screw
|
|
| 2. |
SA3025295
|
[1] |
Cover
|
|
| 3. |
SA3025296
|
[1] |
Gasket
|
|
| 4. |
SA3251882
|
[1] |
Pipe
|
|
| 5. |
SA216484
|
[1] |
Dipstick
|
|
| 6. |
SA3028684
|
[2] |
Cover
|
|
| 7. |
SA3036230
|
[8] |
Screw
|
|
| 8. |
SA3883472
|
[3] |
Gasket
|
|
| 9. |
SA163759
|
[1] |
Connector
|
|
| 10. |
SA3253970
|
[1] |
Cover
|
|
| 11. |
SAS-109
|
[1] |
Bolt
|
|
| 12. |
SA108330
|
[1] |
Washer
|
|
| 13. |
SA68152
|
[1] |
Clip
|
|
| 14. |
SAS-604
|
[1] |
Washer
|
|
| 15. |
SAS-223
|
[1] |
Nut
|
|
| 16. |
SA3251884
|
[1] |
Brace
|
|
| 17. |
SA3820860
|
|
Cover
|
|
| 18. |
SA3335044
|
[4] |
Hexagon screw
|
|
