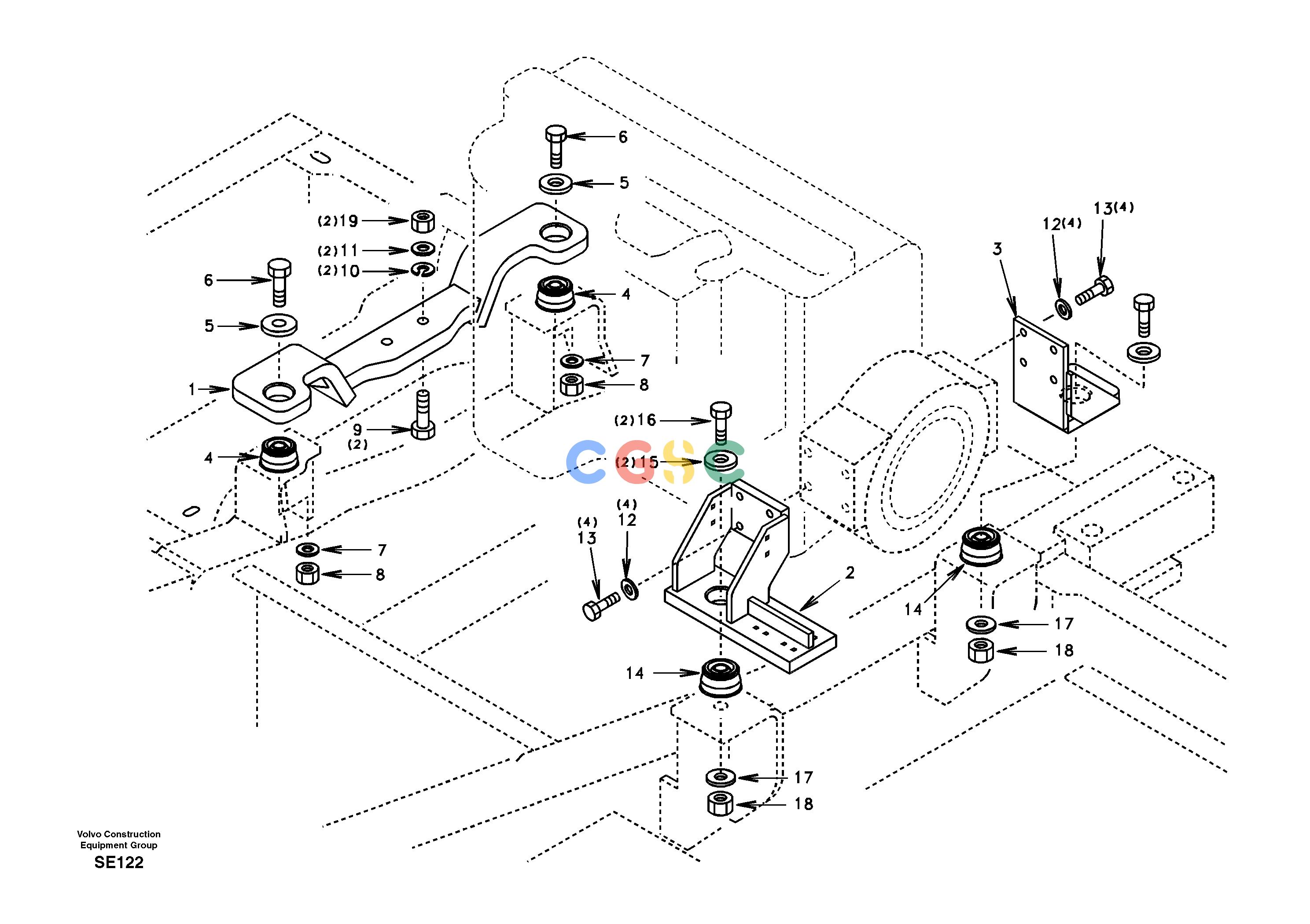

沃尔沃零件查询EC360 Engine mountNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1112-00992
|
[1] |
Bracket
|
|
| 2. |
SA1112-01002
|
[1] |
Bracket
|
|
| 3. |
SA1112-01051
|
[1] |
Bracket
|
|
| 4. |
VOE14526155
|
[2] |
Cushion
|
|
| 5. |
SA2012-00110
|
[2] |
Plate
|
|
| 6. |
VOE992992
|
[2] |
Hexagon screw
|
|
| 7. |
VOE992059
|
[2] |
Plain washer
|
|
| 8. |
VOE991655
|
[2] |
Hexagon nut
|
|
| 9. |
SA9011-22016
|
[2] |
Bolt
|
|
| 10. |
SA9213-20000
|
[2] |
Spring washer
|
|
| 11. |
VOE60110287
|
[2] |
Washer
|
|
| 12. |
SA9213-16000
|
[8] |
Spring washer
|
|
| 13. |
SA9011-11610
|
[4] |
Bolt
|
|
| 14. |
SA2012-00931
|
[2] |
Cushion
|
|
| 15. |
SA2012-00270
|
[2] |
Washer
|
|
| 16. |
SA9011-22422
|
[2] |
Bolt
|
|
| 17. |
VOE60110301
|
[2] |
Washer
|
|
| 18. |
VOE980521
|
[2] |
Hexagon nut
|
|
