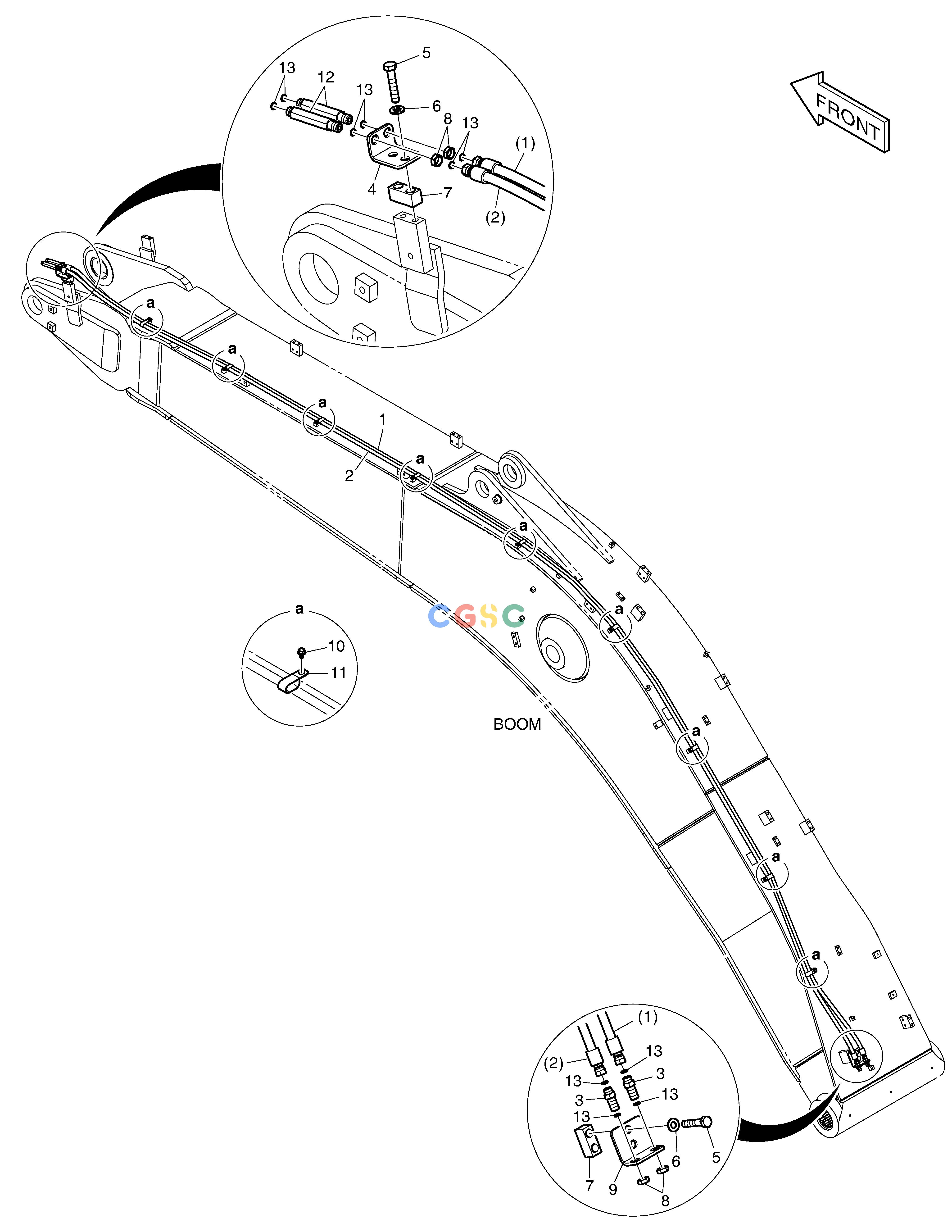

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-10545 | [-] | ||
| 1. | DS2011880 | [1] | ||
| 10. | K1001029 | [9] | BOLT | |
| 11. | 124-00199D1 | [9] | CLIP | |
| 12. | DS2415020 | [2] | ||
| 13. | S8030061 | [8] | O-RING | |
| 2. | DS20111537 | [1] | ||
| 3. | 181-00128D2 | [2] | ADAPTER;CONNECTOR | |
| 4. | 110406-00478 | [1] | ||
| 5. | S0563466 | [4] | BOLT | |
| 6. | K1015638 | [4] | WASHER;HARDENED | |
| 7. | K1004006 | [2] | PLATE | |
| 8. | DS0301032 | [4] | NUT | |
| 9. | 110406-00478 | [1] |
