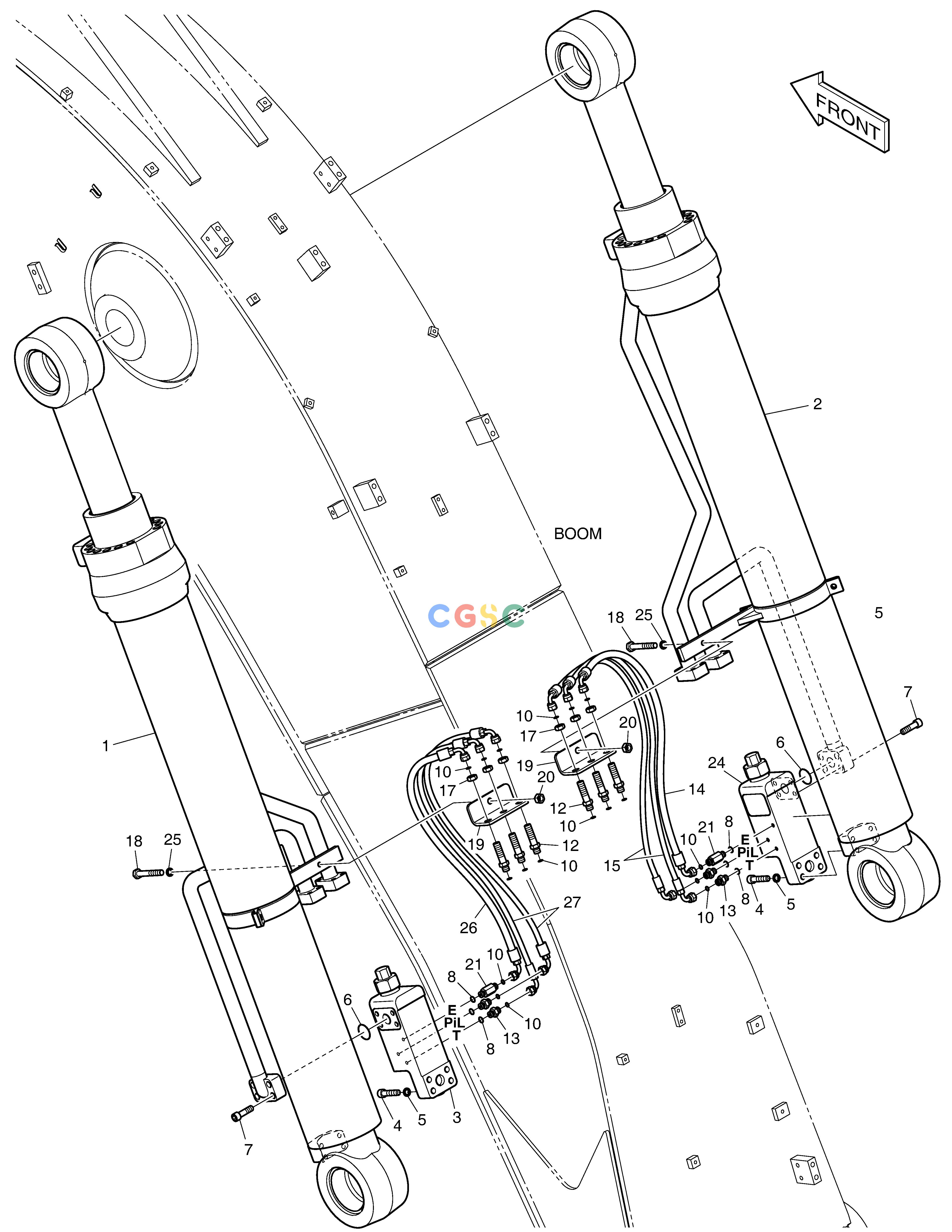

斗山零件查询BOOM PIPING-LOCK VALVE DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00606
|
[-] |
|
|
| 1. |
400309-00046C
|
[1] |
|
|
| 10. |
S8030041
|
[18] |
O-RING
|
|
| 12. |
DS2248006
|
[6] |
|
|
| 13. |
2181-4133D1
|
[4] |
ADAPTER
|
|
| 14. |
DS2023797
|
[1] |
|
|
| 15. |
DS2023745
|
[2] |
|
|
| 17. |
DS0301066
|
[6] |
|
|
| 18. |
S0561466
|
[2] |
BOLT
|
|
| 19. |
110406-00477
|
[2] |
|
|
| 2. |
400309-00047C
|
[1] |
|
|
| 20. |
S4012733
|
[2] |
NUT
|
|
| 21. |
2181-4133D44
|
[2] |
ADAPTER
|
|
| 24. |
410114-00088
|
[1] |
|
|
| 25. |
S5102703
|
[2] |
WASHER
|
|
| 26. |
DS2023806
|
[1] |
|
|
| 27. |
DS2023747
|
[2] |
|
|
| 3. |
410114-00087
|
[1] |
|
|
| 4. |
S2215766
|
[8] |
BOLT
|
|
| 5. |
S5110703
|
[8] |
WASHER
|
|
| 6. |
2180-1026D19
|
[2] |
O-RING
|
|
| 7. |
S2215566
|
[8] |
BOLT;SOCKET
|
|
| 8. |
S8000111
|
[6] |
O-RING
|
|
