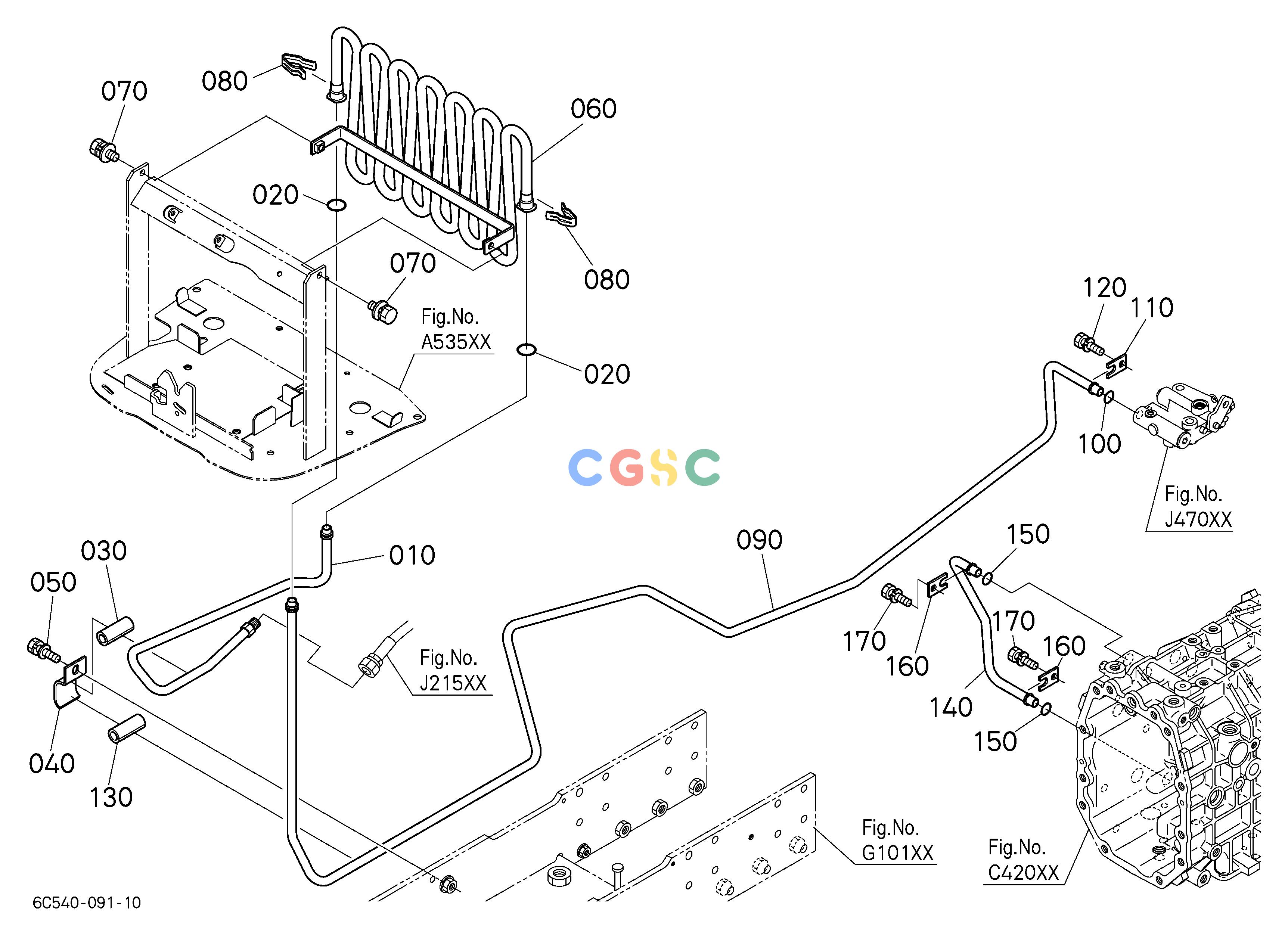

久保田零件查询J24000 HYDRAULIC OIL LINE (OIL COOLER) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54039310
|
[1] |
PIPE(PS-OC)
|
0.6820(lbs); 0.310
|
| 020. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
6C14039250
|
[1] |
CUSHION
|
0.0308(lbs); 0.014
|
| 040. |
6C20039240
|
[1] |
CLAMP
|
0.1650(lbs); 0.075
|
| 050. |
0113551030
|
[1] |
BOLT,W SEMS
|
0.0440(lbs); 0.020
|
| 060. |
6C54039610
|
[1] |
PIPE(OIL COOLER)
|
2.9700(lbs); 1.350
|
| 070. |
0112550820
|
[2] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 080. |
6A71039660
|
[2] |
SPRING,OIL COOLER
|
0.0154(lbs); 0.007
|
| 080. |
6A71039662
|
[2] |
SPRING,OIL COOLER
|
0.0154(lbs); 0.007
|
| 090. |
6C54039620
|
[1] |
PIPE(OC-IPV)
|
1.5400(lbs); 0.700
|
| 100. |
0481600120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
6A71039672
|
[1] |
STOPPER,PIPE
|
0.0440(lbs); 0.020
|
| 120. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 130. |
6C14039250
|
[1] |
CUSHION
|
0.0308(lbs); 0.014
|
| 140. |
6C20039630
|
[1] |
PIPE
|
0.2640(lbs); 0.120
|
| 150. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
6A71039672
|
[2] |
STOPPER,PIPE
|
0.0440(lbs); 0.020
|
| 170. |
0112350816
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
