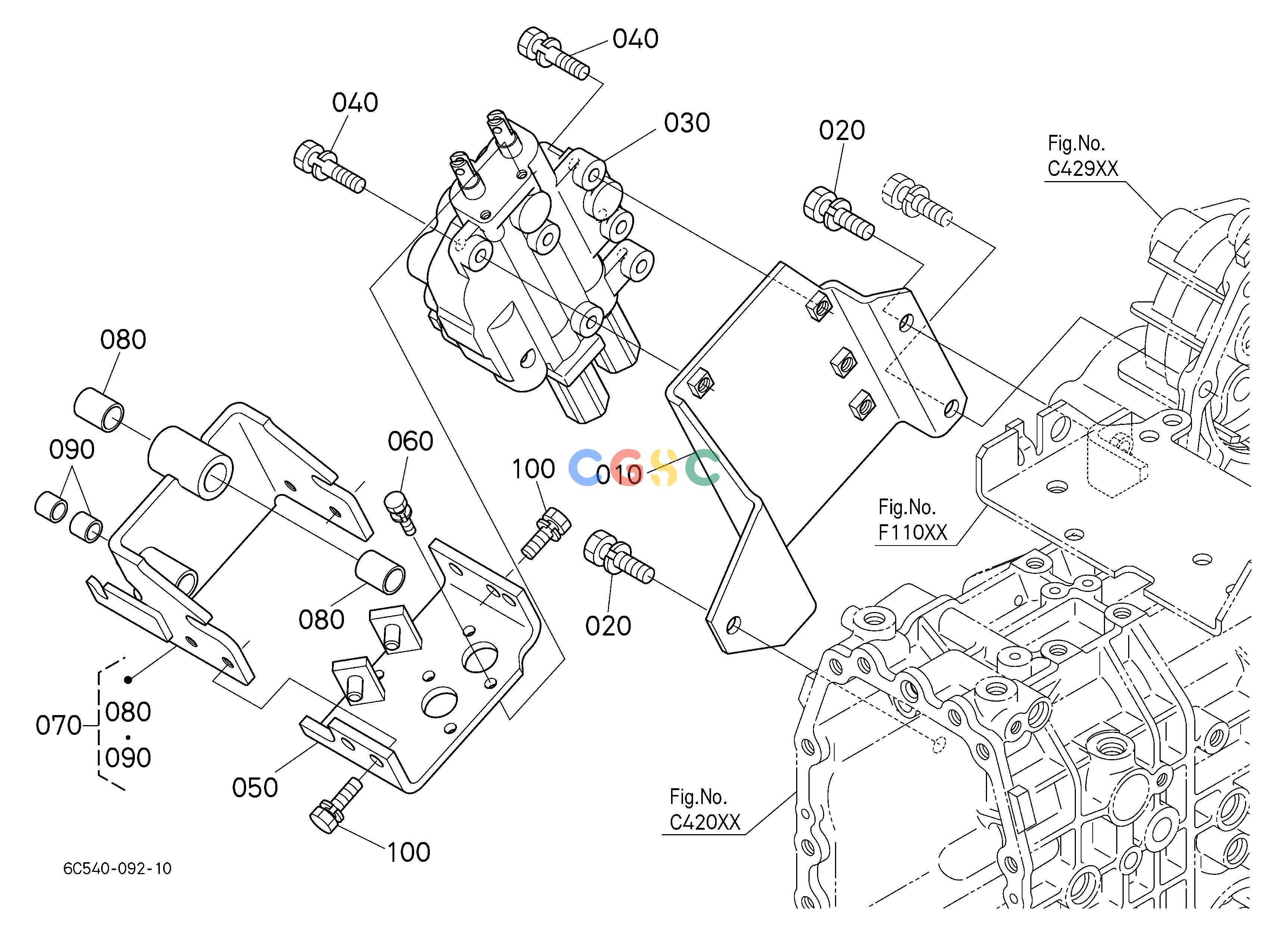

久保田零件查询J28000 LOADER VALVE PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
353 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43038112
|
[1] |
BASE(LOADER VALVE)
|
3.0690(lbs); 1.395
|
| 020. |
0112351025
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 030. |
YW54400102
|
[1] |
ASSY VALVE,CONTROL
|
10.6480(lbs); 4.840
|
| 040. |
0112350835
|
[4] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
6C30038126
|
[1] |
STAY,LOADER LEVER
|
1.3420(lbs); 0.610
|
| 060. |
0102350616
|
[4] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 070. |
6C30038197
|
[1] |
ASSY BRACKET,LEVER
|
2.2374(lbs); 1.017
|
| 080. |
0851101620
|
[2] |
BUSH
|
0.0176(lbs); 0.008
|
| 090. |
0851101212
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 100. |
0112350820
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
