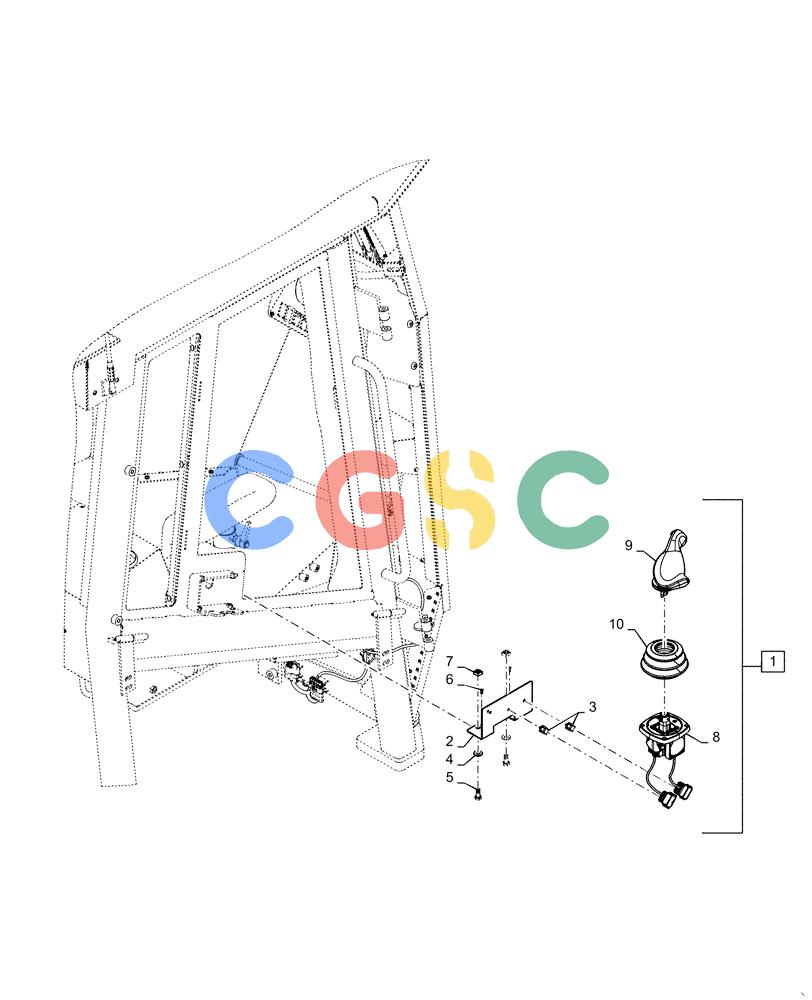

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (55.512.CL[03]) - JOYSTICK WITHOUT THUMBWHEEL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47387251 | [1] | JOYSTICK | BURDozer Blade Controls, Incl 8 - 10 |
| 2. | 47429724 | [1] | PLATE | BURPainted Plate Harness Mount |
| 3. | 84322203 | [2] | CLIP | BURWire Connector Mounting |
| 4. | 87655046 | [2] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BURM10 10.65 x 23.0 x 2.2 |
| 5. | 614-10025 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8 | CAS Superseded by part number: 11106231 |
| 6. | 336371A1 | [2] | PIN | CASNut Retainer |
| 7. | 309096A1 | [2] | SQUARE NUT | CASSquare 10M - 1.5 W/Retaining CLS Superseded by part number: 229197A1 |
| 8. | 47527312 | [1] | JOYSTICK | BURBase Assembly, Dozer Blade Controls |
| 9. | 47408442 | [1] | JOYSTICK | RACGrip, Dozer Blade Controls |
| 10. | 84370045 | [1] | BOOT | FARJoystick |
