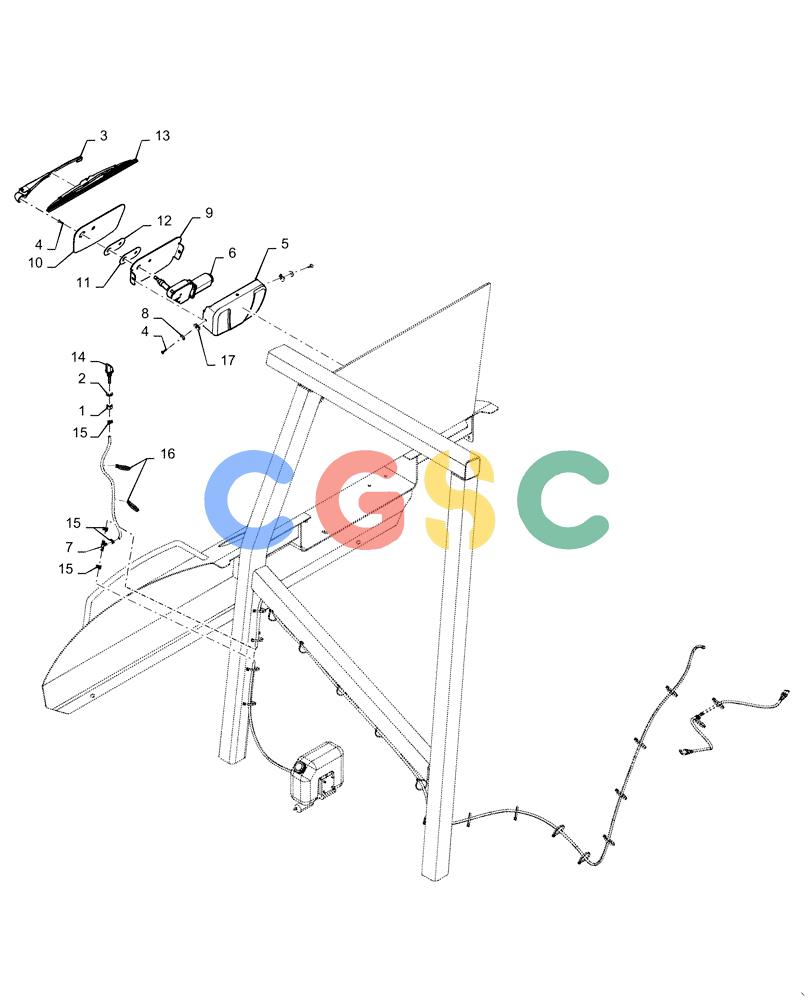

纽荷兰零件查询(D180C LT) - CRAWLER DOZER - TIER 4A (12/13-) (55.518.AH[01]) - CAB REAR WIPER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
817 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 425-106 | [1] | NUT,3/8"-16, Cl 5 | CASHex Superseded by part number: 9628503 |
| 2. | 492-11038 | [1] | LOCK WASHER,3/8" | CAS Superseded by part number: 72187249, 80680 |
| 3. | 87334803 | [1] | WIPER ARM | DUBRear |
| 4. | 87341593 | [4] | SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8 | BURM6 x 20 Oval Countersunk |
| 5. | 87371987 | [1] | DOOR COVER | BURWiper |
| 6. | 87397405 | [1] | WIPER MOTOR | BURRear 24V |
| 7. | 87427778 | [1] | FITTING | CASTee, 3/16 650-850K |
| 8. | 87475892 | [2] | CUP WASHER | BURNylon |
| 9. | 87481889 | [1] | PLATE | BURWiper Mount |
| 10. | 87481890 | [1] | GASKET | BURWiper Mount |
| 11. | 87481892 | [1] | PLATE | BURWiper Mount |
| 12. | 87481893 | [1] | GASKET | BURWiper Mount |
| 13. | 87481895 | [1] | WIPER BLADE | BUR450mm Blade |
| 14. | 284154A1 | [1] | NOZZLE,3/8" - 16 | CASWasher |
| 15. | 87444176 | [4] | HOSE CLIP | BURSpring |
| 16. | L11541 | [2] | CABLE TIE,203.2mm L, Nylon | CASTie 7/8" Superseded by part number: 87000312 |
| 17. | 76047274 | [2] | NUT,M6 x 1 | LEC |
