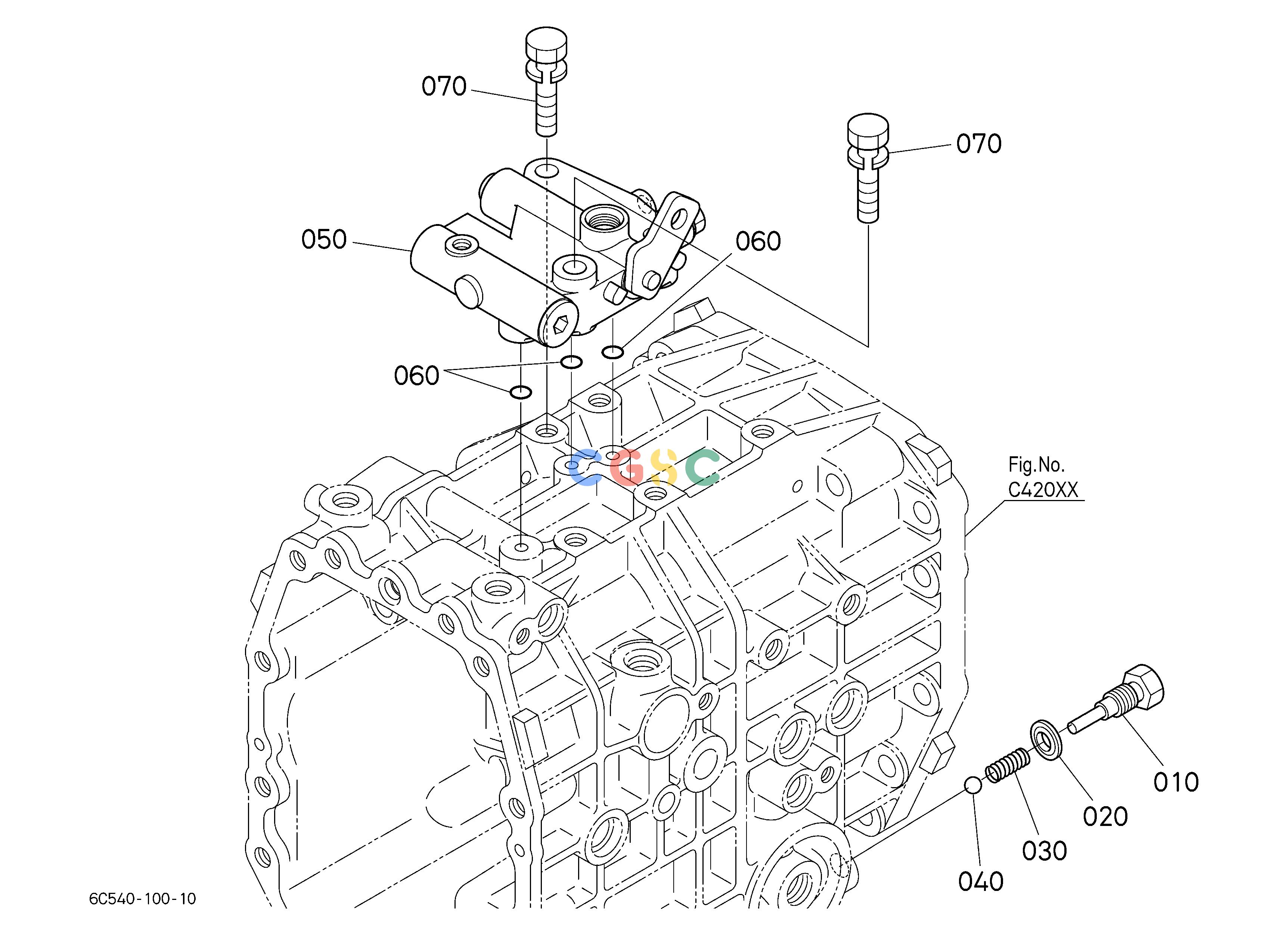

久保田零件查询J47000 PTO VALVE PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05039383
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 020. |
0471701200
|
[1] |
WASHER,SEAL
|
0.0044(lbs); 0.002
|
| 030. |
1685136950
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 040. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 050. |
6C20011206
|
[1] |
ASSY VALVE,PTO
|
1.1880(lbs); 0.540
|
| 050. |
6C20011209
|
[1] |
ASSY VALVE,PTO
|
1.1880(lbs); 0.540
|
| 060. |
0481700100
|
[3] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6C43011240
|
[3] |
BOLT
|
0.0704(lbs); 0.032
|
