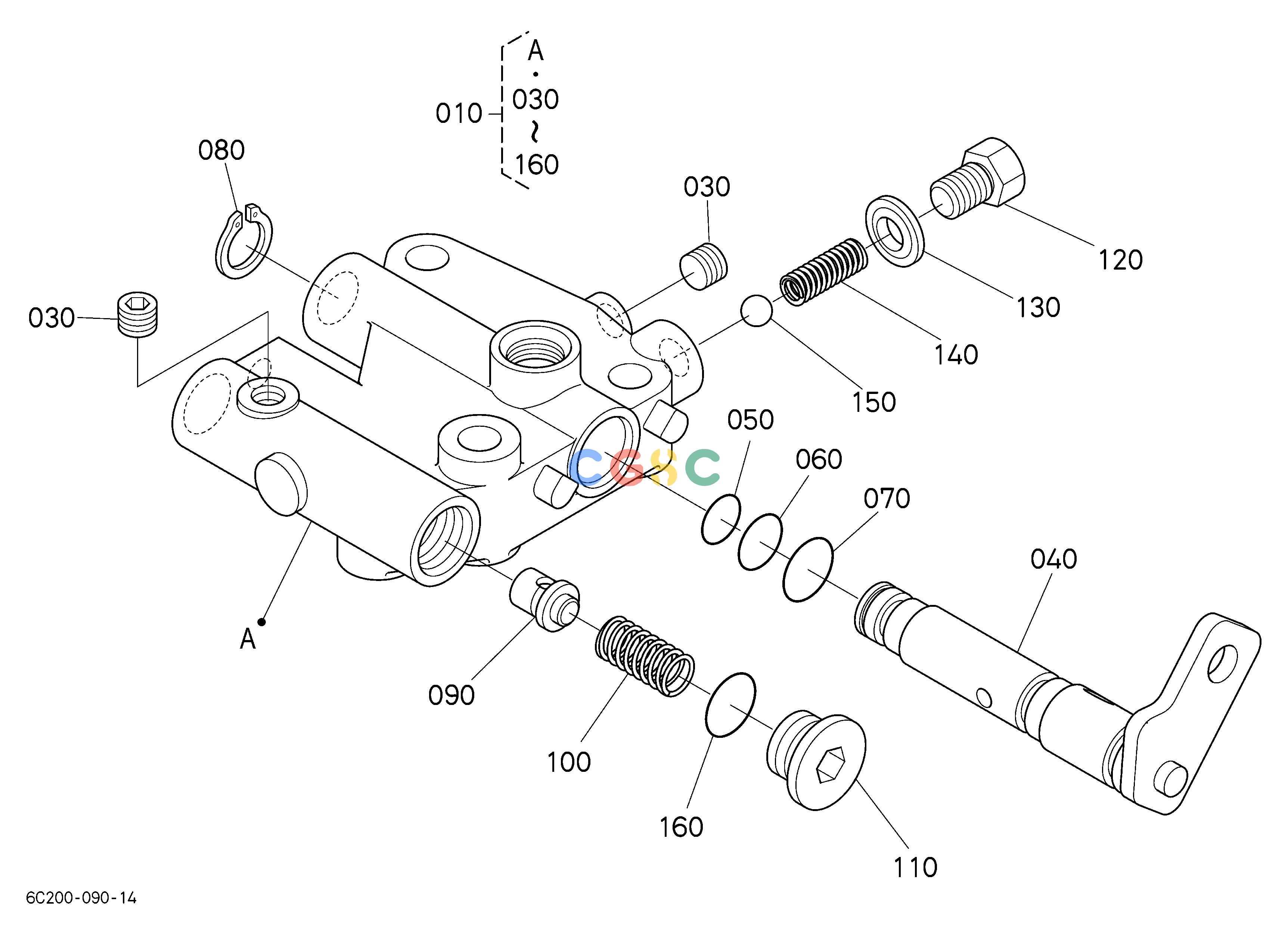

久保田零件查询J47200 PTO VALVE [COMPONENT PARTS] PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
136 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20011206
|
[1] |
ASSY VALVE,PTO
|
1.1880(lbs); 0.540
|
| 010. |
6C20011209
|
[1] |
ASSY VALVE,PTO
|
1.1880(lbs); 0.540
|
| 030. |
RA11162470
|
[2] |
PLUG (R1/8)
|
0.0066(lbs); 0.003
|
| 040. |
6C20011130
|
[1] |
ARM,PTO
|
0.3740(lbs); 0.170
|
| 050. |
0481606100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481600120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600140
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 080. |
0461200140
|
[1] |
CIR-CLIP
|
0.0022(lbs); 0.001
|
| 090. |
TD17058960
|
[1] |
POPPET,L
|
0.0132(lbs); 0.006
|
| 100. |
6636339720
|
[1] |
SPRING(L)
|
0.0066(lbs); 0.003
|
| 110. |
5H60012620
|
[1] |
PLUG,GPF3/8
|
0.0484(lbs); 0.022
|
| 120. |
6C04019223
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 130. |
0471701000
|
[1] |
WASHER,SEAL
|
0.0022(lbs); 0.001
|
| 140. |
6206118260
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 150. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 160. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
