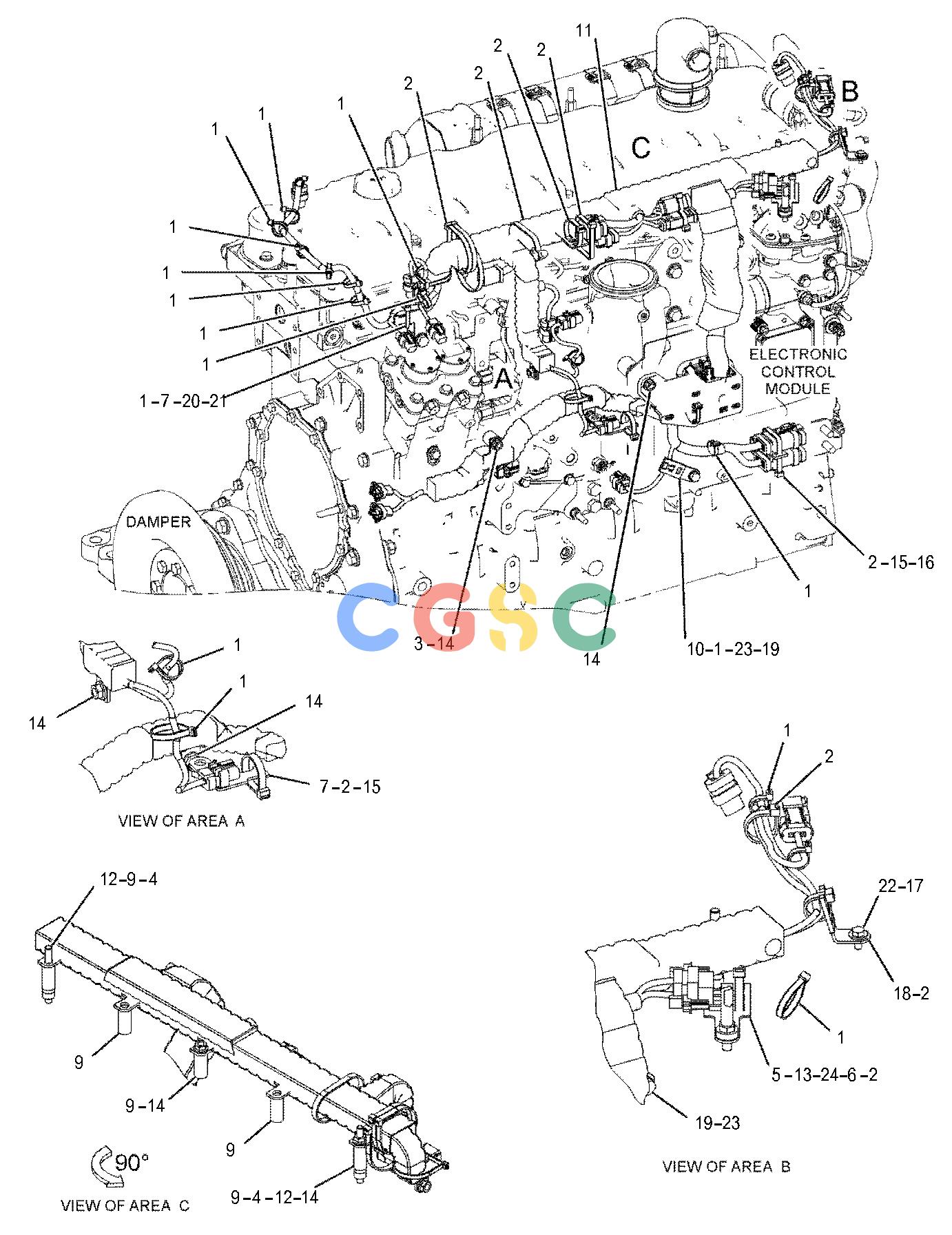

卡特零件查询（725C） 371-8857: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093C | [16] | STRAP-CABLE | |
| 2. | 7K-1181C | [10] | STRAP-CABLE | |
| 3. | 9N-4685 | [1] | BLOCK | |
| 4. | 054-4984 | [2] | SPACER(10X15X8.5-MM THK) | |
| 5. | 178-1780 | [1] | CLIP | |
| 6. | 206-6875 | [1] | CAP-TUBE | |
| 7. | 224-9222 | [2] | BRACKET | |
| 9. | 307-1674 | [5] | SPACER(9X16X36-MM THK) | |
| 10. | 4P-7581 | [1] | CLIP(LADDER) | |
| 11. | 452-4685CY | [1] | HARNESS AS-ENGINE | |
| 12. | 131-0353M | [2] | STUD(M8X1.25X82.75-MM) | |
| 13. | 132-7551 | [1] | SPACER(11X19X6-MM THK) | |
| 14. | 178-3336M | [6] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 15. | 175-7141M | [2] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 16. | 352-3968 | [1] | CLIP(LADDER) | |
| 17. | 4B-4276 | [1] | WASHER(7X16X1.6-MM THK) | |
| 18. | 4P-8134 | [1] | CLIP(LADDER) | |
| 19. | 6V-5217M | [2] | BOLT(M8X1.25X20-MM) | |
| 20. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 21. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 22. | 6V-8836M | [1] | BOLT(M6X1X14-MM) | |
| 23. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 9X-2097M | [1] | STUD(M8X1.25-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
