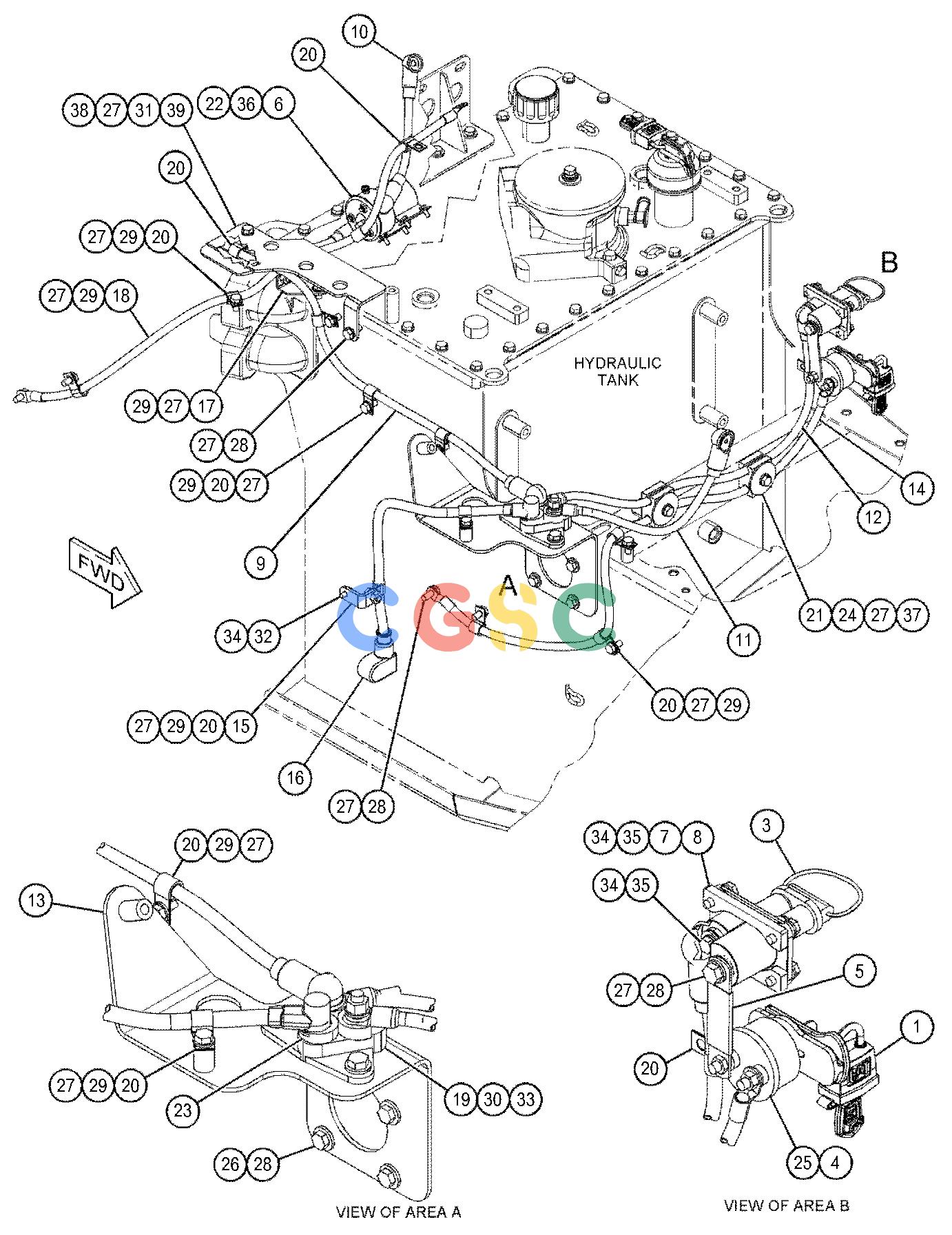

卡特零件查询（725C） 433-6975: WIRING GP-ELECTRONIC CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
415 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 3. | 8S-2634 | [1] | COVER AS | |
| 4. | 9G-2758 | [1] | LOCKOUT-SWITCH | |
| 5. | 487-3407 | [1] | CLIP | |
| 6. | 337-9078Y | [1] | SWITCH GP-MAGNETIC(24-VOLT TO 32-VOLT) | |
| 7. | 342-9671 | [1] | RECEPTACLE AS-AUXILIARY START | |
| 8. | 357-0111 | [2] | PLATE | |
| 9. | 367-1782 | [1] | CABLE AS | |
| | 193-9141 | [1] | COVER-TERMINAL | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 235-2678 | [1] | TERMINAL-RING | |
| | 159-8049E | | CABLE(00-GA, RED)(124-CM) | |
| 10. | 367-1783 | [1] | CABLE AS | |
| | 159-8050E | | CABLE(00-GA, BLACK)(23-CM) | |
| | 037-5197 | [2] | BOOT | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 11. | 367-1787 | [1] | CABLE AS | |
| | 1M-4986 | [1] | TERMINAL-RING(0-GA, 1/2-IN SCREW) | |
| | 5P-0760E | | CABLE(0-GA, RED)(34-CM) | |
| | 6V-2722D | | TUBE-HEAT SHRINK(25.4-MM DIA)(0.1-M) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 030-1709 | [1] | TERMINAL-RING(0-GA, 1/4-IN SCREW) | |
| 12. | 453-3481 | [1] | CABLE AS | |
| | 159-8049E | | CABLE(00-GA, RED)(76-CM) | |
| | 6V-2722D | | TUBE-HEAT SHRINK(25.4-MM DIA)(0.1-M) | |
| | 308-8161 | [1] | COVER-TERMINAL | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 235-2678 | [1] | TERMINAL-RING | |
| 13. | 384-9808 | [1] | PLATE AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 14. | 392-3507 | [1] | CABLE AS | |
| | 159-8050E | | CABLE(00-GA, BLACK)(112-CM) | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 15. | 433-7625 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 16. | 433-7627 | [1] | CABLE AS | |
| | 159-8049E | | CABLE(00-GA, RED)(61-CM) | |
| | 190-3848 | [1] | TERMINAL-RING(00-GA, 1/2-IN SCREW) | |
| | 235-2677 | [1] | TERMINAL-RING | |
| | 308-8161 | [1] | COVER-TERMINAL | |
| 17. | 445-9941 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 18. | 447-5919 | [1] | CABLE AS | |
| | 159-8050E | | CABLE(00-GA, BLACK)(97-CM) | |
| | 235-2678 | [2] | TERMINAL-RING | |
| 19. | 124-5814Y | [1] | BLOCK GP-JUNCTION(BATTERY) | |
| 20. | 263-6342 | [16] | CLIP | |
| 21. | 2G-8767 | [2] | WASHER(10.5X60X3-MM THK) | |
| 22. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 23. | 5G-6505 | [3] | WASHER(25X38X14-MM THK) | |
| 24. | 6G-2256 | [2] | CLAMP | |
| 25. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 26. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4136M | [7] | BOLT(M10X1.5X25-MM) | |
| 29. | 8T-4137M | [14] | BOLT(M10X1.5X20-MM) | |
| 30. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 31. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 32. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 33. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 35. | 8T-4908M | [5] | BOLT(M8X1.25X25-MM) | |
| 36. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 37. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 38. | 450-0998 | [1] | SPACER(13.5X25X12-MM THK) | |
| 39. | 480-3540 | [1] | PLATE | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
