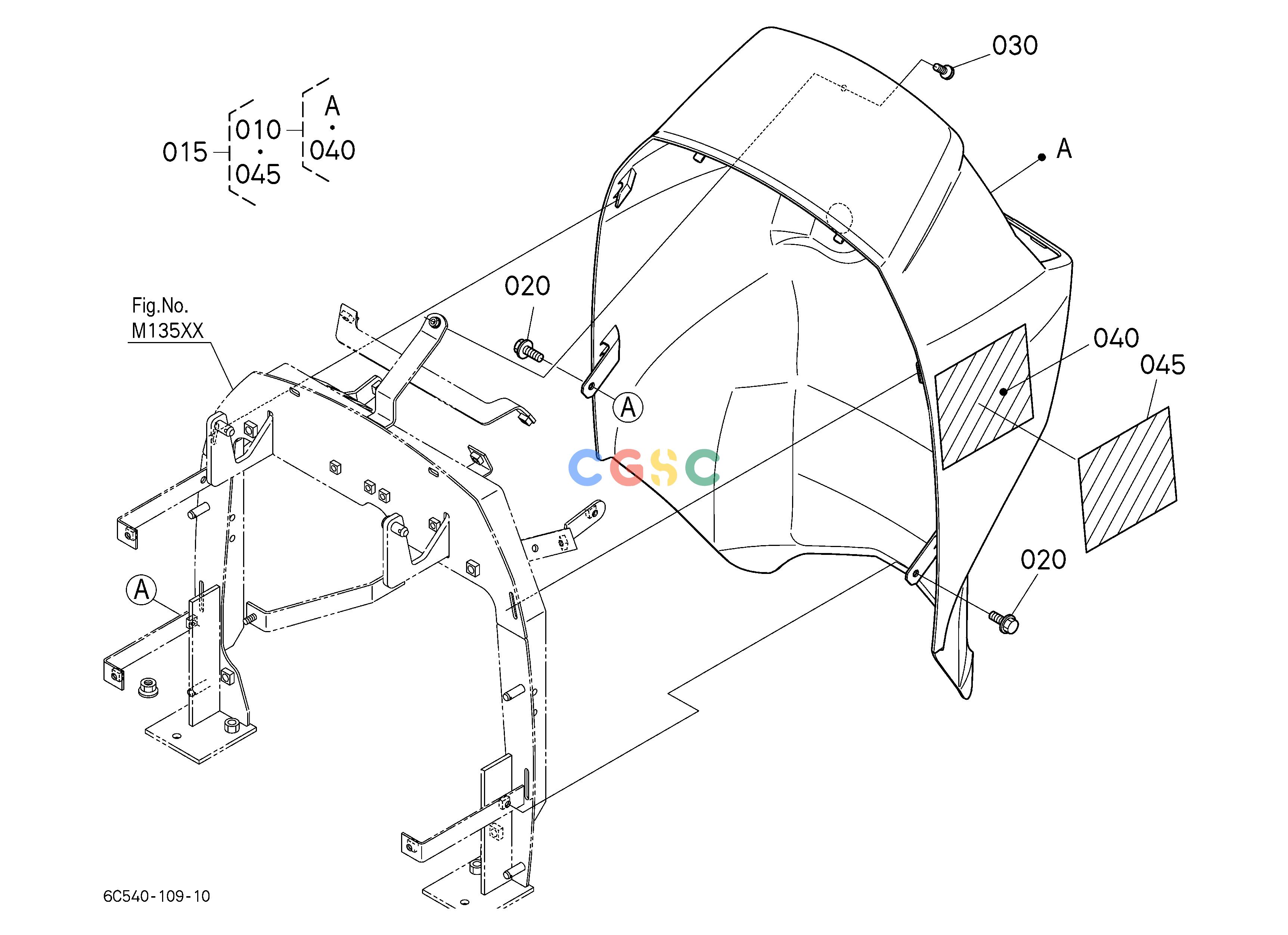

久保田零件查询M11300 PANEL COVER HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
302 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54099300
|
[1] |
COVER,KIT A(PANEL)
|
2.9040(lbs); 1.320
|
| 015. |
6C54199300
|
[1] |
COVER,KIT B(PANEL,B)
|
2.9040(lbs); 1.320
|
| 020. |
0102750616
|
[2] |
BOLT,W SEMS(LARGE WASHER)
|
0.0220(lbs); 0.010
|
| 020. |
0102750614
|
[2] |
BOLT,W SEMS(LARGE WASHER)
|
0.0440(lbs); 0.020
|
| 030. |
T127043072
|
[1] |
SCREW,FLAT HEAD(PHILLIPS)
|
0.0044(lbs); 0.002
|
| 040. |
6C43049650
|
[1] |
LABEL(START CAUTION)
|
0.0110(lbs); 0.005
|
| 040. |
6C43049652
|
[1] |
LABEL(START CAUTION)
|
0.0110(lbs); 0.005
|
| 045. |
6C43149650
|
[1] |
LABEL(START CAUTION)
|
0.0132(lbs); 0.006
|
