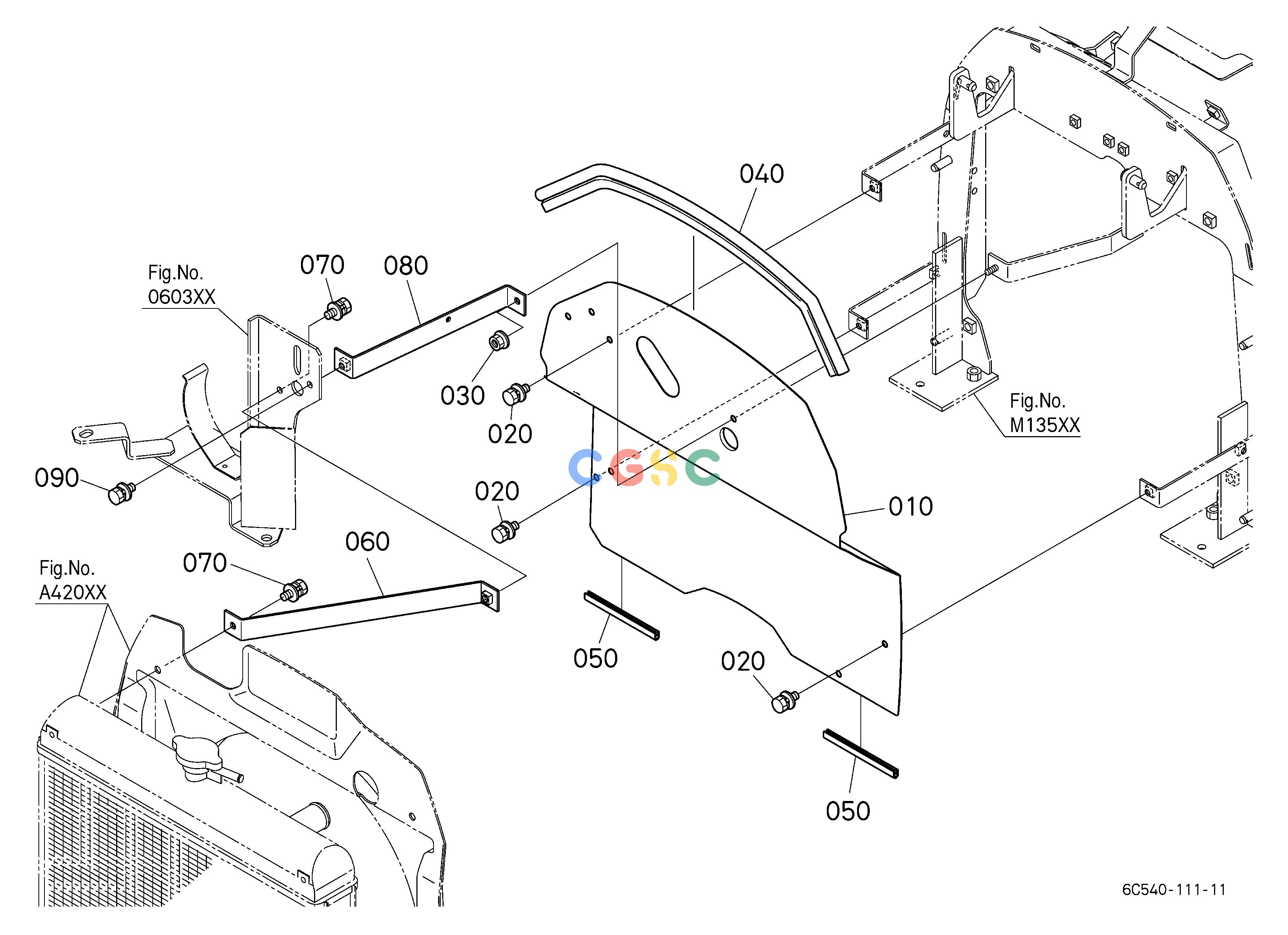

久保田零件查询M13000 SHUTTER PLATE HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54054553
|
[1] |
PLATE(SHUTTER)
|
2.9920(lbs); 1.360
|
| 010. |
6C54054554
|
[1] |
PLATE(SHUTTER)
|
2.9920(lbs); 1.360
|
| 020. |
0102550616
|
[3] |
BOLT
|
0.0110(lbs); 0.005
|
| 030. |
0202150060
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 040. |
6C54054212
|
[1] |
TRIM,ASSY(470)
|
0.1980(lbs); 0.090
|
| 050. |
6A32054370
|
[2] |
TRIM,SKIRT
|
0.0176(lbs); 0.008
|
| 060. |
6C54054250
|
[1] |
STAY(RADIATOR)
|
0.2816(lbs); 0.128
|
| 070. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 080. |
6C54054272
|
[1] |
STAY(PILLAR)
|
0.2376(lbs); 0.108
|
| 090. |
0102550616
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
