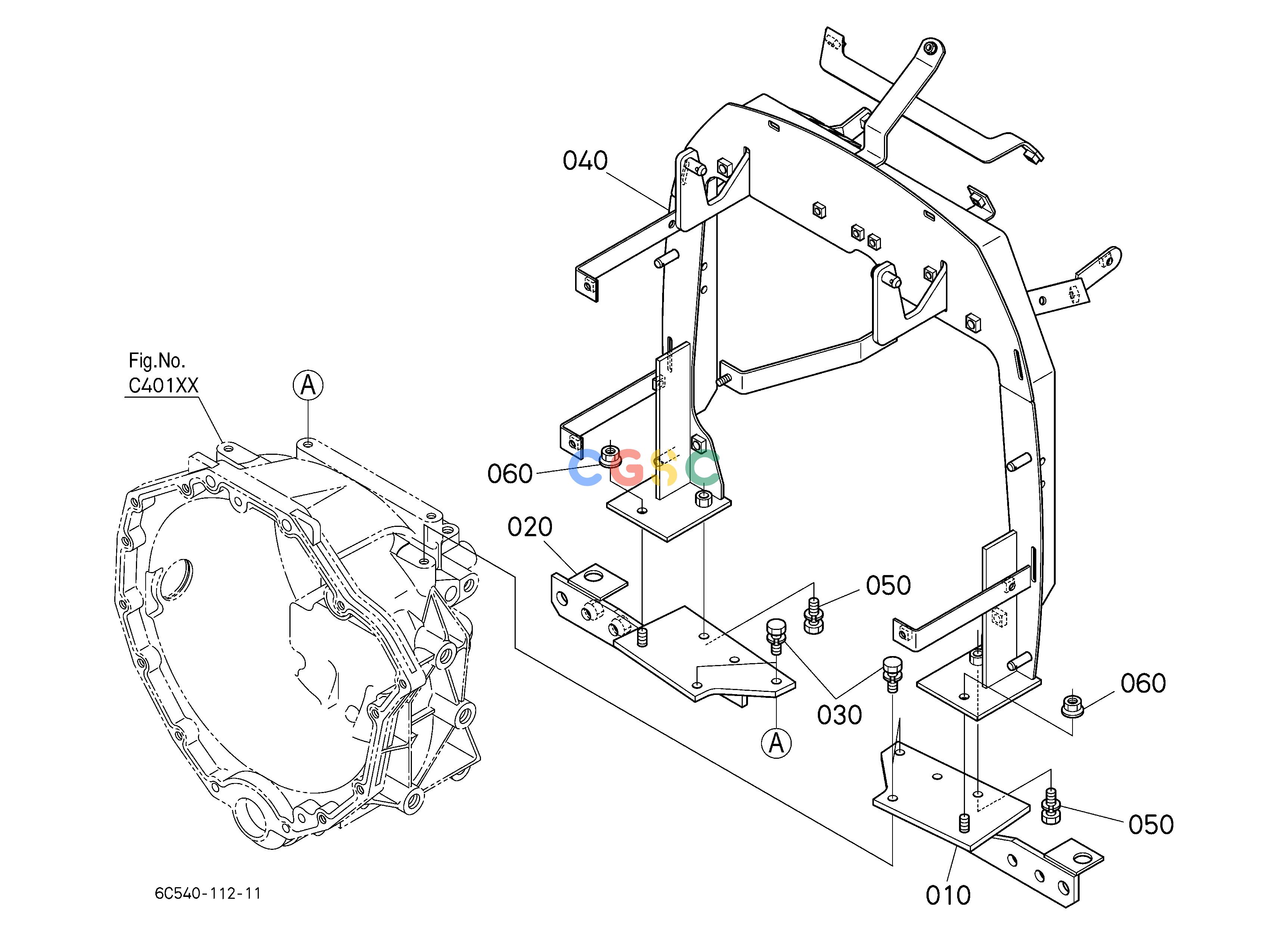

久保田零件查询M13500 CENTER PILLAR HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54054230
|
[1] |
STAY(PILLAR,LH)
|
1.8700(lbs); 0.850
|
| 010. |
6C54054232
|
[1] |
STAY(PILLAR,LH)
|
1.8700(lbs); 0.850
|
| 020. |
6C54054240
|
[1] |
STAY(PILLAR,RH)
|
1.8920(lbs); 0.860
|
| 020. |
6C54054242
|
[1] |
STAY(PILLAR,RH)
|
1.8920(lbs); 0.860
|
| 030. |
0112350825
|
[4] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 040. |
6C54054224
|
[1] |
PILLAR(CENTER)
|
10.9560(lbs); 4.980
|
| 050. |
0112350825
|
[2] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 060. |
0212150080
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
