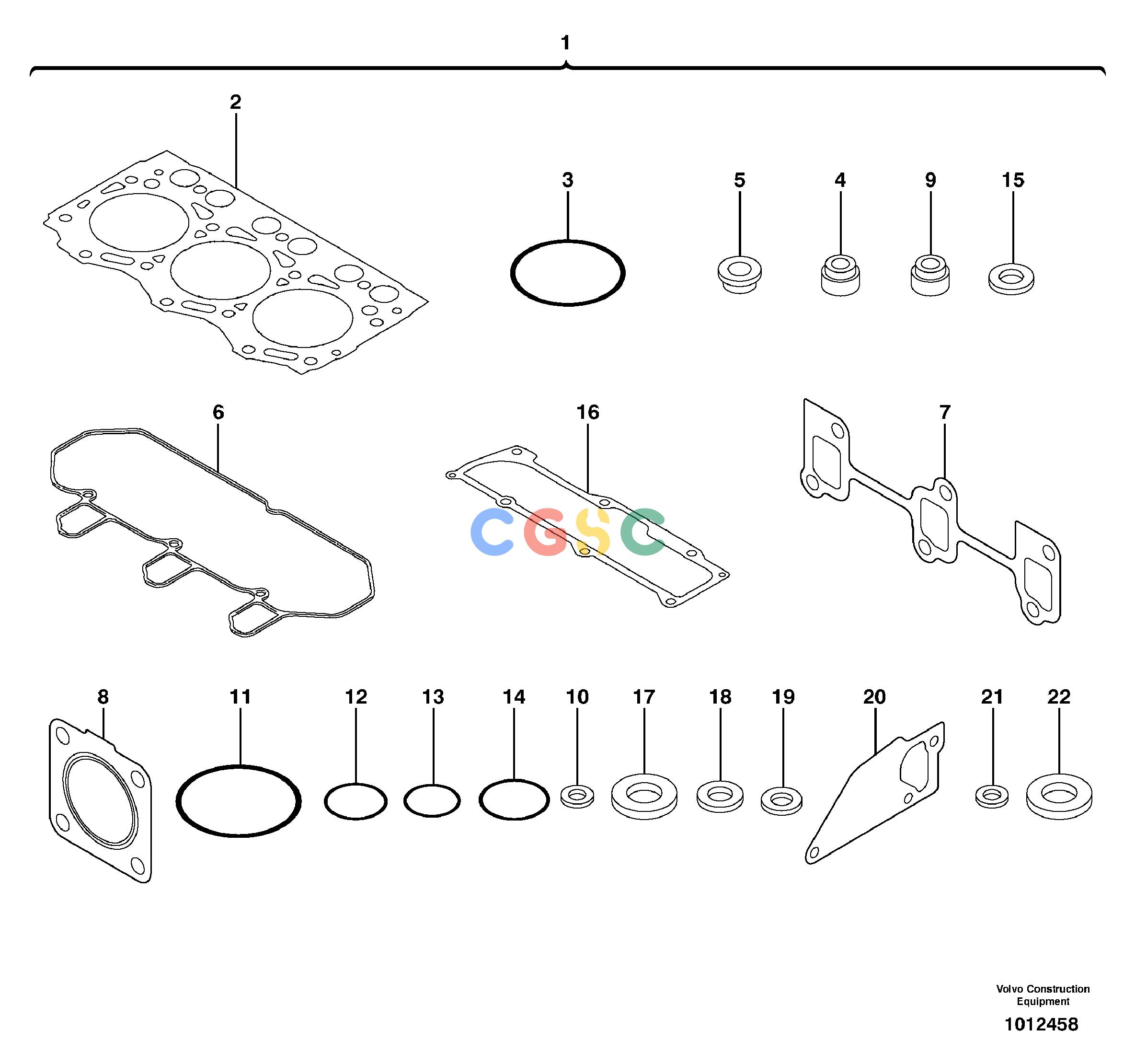

沃尔沃零件查询ECR28 Engine gasket kitTYPE 60111801174-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
205 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713294
|
[1] |
Gasket kit
|
|
| 2. |
VOE11713295
|
[1] |
Cylinder head gasket
|
|
| 3. |
VOE11713305
|
[1] |
O-ring
|
|
| 4. |
VOE11713306
|
[3] |
Seal
|
|
| 5. |
VOE11713307
|
[3] |
Protection
|
|
| 6. |
VOE11713296
|
[1] |
Gasket
|
|
| 7. |
VOE11713297
|
[1] |
Gasket
|
|
| 8. |
VOE11713298
|
[1] |
Gasket
|
|
| 9. |
VOE11713308
|
[3] |
Seal
|
|
| 10. |
VOE11714476
|
[4] |
Sealing washer
|
|
| 11. |
VOE11714371
|
[2] |
O-ring
|
|
| 12. |
VOE11713304
|
[1] |
O-ring
|
|
| 13. |
VOE11713309
|
[1] |
O-ring
|
|
| 14. |
VOE11713310
|
[3] |
O-ring
|
|
| 15. |
VOE11713311
|
[6] |
Gasket
|
|
| 16. |
VOE11713299
|
[1] |
Gasket
|
|
| 17. |
VOE11713312
|
[1] |
Seal
|
|
| 18. |
VOE11713313
|
[4] |
Seal
|
|
| 19. |
VOE11713314
|
[3] |
Gasket
|
|
| 20. |
VOE11713315
|
[1] |
Gasket
|
|
| 21. |
VOE11714477
|
[1] |
Gasket
|
|
| 22. |
VOE11714478
|
[2] |
Gasket
|
|
