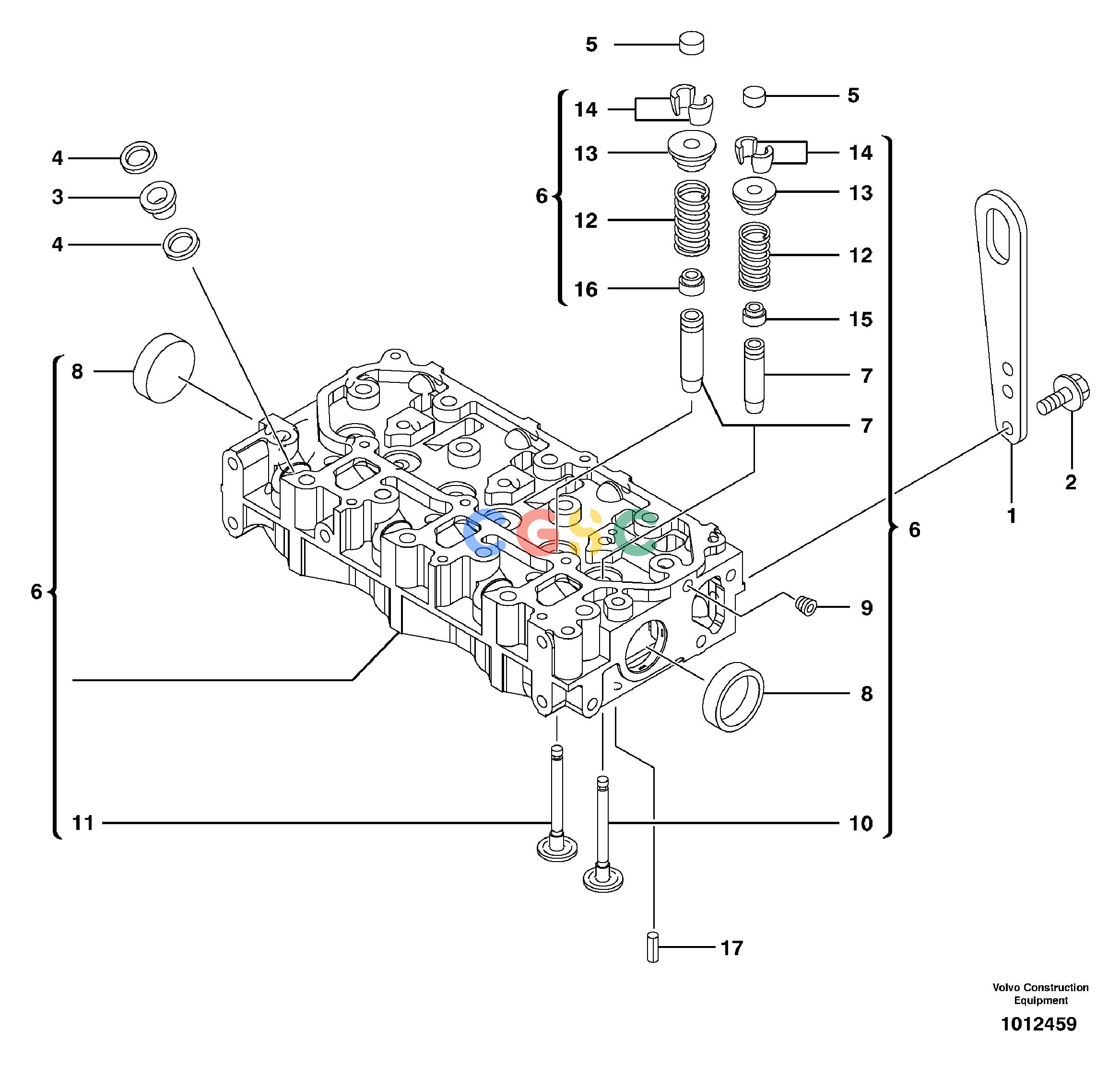

沃尔沃零件查询ECR28 Cylinder headTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714378
|
[1] |
Lifting bracket
|
|
| 2. |
VOE14525410
|
[2] |
Bolt
|
|
| 3. |
VOE11713307
|
[3] |
Protection
|
|
| 4. |
VOE11713311
|
[6] |
Gasket
|
|
| 5. |
VOE11713536
|
[6] |
Cap
|
|
| 6. |
VOE11713377
|
[1] |
Cylinder head
|
|
| 7. |
|
[6] |
Giude
|
|
| 8. |
|
[2] |
Plug
|
|
| 9. |
|
[1] |
Plug
|
|
| 10. |
VOE11713534
|
[3] |
Valve
|
|
| 11. |
VOE11713535
|
[3] |
Valve
|
|
| 12. |
|
[6] |
Spring
|
|
| 13. |
|
[6] |
Washer
|
|
| 14. |
VOE11713537
|
[12] |
Valve sleeve
|
|
| 15. |
VOE11713306
|
[3] |
Seal
|
|
| 16. |
VOE11713308
|
[3] |
Seal
|
|
| 17. |
VOE11714387
|
[2] |
Spring pin
|
|
