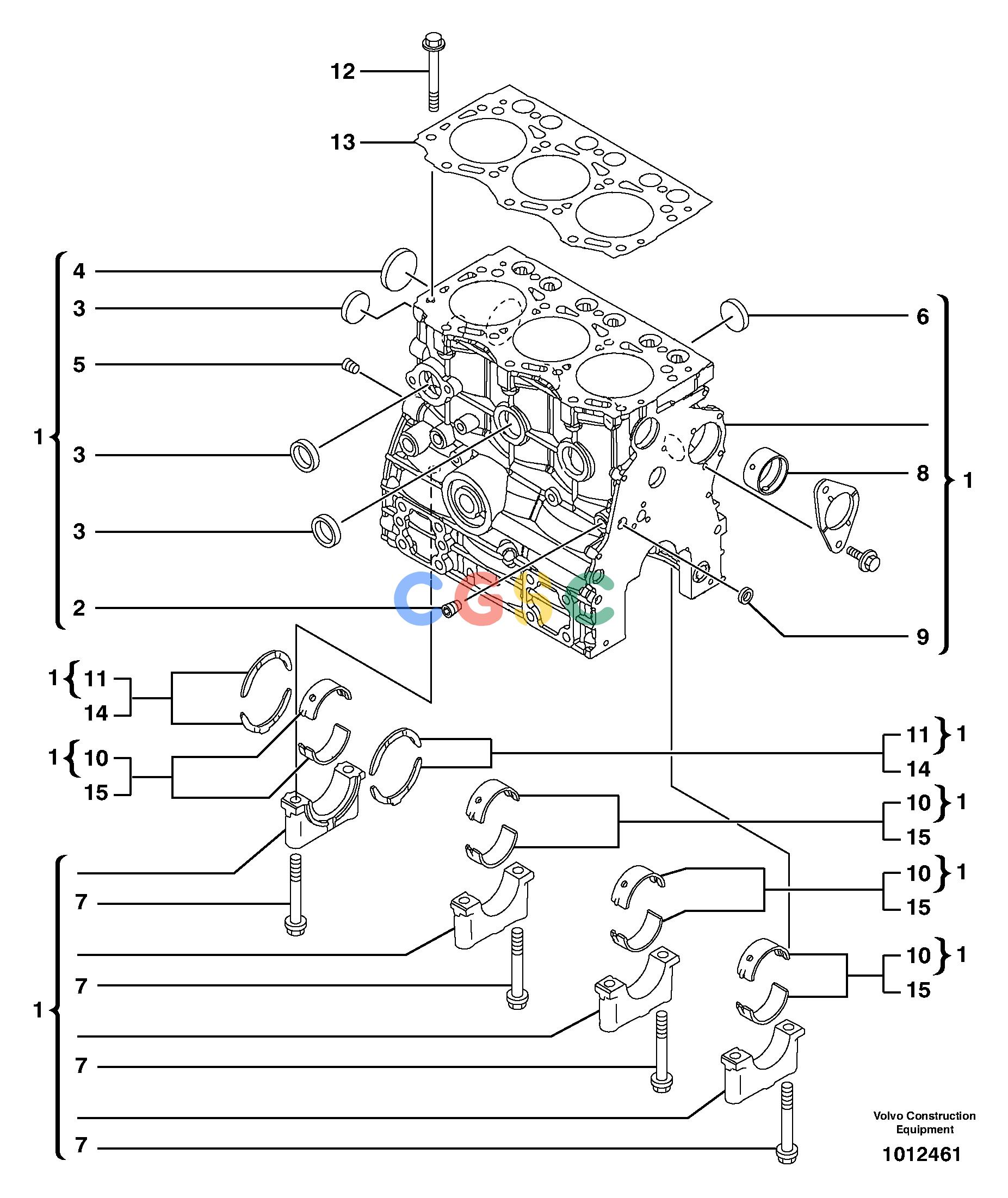

沃尔沃零件查询ECR28 Cylinder blockTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713316
|
[1] |
Cylinder block
|
|
| 2. |
VOE11713317
|
[1] |
Plug
|
|
| 3. |
VOE11713318
|
[4] |
Plug
|
|
| 4. |
VOE11713319
|
[1] |
Plug
|
|
| 5. |
VOE11713320
|
[1] |
Plug
|
|
| 6. |
VOE11713322
|
[3] |
Plug
|
|
| 7. |
VOE11713327
|
[8] |
Bolt
|
|
| 8. |
VOE11713328
|
[1] |
Camshaft bushing
|
|
| 9. |
VOE11713329
|
[1] |
Plug
|
|
| 10. |
VOE11713330
|
[4] |
Main bearing shell
|
STD SZ
|
| 11. |
VOE11713331
|
[2] |
Thrust bearing
|
STD SZ
|
| 12. |
VOE11713332
|
[14] |
Bolt
|
|
| 13. |
VOE11713295
|
[1] |
Cylinder head gasket
|
|
| 14. |
VOE11713333
|
[2] |
Thrust bearing
|
0,25mm/0.0098in
|
| 15. |
VOE11713334
|
[4] |
Bushing half
|
0,25mm/0.0098in
|
