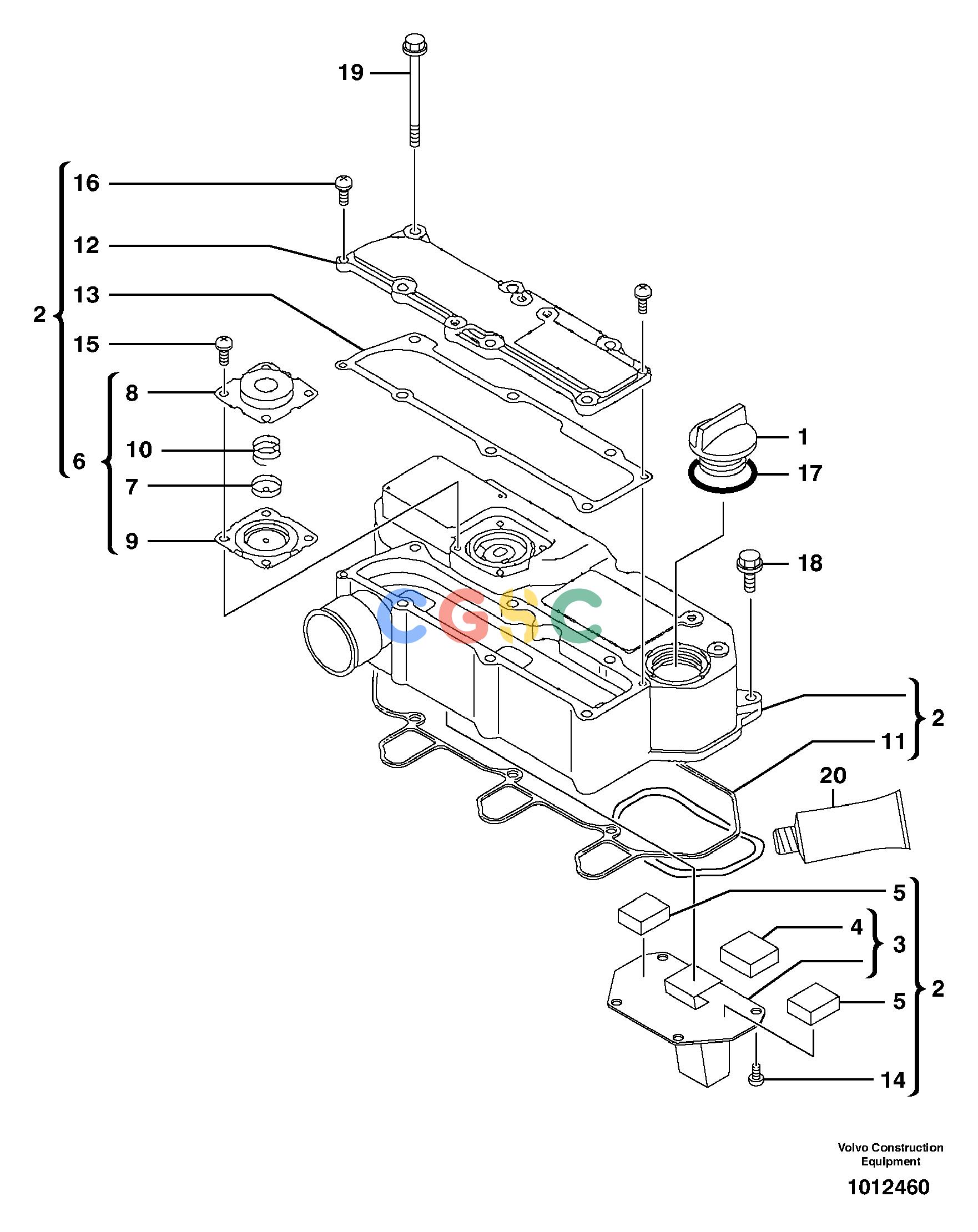

沃尔沃零件查询ECR28 Valve coverTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
792 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11714383
|
[1] |
Cap
|
|
| 2. |
VOE11713382
|
[1] |
Valve cover
|
|
| 3. |
VOE11713403
|
[1] |
Plate
|
|
| 4. |
VOE11713404
|
[1] |
Baffle
|
|
| 5. |
VOE11713404
|
[2] |
Baffle
|
|
| 6. |
VOE11713383
|
[1] |
Diaphragm housing
|
|
| 7. |
|
[1] |
Diaphragm
|
ORDER ITEM NO 6
|
| 8. |
|
[1] |
Cover
|
ORDER ITEM NO 6
|
| 9. |
|
[1] |
Plate
|
ORDER ITEM NO 6
|
| 10. |
|
[1] |
Spring
|
ORDER ITEM NO 6
|
| 11. |
VOE11713296
|
[1] |
Gasket
|
|
| 12. |
VOE11713402
|
[1] |
Cover
|
|
| 13. |
VOE11713299
|
[1] |
Gasket
|
|
| 14. |
SA8210-08850
|
[4] |
Screw
|
|
| 15. |
SA8210-08850
|
[4] |
Screw
|
|
| 16. |
VOE11713405
|
[2] |
Screw
|
|
| 17. |
VOE11714371
|
[1] |
O-ring
|
|
| 18. |
VOE14521577
|
[3] |
Bolt
|
|
| 19. |
VOE11713385
|
[6] |
Bolt
|
|
| 20. |
VOE14543857
|
[1] |
Gasket
|
|
