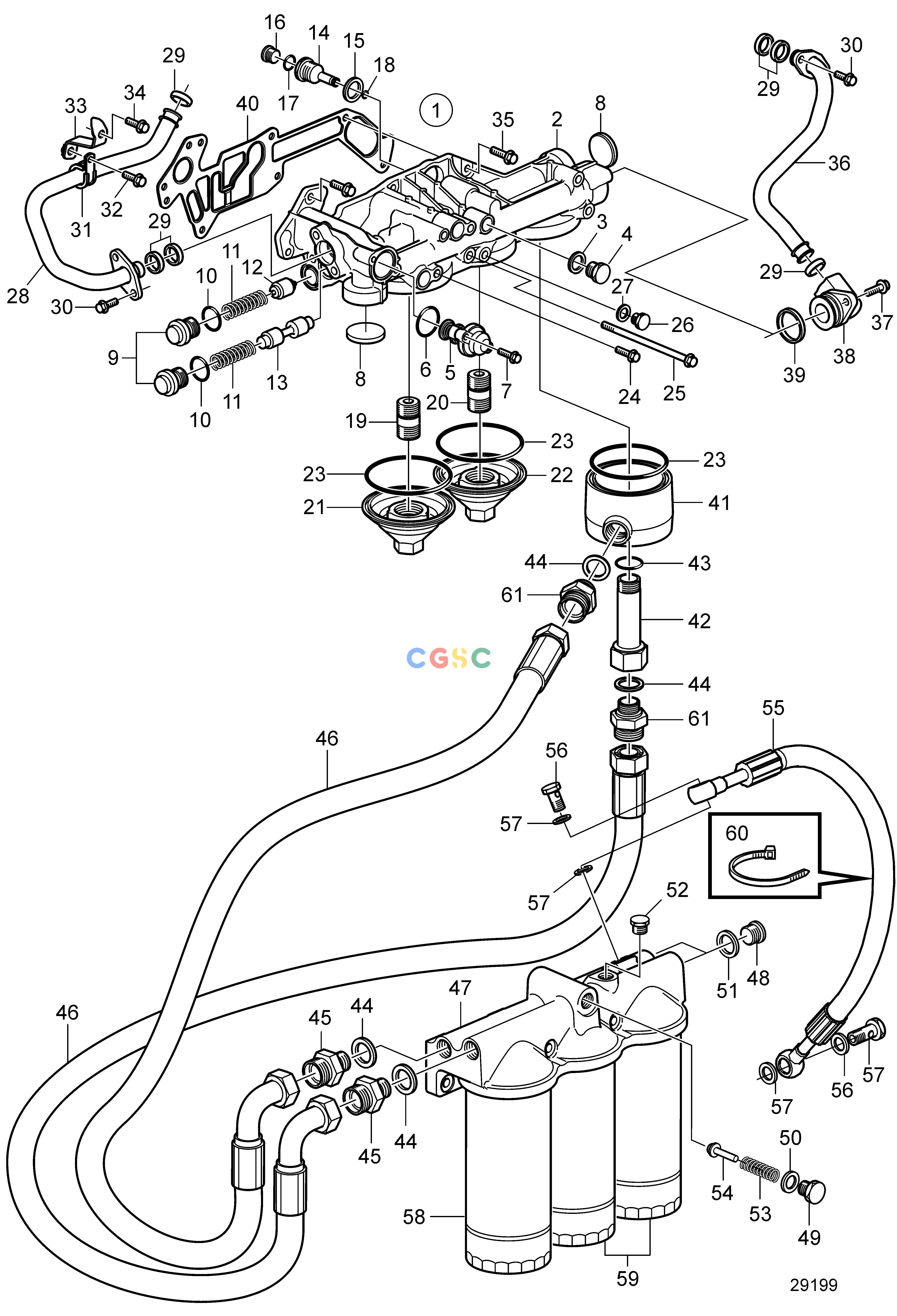

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Lubricating SystemOil Filter Housing and Oil Filter,Remote Mounting SN2013606820-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22211028
|
[1] |
Oil filter housing
|
|
| 2. |
|
|
|
|
| 3. |
11998
|
[1] |
Gasket
|
|
| 4. |
960632
|
[1] |
Plug
|
|
| 5. |
20903074
|
[1] |
Thermostat
|
|
| 6. |
949659
|
[1] |
O-ring
|
|
| 7. |
984727
|
[2] |
Flange screw
|
|
| 8. |
20478143
|
[2] |
Expansion plug
|
|
| 9. |
20580032
|
[2] |
Plug
|
|
| 10. |
977004
|
[2] |
O-ring
|
|
| 11. |
20464676
|
[2] |
Spring
|
|
| 12. |
20440779
|
[1] |
Valve cone
|
|
| 13. |
20440781
|
[1] |
Piston
|
|
| 14. |
3835956
|
[1] |
Nipple
|
|
| 15. |
947627
|
[1] |
Gasket
|
|
| 16. |
20568779
|
[1] |
Plug
|
|
| 17. |
968559
|
[1] |
O-ring
|
|
| 18. |
976030
|
[1] |
O-ring
|
|
| 19. |
20542058
|
[1] |
Nipple
|
|
| 20. |
20542060
|
[1] |
Nipple
|
|
| 21. |
21145973
|
[1] |
Cover
|
|
| 22. |
21145970
|
[1] |
Cover
|
|
| 23. |
993235
|
[3] |
X-ring
|
|
| 24. |
994446
|
[1] |
Flange screw
|
|
| 25. |
984749
|
[1] |
Flange screw
|
|
| 26. |
960628
|
[1] |
Plug
|
|
| 27. |
947281
|
[1] |
Gasket
|
|
| 28. |
21599161
|
[1] |
Pipe
|
|
| 29. |
471626
|
[6] |
Rubber moulding
|
|
| 30. |
994446
|
[4] |
Flange screw
|
|
| 31. |
1545432
|
[1] |
Attaching clamp
|
|
| 32. |
984733
|
[1] |
Flange screw
|
|
| 33. |
|
|
|
|
| 34. |
984742
|
[1] |
Flange screw
|
|
| 35. |
984735
|
[8] |
Flange screw
|
|
| 36. |
21978004
|
[1] |
Oil return pipe
|
Replaced by 78467596
|
| 36. |
78467596
|
[1] |
Oil return pipe
|
|
| 37. |
984735
|
[2] |
Flange screw
|
|
| 38. |
20741000
|
[1] |
Connector
|
|
| 39. |
21780376
|
[1] |
Sealing ring
|
|
| 40. |
20787167
|
[1] |
Gasket
|
|
| 41. |
15046827
|
[1] |
Cover
|
|
| 42. |
11423710
|
[1] |
Reduction nipple
|
|
| 43. |
944126
|
[1] |
O-ring
|
|
| 44. |
982509
|
[2] |
Gasket
|
|
| 45. |
17222136
|
[4] |
Adapter
|
|
| 46. |
21169079
|
[2] |
Hose
|
|
| 47. |
17427991
|
[1] |
Oil filter housing
|
|
| 48. |
966147
|
[2] |
Plug
|
|
| 49. |
17425684
|
[1] |
Plug
|
|
| 50. |
949410
|
[1] |
O-ring
|
|
| 51. |
982508
|
[2] |
Gasket
|
|
| 52. |
984793
|
[1] |
Plug
|
|
| 53. |
466653
|
[1] |
Compression spring
|
|
| 54. |
471085
|
[1] |
Valve cone
|
|
| 55. |
21382062
|
[1] |
Oil hose
|
|
| 56. |
991048
|
[1] |
Hollow screw
|
|
| 57. |
20852764
|
[2] |
Sealing ring
|
|
| 58. |
21707132
|
[1] |
Oil filter
|
|
| 59. |
21707133
|
[2] |
Oil filter
|
|
| 60. |
948211
|
[1] |
Cable tie
|
|
| 61. |
11158220
|
[2] |
Adapter
|
|
