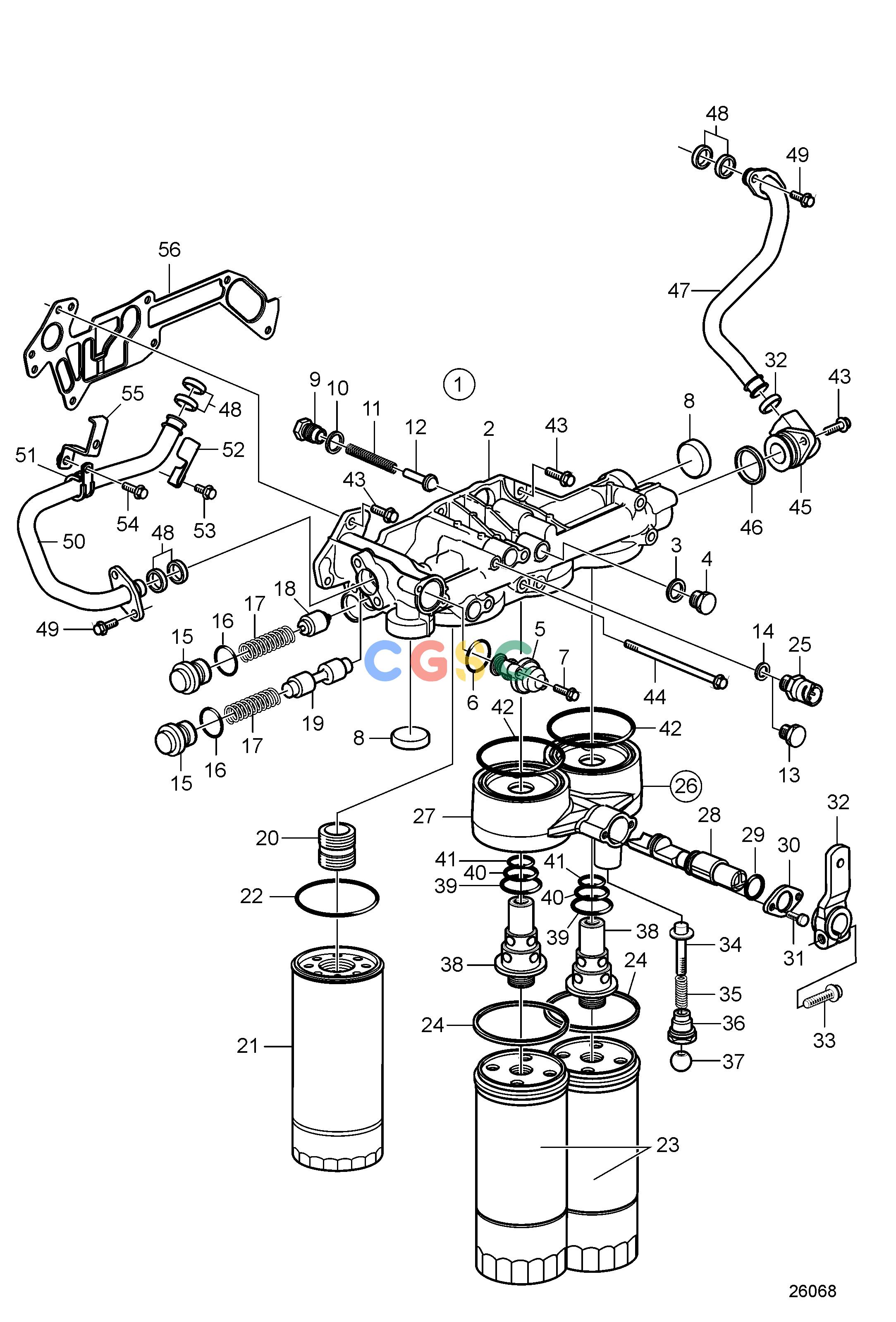

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Lubricating SystemOil Filter Housing with Switchable ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
603 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21505066
|
[1] |
Oil filter housing
|
|
| 2. |
|
|
|
|
| 3. |
11998
|
[1] |
Gasket
|
|
| 4. |
960632
|
[1] |
Plug
|
|
| 5. |
20903074
|
[1] |
Thermostat
|
|
| 6. |
949659
|
[1] |
O-ring
|
|
| 7. |
984727
|
[2] |
Flange screw
|
|
| 8. |
20478143
|
[2] |
Expansion plug
|
|
| 9. |
471598
|
[1] |
Plug
|
|
| 10. |
947627
|
[1] |
Gasket
|
|
| 11. |
466653
|
[1] |
Compression spring
|
|
| 12. |
471085
|
[1] |
Valve cone
|
|
| 13. |
960628
|
[1] |
Plug
|
|
| 14. |
947281
|
[1] |
Gasket
|
|
| 15. |
20580032
|
[2] |
Plug
|
|
| 16. |
977004
|
[2] |
O-ring
|
|
| 17. |
20464676
|
[2] |
Spring
|
|
| 18. |
20440779
|
[1] |
Valve cone
|
|
| 19. |
20440781
|
[1] |
Piston
|
|
| 20. |
20542058
|
[1] |
Nipple
|
|
| 21. |
477556
|
[1] |
Oil filter, by-pass
|
|
| 22. |
|
|
|
|
| 23. |
478736
|
[2] |
Oil filter
|
|
| 24. |
|
|
|
|
| 25. |
21302639
|
[1] |
Pressure sensor
|
|
| 26. |
21576833
|
[1] |
Valve housing
|
|
| 27. |
|
|
|
|
| 28. |
3889230
|
[1] |
Selector valve
|
|
| 29. |
949657
|
[1] |
O-ring
|
|
| 30. |
842912
|
[1] |
Flange
|
|
| 31. |
984725
|
[2] |
Flange screw
|
|
| 32. |
964408
|
[1] |
Intermediate lever
|
|
| 33. |
984754
|
[1] |
Flange screw
|
|
| 34. |
3830181
|
[1] |
Dowel
|
|
| 35. |
466653
|
[1] |
Compression spring
|
|
| 36. |
3830176
|
[1] |
Sleeve
|
|
| 37. |
940344
|
[1] |
Wing nut
|
|
| 38. |
21346370
|
[2] |
Adapter
|
|
| 39. |
969415
|
[2] |
O-ring
|
|
| 40. |
948610
|
[2] |
O-ring
|
|
| 41. |
20536487
|
[2] |
O-ring
|
|
| 42. |
993235
|
[2] |
X-ring
|
|
| 43. |
984735
|
[8] |
Flange screw
|
|
| 44. |
984749
|
[1] |
Flange screw
|
|
| 45. |
20741000
|
[1] |
Connector
|
|
| 46. |
20555696
|
[1] |
Sealing ring
|
|
| 47. |
3875266
|
[1] |
Oil return pipe
|
|
| 48. |
471626
|
[7] |
Rubber moulding
|
|
| 49. |
949853
|
[4] |
Flange screw
|
|
| 50. |
21627775
|
[1] |
Pipe
|
|
| 51. |
1545432
|
[1] |
Attaching clamp
|
|
| 52. |
21965217
|
[1] |
Bracket
|
|
| 53. |
984741
|
[1] |
Flange screw
|
|
| 54. |
984733
|
[1] |
Flange screw
|
|
| 55. |
|
|
|
|
| 56. |
20787167
|
[1] |
Gasket
|
|
