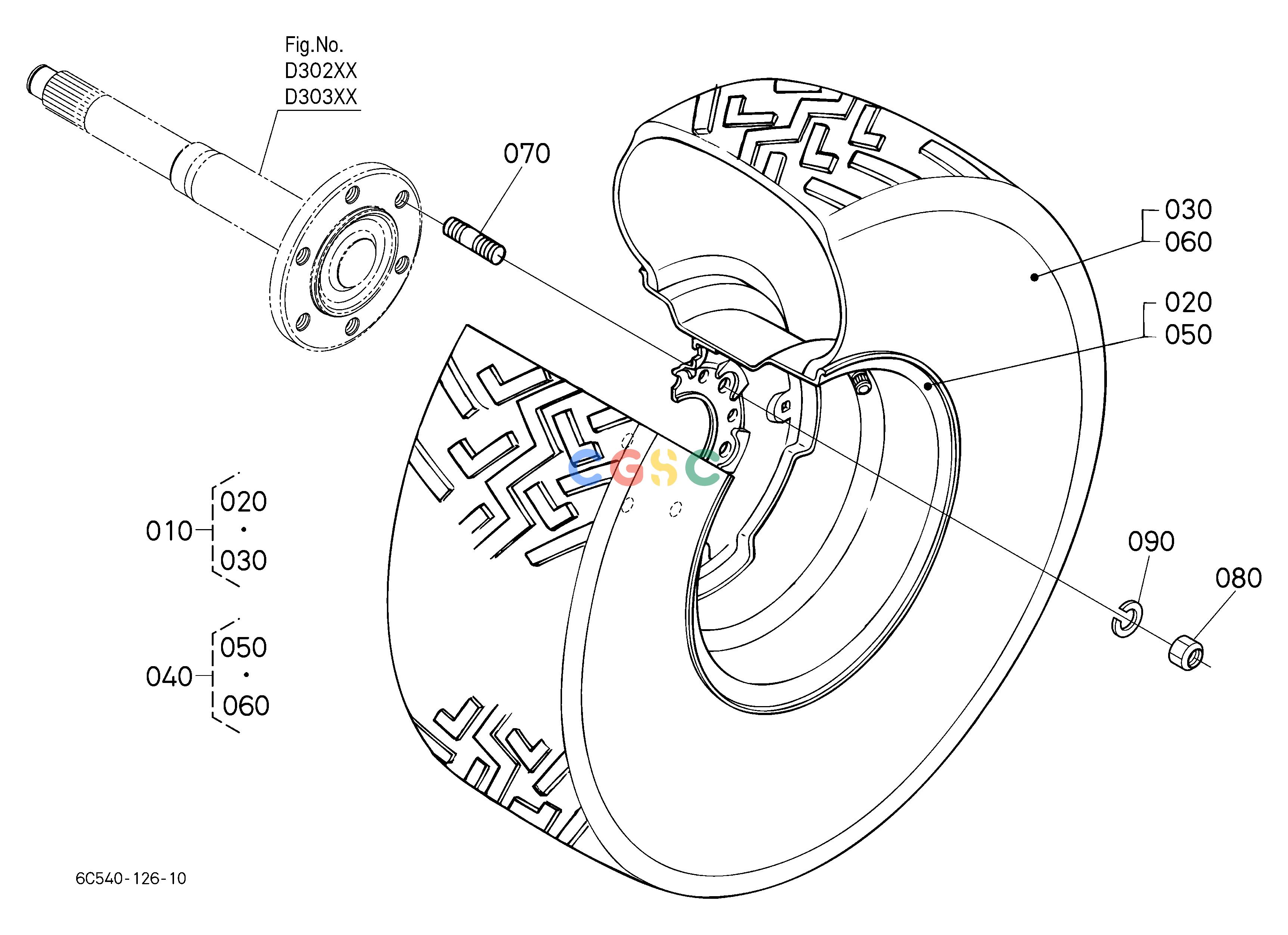

久保田零件查询R11003 REAR WHEEL (31 15.5-15) REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30050110
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 020. |
6C30050130
|
[1] |
WHEEL (15 X W10)
|
0.0000(lbs); 0.000
|
| 030. |
6643717630
|
[1] |
31X15.50-15 XTR 310-
|
0.0000(lbs); 0.000
|
| 040. |
6C30050210
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 050. |
6C30050130
|
[1] |
WHEEL (15 X W10)
|
0.0000(lbs); 0.000
|
| 060. |
6643717630
|
[1] |
31X15.50-15 XTR 310-
|
0.0000(lbs); 0.000
|
| 070. |
TA15049160
|
[12] |
STUD,WHEEL
|
0.1100(lbs); 0.050
|
| 080. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 090. |
0451250140
|
[12] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
