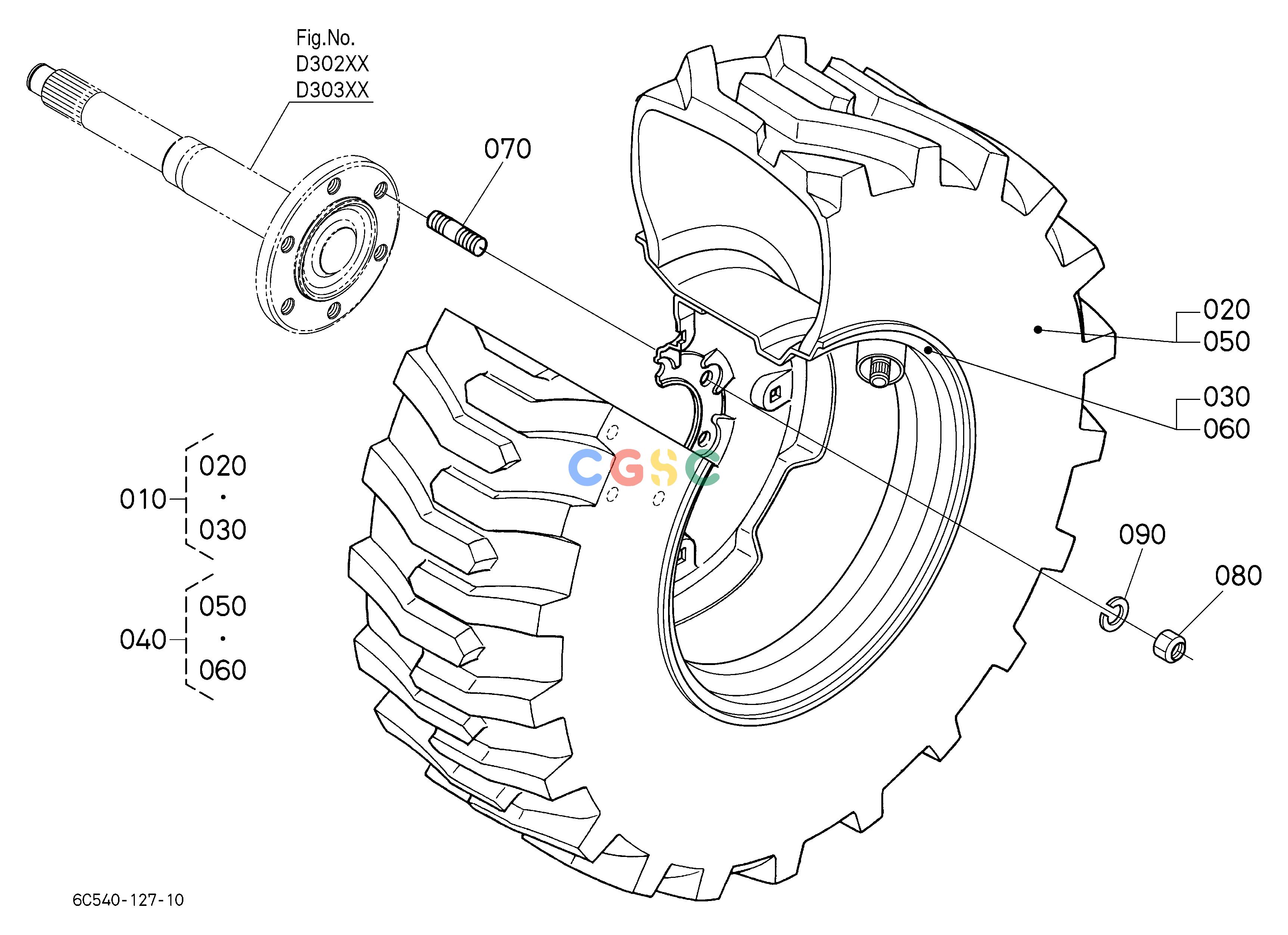

久保田零件查询R11004 REAR WHEEL (12-16.5) REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050720
|
[1] |
ASSY TIRE,LH
|
0.0000(lbs); 0.000
|
| 020. |
6C04050750
|
[1] |
12-16.5 TRAC LOADER
|
0.0000(lbs); 0.000
|
| 030. |
6C04050740
|
[1] |
45985 WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
6C04050730
|
[1] |
ASSY TIRE,RH
|
0.0000(lbs); 0.000
|
| 050. |
6C04050750
|
[1] |
12-16.5 TRAC LOADER
|
0.0000(lbs); 0.000
|
| 060. |
6C04050740
|
[1] |
45985 WHEEL
|
0.0000(lbs); 0.000
|
| 070. |
TA15049160
|
[12] |
STUD,WHEEL
|
0.1100(lbs); 0.050
|
| 080. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 090. |
0451250140
|
[12] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
