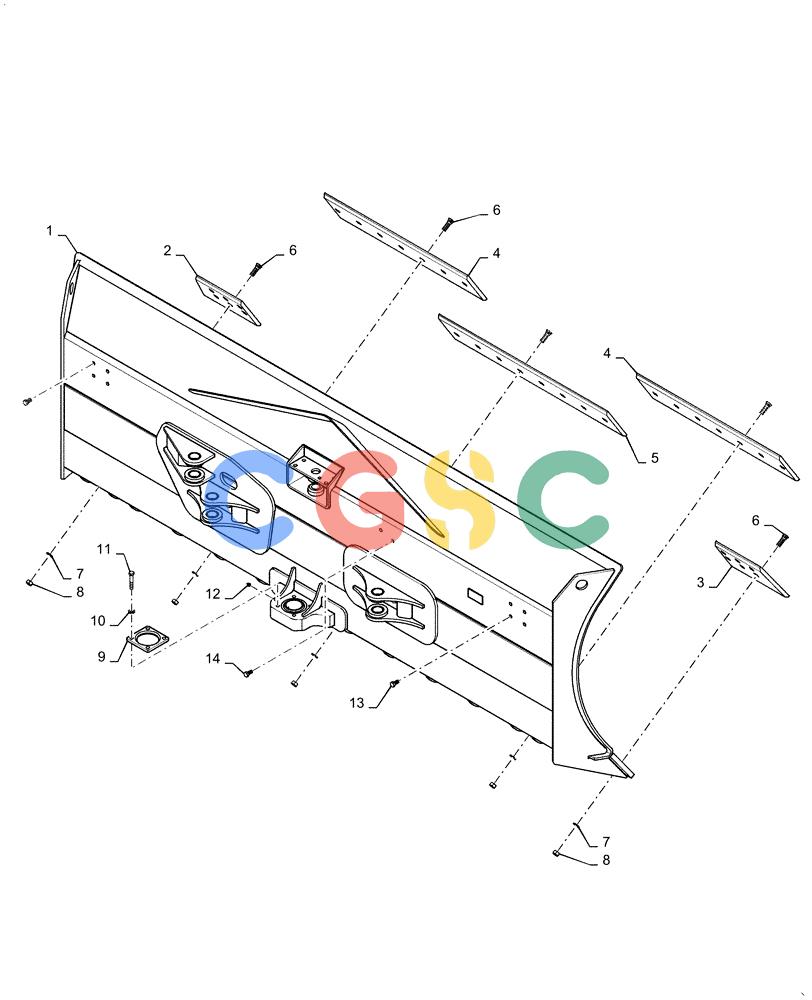

纽荷兰零件查询(D180C WT/LGP) - CRAWLER DOZER - TIER 4A (12/13-) (86.110.AD [04]) - BLADE PAT (LGP) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
887 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47632759 | [1] | DOZER BLADE | BUR |
| 2. | 84338693 | [1] | BIT | BURRight Hand Superseded by part number: 47632751 |
| 3. | 84338694 | [1] | BIT | BURLeft Hand Superseded by part number: 47632752 |
| 4. | 84338696 | [2] | CUTTING EDGE | BUROuter |
| 5. | 84339204 | [1] | CUTTING EDGE,1212mm L x 254mm W x 19mm Thk | BURCenter |
| 6. | 8282270 | [32] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 7. | 14497131 | [32] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 8. | 86015195 | [32] | NUT,M20 x 1.5, Cl 10 | RAC |
| 9. | 84545666 | [1] | CAP | BURLower Trunnion Mounting |
| 10. | 87655044 | [4] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BUR |
| 11. | 86521733 | [4] | BOLT,Hex Flg, M16 x 90mm, Cl 10.9 | NH |
| 12. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 13. | 86508623 | [8] | BOLT,Hex, M16 x 30mm, Cl 10.9 | DUB |
| 14. | 43140 | [2] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8 | NH |
