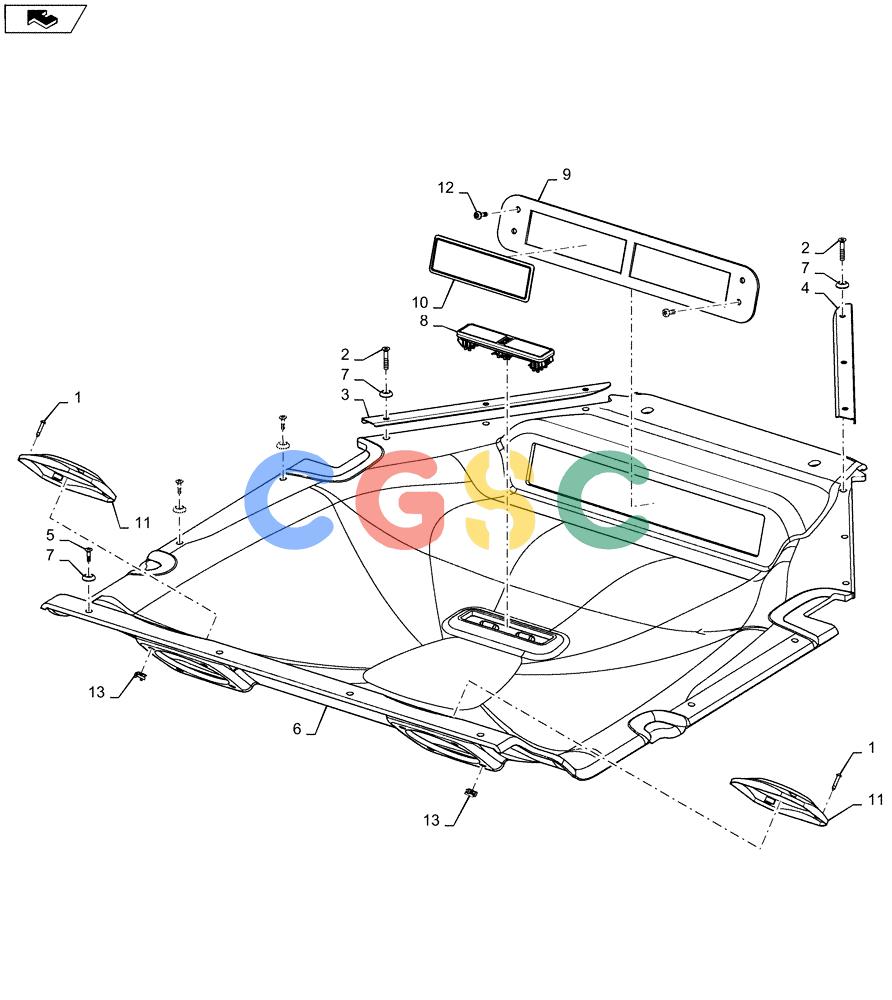

纽荷兰零件查询(D180C WT/LGP) - CRAWLER DOZER - TIER 4A (12/13-) (90.160.AX[01]) - HEADLINER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 761-17325 | [8] | SELF-TAP SCREW,Pan Hd, M4.2 x 25 | CAS Superseded by part number: 86625223 |
| 2. | 14441727 | [6] | SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8 | JES Superseded by part number: 14441724 |
| 3. | 84125292 | [1] | PLATE | BUR |
| 4. | 84125293 | [1] | PLATE | BUR |
| 5. | 84164280 | [8] | COUNTERSUNK SCREW | BUR |
| 6. | 47440361 | [1] | HEADLINER | BUR |
| 7. | 87475892 | [14] | CUP WASHER | BUR |
| 8. | 394799A1 | [1] | LIGHT ASSY.,24 /28V, W | CAS |
| 9. | 87752005 | [1] | PLATE | BUR |
| 10. | 1535219C1 | [1] | COVER | IH |
| 11. | 187281A1 | [2] | COVER | CAS |
| 12. | 239105A1 | [4] | SCREW,Cross Pan Hd, M6 x 20mm | CAS |
| 13. | 302862A1 | [8] | SPRING NUT | CAS |
