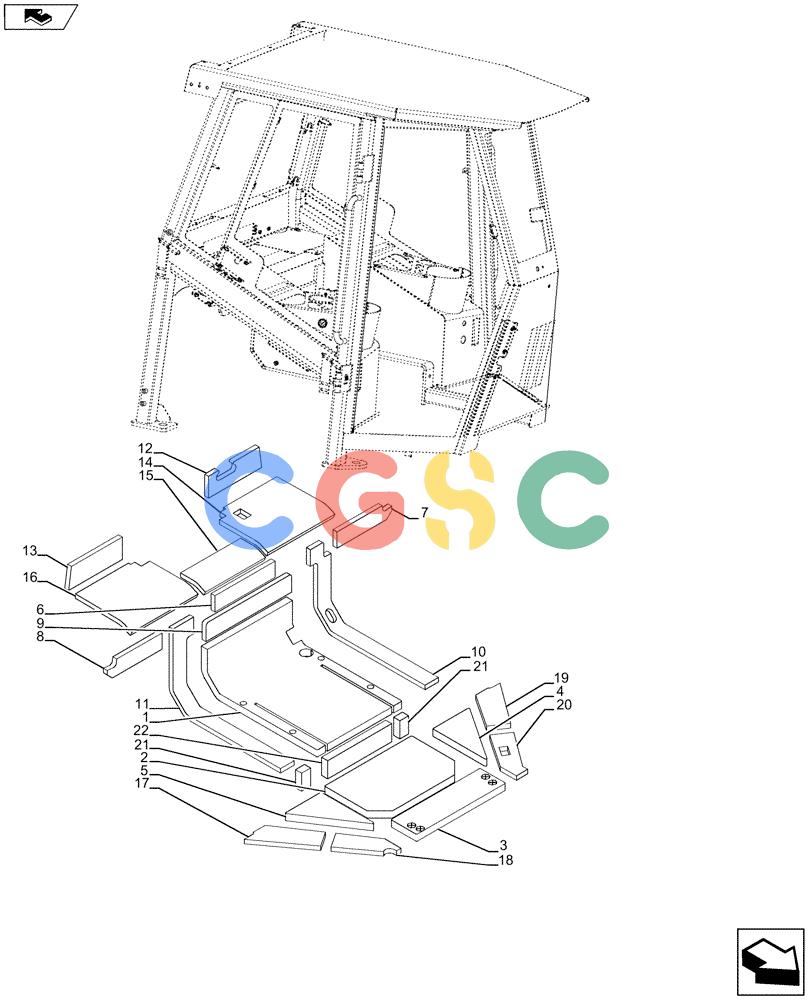

纽荷兰零件查询(D180C WT/LGP) - CRAWLER DOZER - TIER 4A (12/13-) (90.160.CK[01]) - SOUNDPROOFING, FLOOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
641 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47512301 | [1] | PANEL | BURRear ROPS |
| 2. | 84573609 | [1] | INSULATING PANEL | BURCenter ROPS |
| 3. | 84573592 | [1] | INSULATING PANEL | BURFront ROPS |
| 4. | 84573616 | [1] | INSULATING PANEL | BURLH ROPS |
| 5. | 84573612 | [1] | INSULATING PANEL | BURRH ROPS |
| 6. | 47511617 | [1] | PANEL | BURUpper Center |
| 7. | 47511618 | [1] | PANEL | BURLH Rear |
| 8. | 47511619 | [1] | PANEL | BURRHUpper |
| 9. | 47511620 | [1] | PANEL | BURUpper Center |
| 10. | 47511622 | [1] | PANEL | BURLH Rear |
| 11. | 47511624 | [1] | PANEL | BURRH Rear |
| 12. | 47511634 | [1] | PANEL | BURLH Rear Upper |
| 13. | 47511635 | [1] | PANEL | BURRH Upper Rear |
| 14. | 47511636 | [1] | PANEL | BURLH Air Intake |
| 15. | 47512013 | [1] | PANEL | BURCenter Air Intake |
| 16. | 47512016 | [1] | PANEL | BURRH Air Intake |
| 17. | 47511627 | [1] | PANEL | BURRH Rear Floor |
| 18. | 47511628 | [1] | PANEL | BURRH Front Floor |
| 19. | 47511626 | [1] | PANEL | BURLH Rear Floor |
| 20. | 47511629 | [1] | PANEL | BURLH Floor Front |
| 21. | 47511680 | [2] | PANEL | BURLower Outer |
| 22. | 47511681 | [1] | PANEL | BURLower Center |
