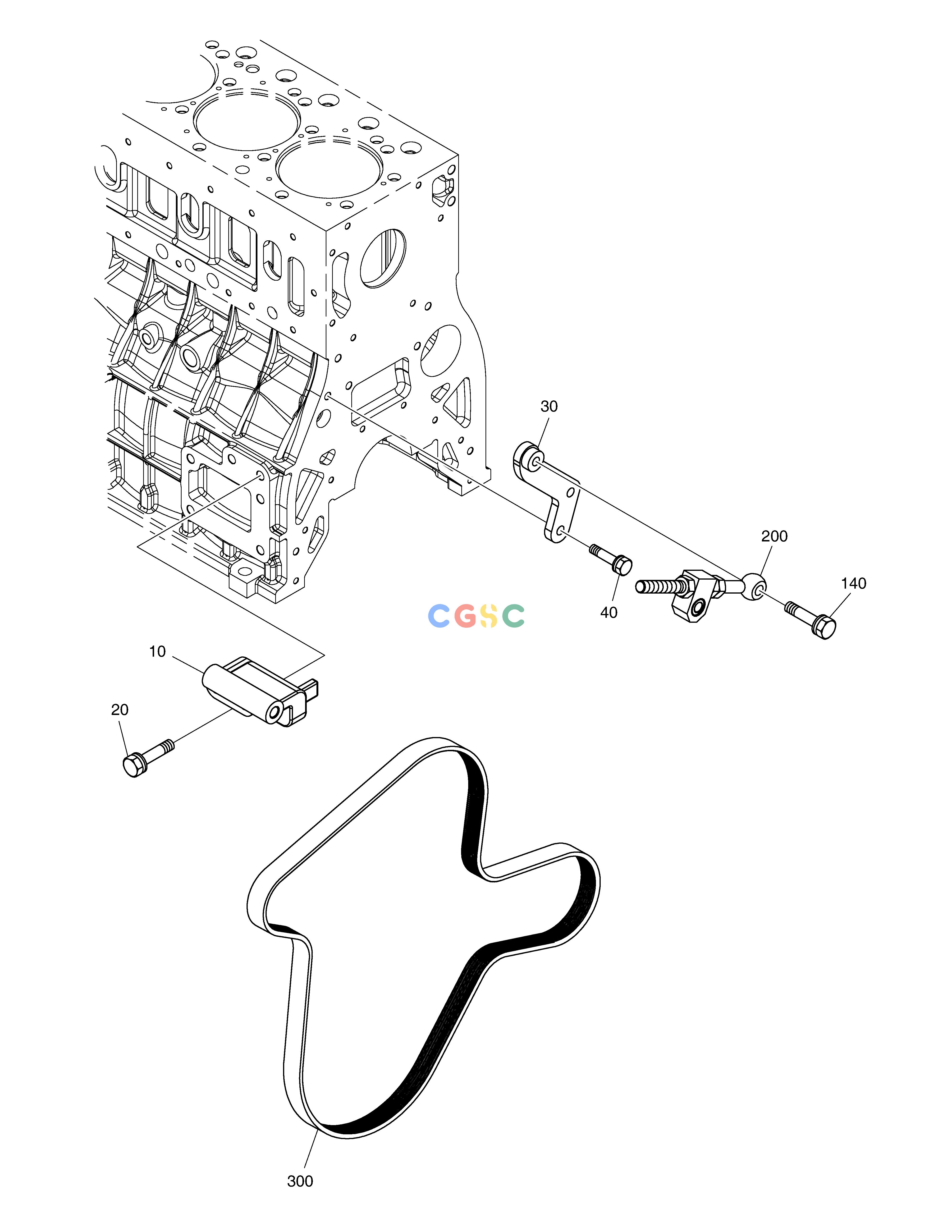

斗山零件查询ALTERNATOR & ALTERNATOR MOUNTING DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.19102-0093
|
[1] |
BRACKET;ALTERNATOR MOUNTING
|
|
| 140. |
06.01943-3319
|
[1] |
BOLT ASS`Y M12X1.5X40
|
|
| 20. |
06.01943-3326
|
[2] |
BOLT ASS`Y M12X1.5X75
|
|
| 200. |
65.19103-6012A
|
[1] |
EYE BOLT ASS'Y
|
|
| 30. |
65.19103-5048A
|
[1] |
SUPPORT;ALTERNATOR
|
|
| 300. |
65.96801-0144A
|
[1] |
BELT;V-TYPE
|
65.96801-0230
|
| 300. |
65.96801-0230
|
[1] |
BELT
|
130205-00404
|
| 300. |
130205-00404
|
[1] |
|
|
| 40. |
06.01913-3215
|
[2] |
BOLT ASS'Y M10X25
|
|
