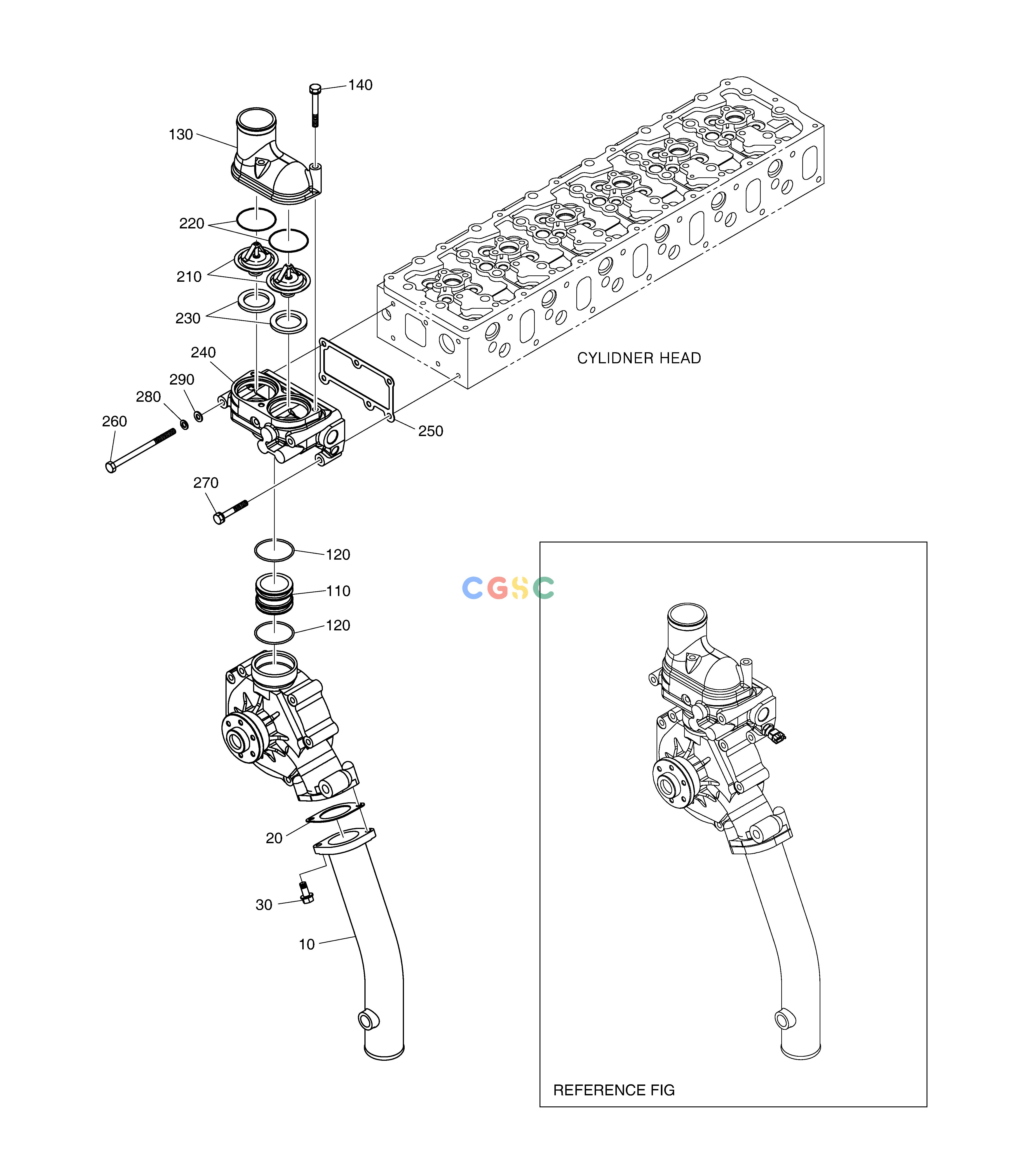

斗山零件查询COOLING WATER PIPE & THERMOSTAT DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.06301-0252
|
[1] |
PIPE;COOLING WATER
|
|
| 110. |
65.06301-0219A
|
[1] |
PIPE;COOLING WATER
|
|
| 120. |
65.96501-0089A
|
[2] |
O-RING
|
|
| 130. |
65.06405-0018A
|
[1] |
PIPE;WATER OUTLET
|
|
| 140. |
06.01923-3124
|
[3] |
BOLT ASS`Y M8X65
|
|
| 20. |
65.06901-0037
|
[1] |
GASKET;WATER PUMP
|
|
| 210. |
51.06402-0062
|
[2] |
THERMOSTAT
|
65.06402-0006
|
| 210. |
65.06402-0006
|
[2] |
THERMOSTAT
|
|
| 220. |
06.56342-1208
|
[2] |
O-RING
|
|
| 230. |
65.06901A0069
|
[2] |
GASKET
|
|
| 240. |
65.06404-5028
|
[1] |
HOUSING;THERMOSTAT
|
|
| 250. |
65.06901-0040
|
[1] |
GASKET;THERMOSTAT HOUSING
|
|
| 260. |
06.01013-9127
|
[3] |
BOLT M8X120
|
|
| 270. |
06.01923-3122
|
[3] |
BOLT ASS`Y M8X55
|
|
| 280. |
06.16731-2107
|
[3] |
WASHER
|
|
| 290. |
06.15010-2311
|
[3] |
WASHER
|
|
| 30. |
06.01923-3117
|
[2] |
. BOLT ASS`Y M8X30
|
|
