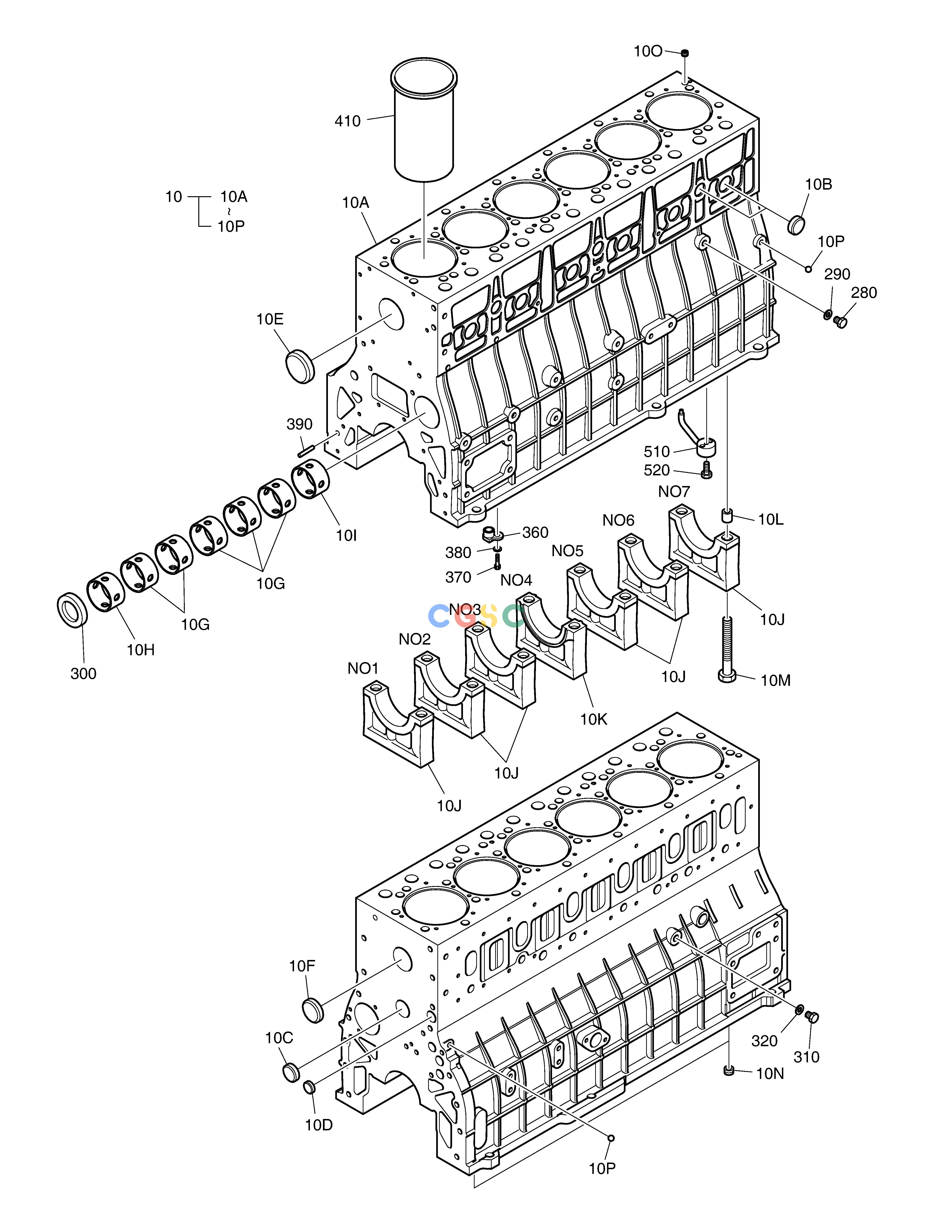

斗山零件查询CYLINDER BLOCK DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
172 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
150102-00289
|
[1] |
BLOCK;CYLINDER
|
150102-00289A
|
| 10. |
150102-00289A
|
[1] |
BLOCK ASSY,CYLINDER
|
|
| 10. |
65.01101-6108D
|
[1] |
BLOCK;CYLINDER
|
150102-00002
|
| 10. |
150102-00002
|
[1] |
BLOCK;CYLINDER
|
150102-00289
|
| 10A. |
150102-00290
|
[1] |
BLOCK;CYLINDER
|
|
| 10A. |
150102-00290A
|
[1] |
BLOCK,CYLINDER
|
|
| 10A. |
65.01101-0108D
|
[1] |
BLOCK;CYLINDER
|
|
| 10B. |
65.90302-0042
|
[9] |
. PLUG;CORE
|
|
| 10C. |
65.90302-0042
|
[1] |
. PLUG;CORE
|
|
| 10D. |
65.91606-0041
|
[1] |
. PLUG;CORE
|
|
| 10E. |
65.90302-0059
|
[1] |
PLUG;CORE
|
|
| 10F. |
65.90302-0026
|
[1] |
PLUG;CORE
|
|
| 10G. |
65.04410-0017
|
[5] |
BUSH;CAM SHAFT
|
|
| 10H. |
65.04410-0019
|
[1] |
BUSH;CAM SHAFT
|
|
| 10I. |
65.04410-0020
|
[1] |
BUSH;CAM SHAFT
|
|
| 10J. |
140202-00023
|
[6] |
CAP;BEARING
|
|
| 10J. |
65.01105-1049
|
[6] |
CAP;BEARING
|
|
| 10K. |
140202-00024
|
[1] |
CAP;BEARING
|
|
| 10K. |
65.01105-1050
|
[1] |
CAP;BEARING
|
|
| 10L. |
65.91710-0035B
|
[14] |
RING;LOCATING
|
|
| 10M. |
65.90020-0096
|
[14] |
BOLT;COLLARED HEX.
|
|
| 10N. |
65.90310-0148
|
[2] |
SCREW;PLUG
|
|
| 10O. |
65.91001-0013
|
[3] |
AVSEAL
|
65.91001-0013A
|
| 10O. |
65.91001-0013A
|
[3] |
PIN;CORE
|
|
| 10P. |
06.31641-0618
|
[2] |
. BALL;STEEL
|
|
| 280. |
65.90310-0091
|
[1] |
SCREW;PLUG M12X1.5X20
|
|
| 290. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 300. |
65.91605-0002
|
[1] |
COVER;CORE HOLE
|
|
| 310. |
65.90310-0135
|
[1] |
PLUG;SCREW
|
|
| 320. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 360. |
65.05710-0001
|
[1] |
FLANGE;CONNECTION
|
|
| 370. |
06.02090-0307
|
[1] |
BOLT;SOCKET HEAD M6X14
|
|
| 380. |
06.16731-2106
|
[1] |
WASHER
|
|
| 390. |
06.22022-1063
|
[2] |
PIN
|
|
| 410. |
65.01201-0074
|
[6] |
LINER;CYLINDER
|
|
| 410. |
150117-00029
|
[6] |
LINER;CYLINDER
|
150117-00050
|
| 410. |
150117-00050
|
[6] |
LINER;CYLINDER
|
|
| 510. |
65.01601-5018B
|
[6] |
NOZZLE;OIL SPRAY
|
|
| 520. |
65.98150-0089A
|
[6] |
SCREW;HOLLOW
|
|
