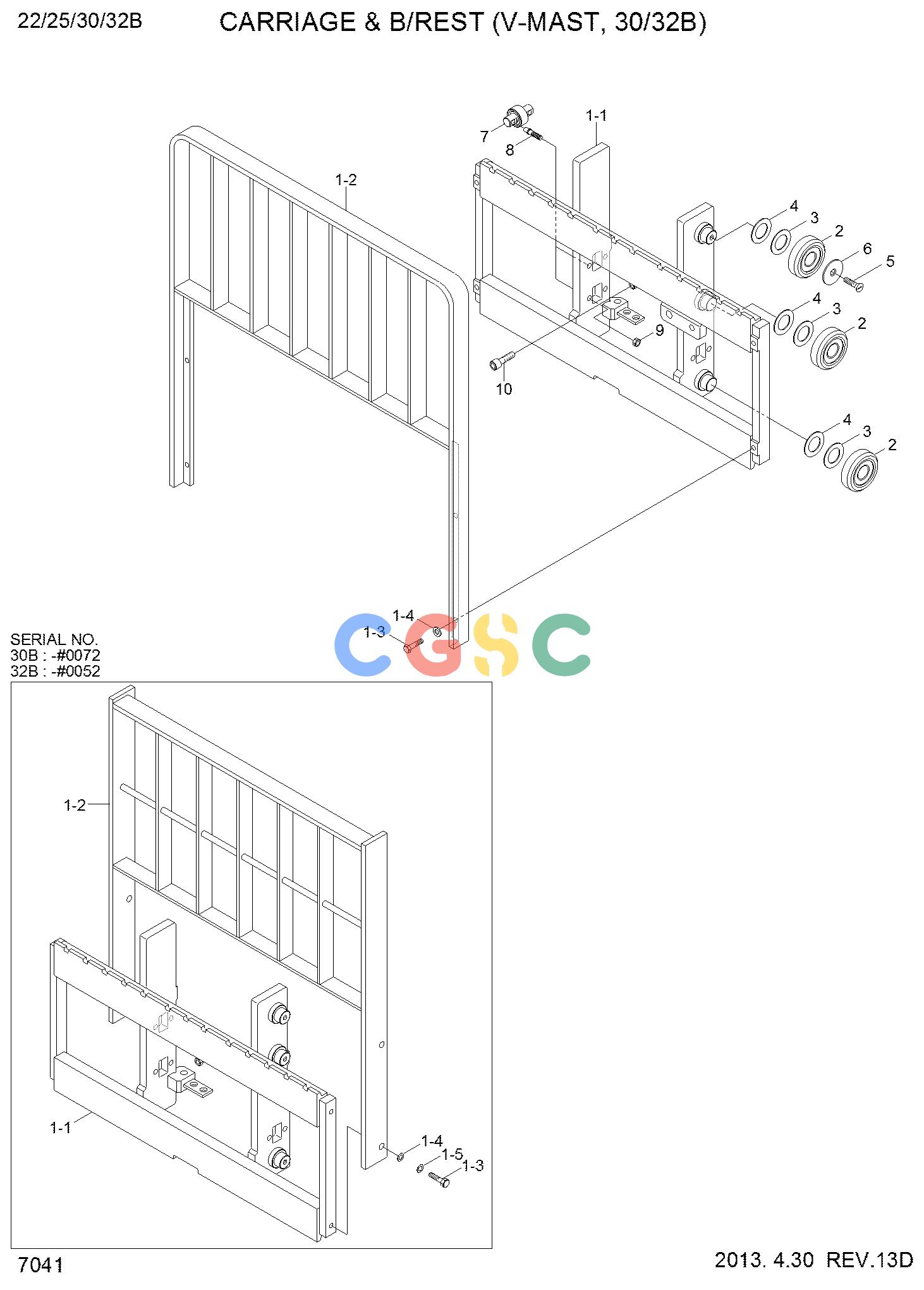

Pos.	Part No	Qty	Parts name	Comments
1.	65FP-25020	[1]	TILT BAR & B/REST SUB ASY
1-1.	65FP-22020	[1]	TILT BAR WA
1-2.	61FP-23330	[1]	BACKREST WA
1-3.	S411-160006	[4]	WASHER-SPRING
1-4.	S403-161006	[4]	WASHER-PLAIN
1-5.	S017-16035D	[4]	BOLT-HEX
2.	65FP-21020	[1]	CARRIAGE WA
3.	61FY-18100	[4]	L/ROLLER BEARING(99)	10BR,STD
3.	61FY-18101	[4]	LOAD R/BRG(99.0)	10BR,STD
3.	61FY-18100	[4]	L/ROLLER BEARING(99)	13BR,STD
3.	61FY-18101	[4]	LOAD R/BRG(99.0)	13BR,STD
3.	61FY-18110	[4]	L/ROLLER BEARING(98.7)	10,UNDERSIZE
3.	61FY-18111	[4]	LOAD R/BRG(98.7)	10,UNDERSIZE
3.	61FY-18110	[4]	L/ROLLER BEARING(98.7)	13,UNDERSIZE
3.	61FY-18111	[4]	LOAD R/BRG(98.7)	13,UNDERSIZE
3.	61FY-18120	[4]	L/ROLLER BEARING(99.3)	10,OVERSIZE
3.	61FY-18121	[4]	LOAD R/BRG(99.3)	10,OVERSIZE
3.	61FY-18120	[4]	L/ROLLER BEARING(99.3)	13,OVERSIZE
3.	61FY-18121	[4]	LOAD R/BRG(99.3)	13,OVERSIZE
4.	5261101800	[2]	SHIM(0.5T)	10BR-7
4.	5261101800	[4]	SHIM(0.5T)	10BR-7
4.	5261101800	[2]	SHIM(0.5T)	13BR-7
4.	5261101800	[4]	SHIM(0.5T)	13BR-7
5.	5261101900	[2]	SHIM(1.0T)	10BR-7
5.	5261101900	[4]	SHIM(1.0T)	10BR-7
5.	5261101900	[2]	SHIM(1.0T)	13BR-7
5.	5261101900	[4]	SHIM(1.0T)	13BR-7
6.	61F7-28100	[2]	SIDE ROLLER ASSY
9.	63HJ-27100	[2]	PIN WA
10.	S731-025030	[2]	BUSHING-DU
11.	S035-082026	[2]	BOLT-W/WASHER
12.	S653-810008	[2]	NIPPLE-GREASE
13.	S109-120306	[1]	BOLT-SOCKET
14.	S601-035004	[2]	RING-RETAINING	10BR-7
14.	S601-035004	[2]	RING-RETAINING	13BR-7
15.	61FY-27050	[2]	BUSHING
16.	61FY-27060	[2]	BACK PLATE
17.	S111-120306	[2]	SCREW-SET HEX SOCKET
18.	S205-12100B	[2]	NUT-HEX
19.	S017-100406	[4]	BOLT-HEX
20.	S411-100006	[4]	WASHER-SPRING
21.	64FY-27110	[4]	SPACER
22.	F12500730	[4]	SHIM(1.0T)
23.	F12500720	[4]	SHIM(0.5T)
