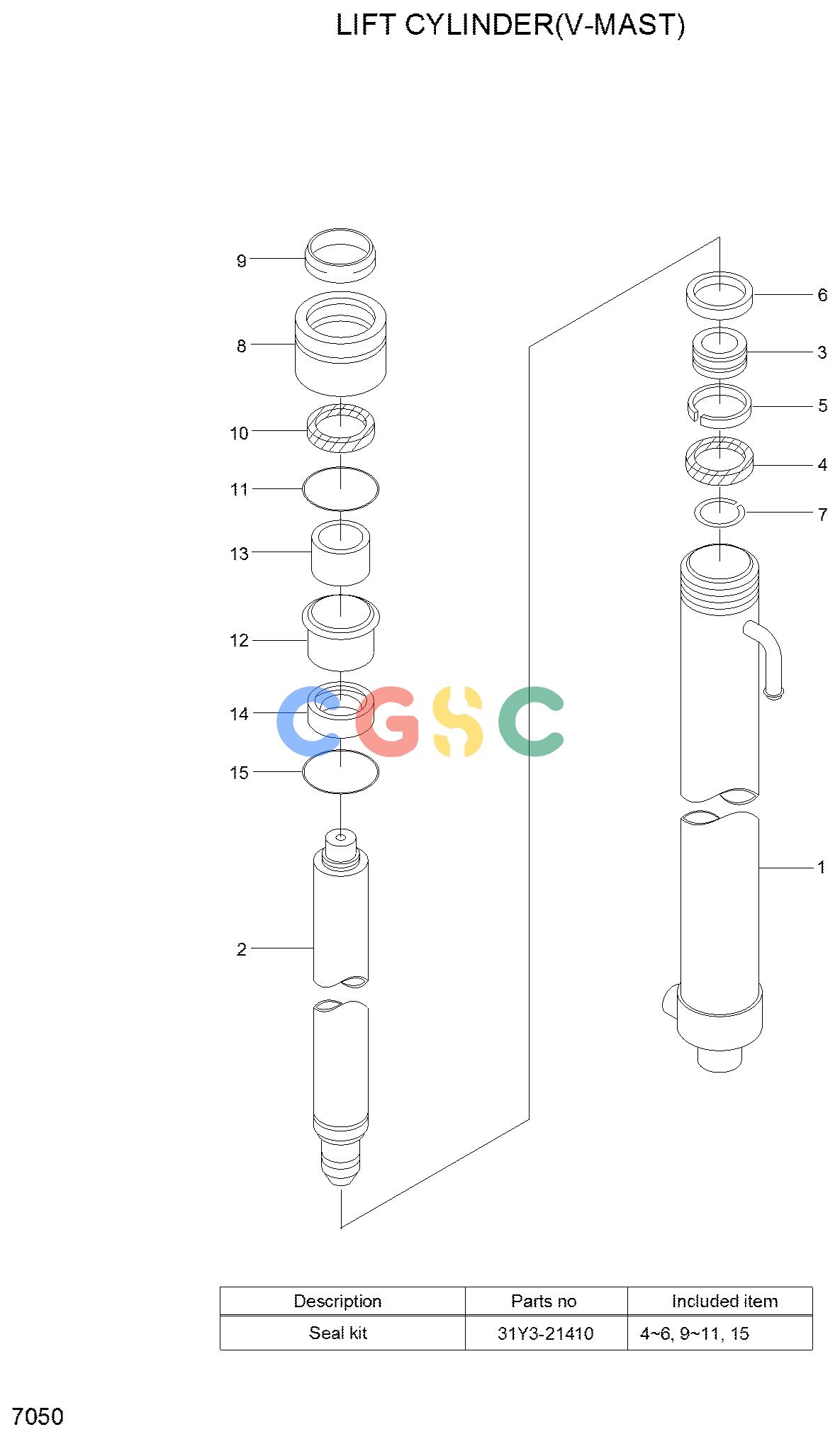

现代零件查询10/13BR-7 LIFT CYLINDER(V-MAST)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
193 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31FJ-07011
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07021
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07031
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07041
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07051
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07061
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07071
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07081
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07091
|
[2] |
LIFT CYLINDER ASSY
|
|
| . |
31FJ-07101
|
[2] |
LIFT CYLINDER ASSY
|
|
| 1. |
31Y3-20920
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20930
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20940
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20950
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20960
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20970
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20980
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-20990
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-21000
|
[1] |
TUBE ASSY
|
|
| 1. |
31Y3-21010
|
[1] |
TUBE ASSY
|
|
| 2. |
31Y3-21250
|
[1] |
ROD
|
|
| 2. |
31Y3-21260
|
[1] |
ROD
|
|
| 2. |
31Y3-21270
|
[1] |
ROD
|
|
| 2. |
31Y3-21280
|
[1] |
ROD
|
|
| 2. |
31Y3-21290
|
[1] |
ROD
|
|
| 2. |
31Y3-21300
|
[1] |
ROD
|
|
| 2. |
31Y3-21310
|
[1] |
ROD
|
|
| 2. |
31Y3-21320
|
[1] |
ROD
|
|
| 2. |
31Y3-21330
|
[1] |
ROD
|
|
| 2. |
31Y3-21340
|
[1] |
ROD
|
|
| 3. |
31Y3-21360
|
[1] |
PISTON
|
|
| K4. |
Y400-045000
|
[1] |
SEAL-PISTON
|
|
| K5. |
Y180-035020
|
[1] |
RING-BACK UP
|
|
| K6. |
Y310-045100
|
[1] |
RING-WEAR
|
|
| 7. |
31YC-99G20
|
[1] |
RING-RETAINING
|
|
| 8. |
31Y3-21370
|
[1] |
GLAND
|
|
| K9. |
Y120-035011
|
[1] |
WIPER-DUST
|
|
| K10. |
Y200-035011
|
[1] |
SEAL-ROD
|
|
| K11. |
S631-050004
|
[1] |
O-RING
|
|
| 12. |
31Y3-21380
|
[1] |
GUIDE
|
|
| 13. |
S731-035030
|
[1] |
BUSHING-DU
|
|
| 14. |
31Y3-21440
|
[1] |
SPACER
|
|
| K15. |
S632-030004
|
[1] |
O-RING
|
|
| K. |
31Y3-21410
|
[1] |
SEAL KIT
|
|
