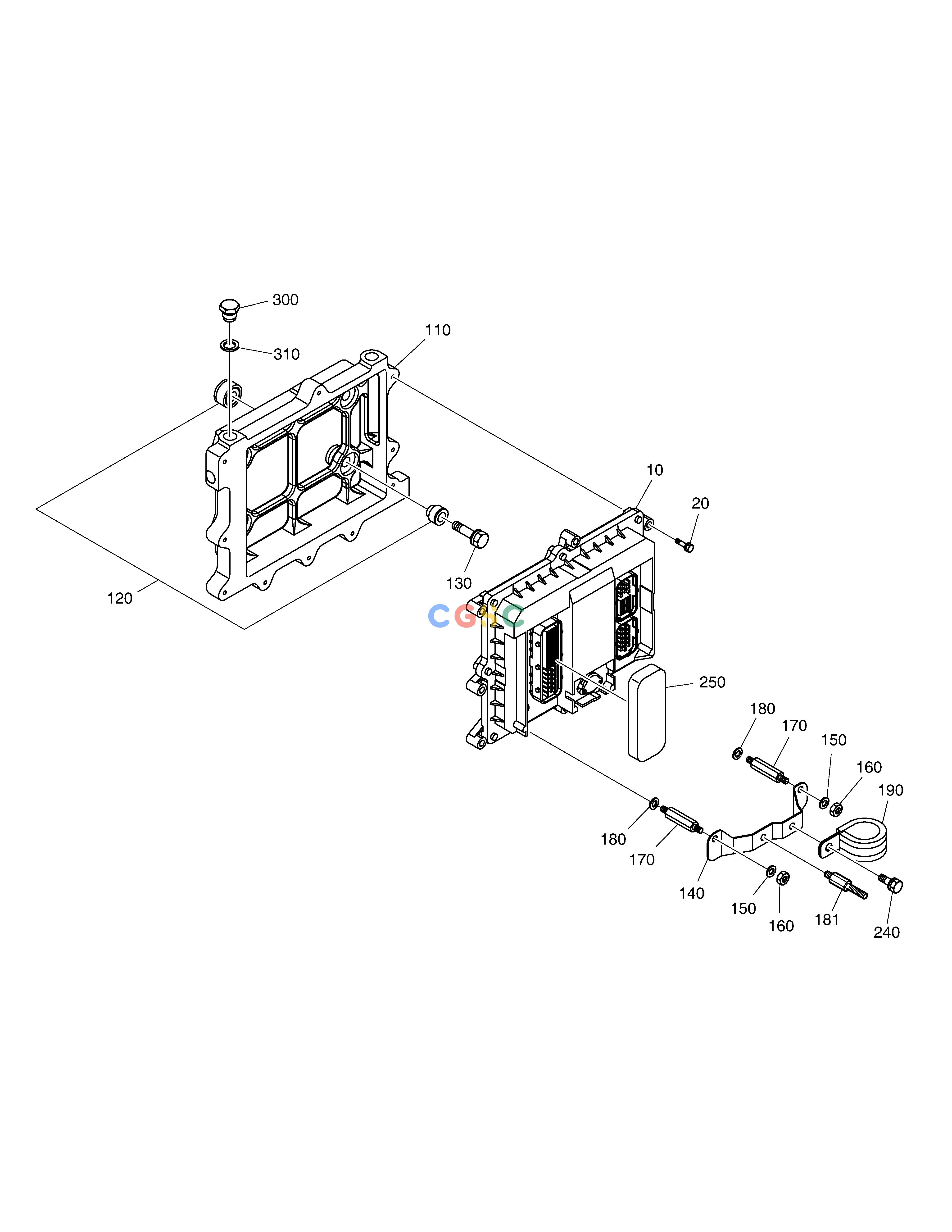

斗山零件查询ENGINE CONTROL DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
970301-01625
|
[1] |
|
|
| 10. |
65.99497-8789
|
[1] |
ENGINE CONTROL UNIT
|
970301-01625
|
| 110. |
65.11210-0001B
|
[1] |
PLATE;ENGINE CONTROL UNIT
|
|
| 120. |
65.96210-6001A
|
[4] |
RUBBER;CUSHION
|
|
| 130. |
65.90020-0095
|
[4] |
BOLT;COLLARED HEX
|
|
| 140. |
65.29150-5001
|
[1] |
BRACKET;HARNESS
|
|
| 150. |
06.16731-2106
|
[2] |
WASHER
|
|
| 160. |
06.11063-8212
|
[2] |
NUT
|
|
| 170. |
65.90441-0050
|
[2] |
BOLT;SPACER
|
|
| 180. |
06.16731-2106
|
[2] |
WASHER
|
|
| 181. |
65.90441-0066
|
[1] |
BOLT;SPACER
|
|
| 190. |
65.97401-0188
|
[1] |
CLIP;PIPE
|
|
| 190. |
65.97401-0189
|
[1] |
. CLIP;HOSE
|
|
| 20. |
06.01923-2917
|
[8] |
BOLT ASS`Y M6X30
|
|
| 240. |
06.01923-2911
|
[1] |
BOLT ASS`Y M6X16
|
|
| 250. |
65.96001-0012
|
[1] |
CAP;RUBBER
|
|
| 300. |
06.08092-0204
|
[2] |
SCREW;PLUG M14X1.5
|
|
| 310. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
