斗山零件查询DRIVING SYSTEM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
723 次

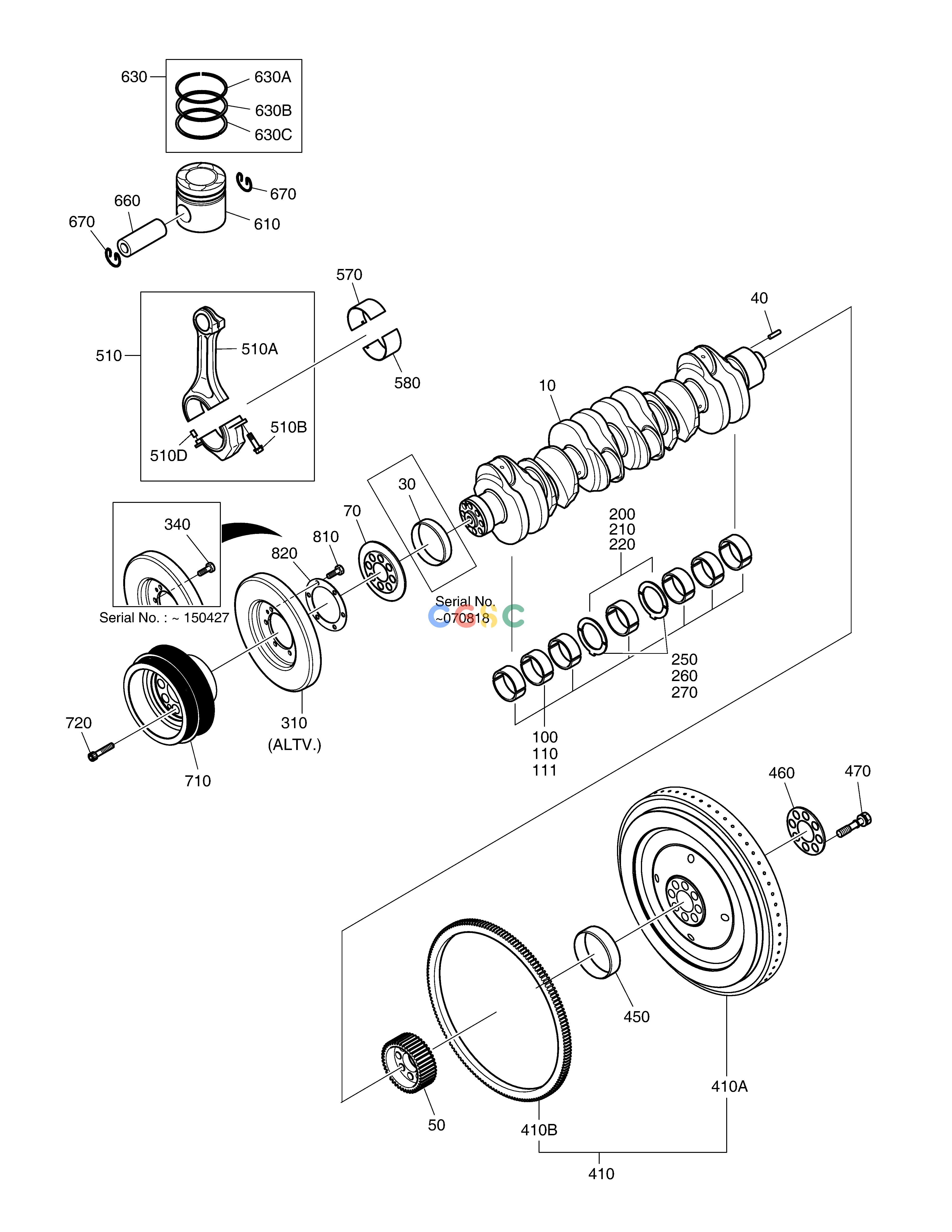

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.02101-0064B
|
[1] |
SHAFT;CRANK
|
150107-00367
|
| 10. |
150107-00367
|
[1] |
|
|
| 100. |
65.01110-6120
|
[7] |
BEARING;MAIN
|
140103-00075
|
| 100. |
140103-00075
|
[7] |
METAL,MAIN
|
|
| 110. |
65.01110-6121
|
[7] |
BEARING;MAIN (0.25)
|
140103-00076
|
| 110. |
140103-00076
|
[7] |
METAL,MAIN(0.25)
|
|
| 111. |
65.01110-6122
|
[7] |
BEARING;MAIN (0.50)
|
140103-00077
|
| 111. |
140103-00077
|
[7] |
METAL,MAIN(0.50)
|
|
| 200. |
65.01150-0015
|
[2] |
WASHER;THRUST(UPPER)
|
|
| 200. |
120816-00083
|
[2] |
WASHER,THRUST(UPPER)
|
|
| 200. |
120816-00083A
|
[2] |
WASHER,THRUST(UPPER)
|
|
| 210. |
65.01150-0019
|
[2] |
WASHER;THRUST(0.25)
|
|
| 220. |
65.01150-0020
|
[2] |
WASHER;THRUST(0.50)
|
|
| 250. |
65.01150-0016A
|
[2] |
WASHER;THRUST(LOWER)
|
|
| 250. |
120816-00084
|
[2] |
WASHER,THRUST(LOWER)
|
|
| 250. |
120816-00084A
|
[2] |
WASHER,THRUST(LOWER)
|
|
| 260. |
65.01150-0023A
|
[2] |
WASHER;THRUST(0.25)
|
|
| 270. |
65.01150-0024A
|
[2] |
WASHER;THRUST(0.50)
|
|
| 30. |
65.02130-0001
|
[1] |
RING;WEAR(FRONT)
|
|
| 310. |
65.02201-7032
|
[1] |
DAMPER;VIBRATION
|
65.02201-7033
|
| 310. |
65.02201-7033
|
[1] |
DAMPER;VISCOUS
|
|
| 340. |
65.90020-0062B
|
[6] |
BOLT;HEX M10X20
|
|
| 40. |
06.22022-1018
|
[1] |
PIN;DOWEL
|
|
| 410. |
150111-00151
|
[1] |
FLYWHEEL
|
|
| 410. |
65.02301-5135
|
[1] |
FLYWHEEL
|
|
| 410A. |
65.02301-0280
|
[1] |
FLYWHEEL
|
|
| 410B. |
65.02310-0073D
|
[1] |
GEAR;STARTER RING
|
|
| 410B. |
65.02310-0015
|
[1] |
GEAR;STARTER RING
|
|
| 450. |
65.02130-0003
|
[1] |
RING,WEAR
|
401007-00037
|
| 450. |
401007-00037
|
[1] |
BUSH;DRIVING
|
|
| 460. |
65.90701-0096A
|
[1] |
WASHER
|
|
| 470. |
65.90020-0108
|
[8] |
BOLT;COLLARED HEX.
|
|
| 50. |
65.02115-0014B
|
[1] |
GEAR;CRANK SHAFT
|
|
| 510. |
65.02401-6025B
|
[6] |
ROD;CONNECTING
|
150121-00261
|
| 510. |
150121-00261
|
[6] |
|
150121-00261A
|
| 510. |
150121-00261A
|
[6] |
|
|
| 510A. |
65.02401-0013B
|
[1] |
ROD;CONNECTING
|
|
| 510B. |
65.90020-0009D
|
[2] |
BOLT;CONNECTING ROD
|
|
| 510D. |
65.91301-0010
|
[2] |
PIN;DOWEL
|
|
| 570. |
65.02410-6130
|
[6] |
BEARING;CONNECTING ROD
|
|
| 570. |
65.02410-6131
|
[6] |
BEARING;CON. ROD(0.25)
|
|
| 570. |
65.02410-6132
|
[6] |
BEARING;CON. ROD(0.50)
|
|
| 570. |
140112-00011
|
[6] |
METAL,ROD CON.(STD-Upper)
|
|
| 570. |
140112-00015
|
[6] |
METAL,ROD CON.(upper-0.25)
|
|
| 570. |
140112-00016
|
[6] |
METAL,ROD CON.(upper-0.50)
|
|
| 580. |
140112-00012
|
[6] |
METAL,ROD CON.(STD-Low)
|
|
| 580. |
140112-00019
|
[6] |
METAL,ROD CON.(low-0.25)
|
|
| 580. |
140112-00020
|
[6] |
METAL,ROD CON.(low-0.50)
|
|
| 610. |
65.02501-0505
|
[6] |
PISTON
|
|
| 610. |
130602-00794
|
[6] |
PISTON
|
|
| 630. |
65.02503-8038
|
[1] |
RING KIT
|
|
| 630. |
401004-00102
|
[1] |
RING KIT
|
|
| 630A. |
401004-00025
|
[6] |
RING;TOP
|
|
| 630B. |
401004-00026
|
[6] |
RING;SECOND
|
|
| 630C. |
401004-00084
|
[6] |
RING,OIL
|
|
| 660. |
65.02502-0015
|
[6] |
PIN;PISTON
|
|
| 670. |
65.90815-0024A
|
[12] |
RING;LOCK
|
|
| 70. |
65.01505-0007
|
[1] |
RING;OIL THROWER.
|
401102-00033
|
| 70. |
401102-00033
|
[1] |
HOLDER,OIL SEAL
|
|
| 710. |
65.02601-0219
|
[1] |
PULLEY;V-BELT
|
|
| 720. |
06.02106-0824
|
[8] |
BOLT
|
|
| 810. |
120121-00071
|
[6] |
BOLT
|
|
| 820. |
120808-00786
|
[1] |
|
|
