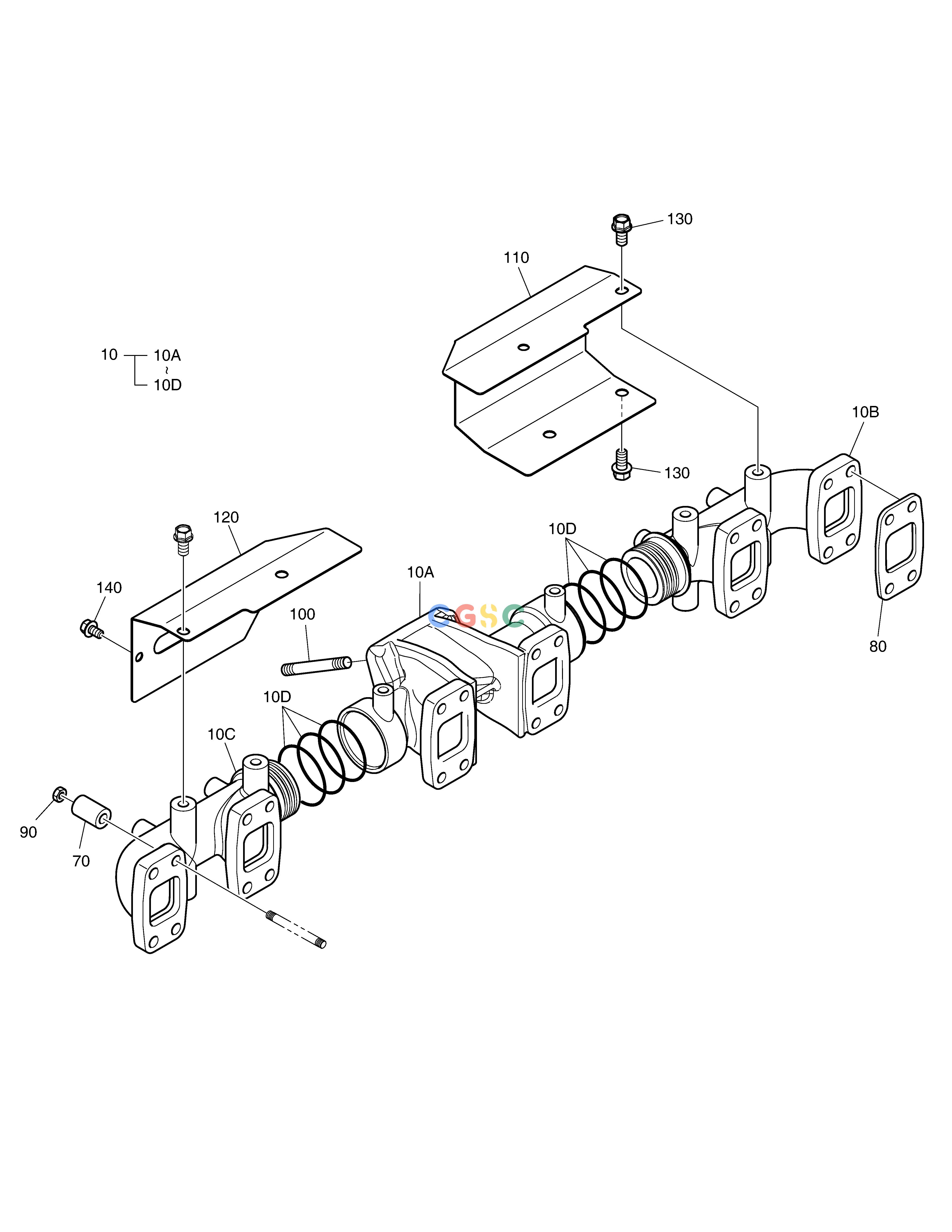

斗山零件查询EXHAUST MANIFOLD DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.08100-6098
|
[1] |
EXHAUST MANIFOLD ASS'Y
|
|
| 100. |
65.90201-0073
|
[4] |
. BOLT;STUD
|
|
| 10A. |
65.08101-0244
|
[1] |
MANIFOLD;EXHAUST
|
|
| 10B. |
65.08101-0282
|
[1] |
MANIFOLD;EXHAUST
|
|
| 10C. |
65.08101-0246
|
[1] |
MANIFOLD;EXHAUST
|
|
| 10C. |
65.08101-0283
|
[1] |
MANIFOLD;EXHAUST
|
|
| 10D. |
65.96507-0059
|
[8] |
.. RING;SEAL
|
|
| 110. |
111002-00133
|
[1] |
|
|
| 120. |
111002-00137
|
[1] |
|
|
| 130. |
120106-00208
|
[4] |
|
|
| 140. |
120106-00200
|
[2] |
|
|
| 70. |
65.91701-0241
|
[24] |
SPACER
|
|
| 80. |
65.08901-0032A
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 90. |
65.90535-0001
|
[24] |
NUT
|
|
