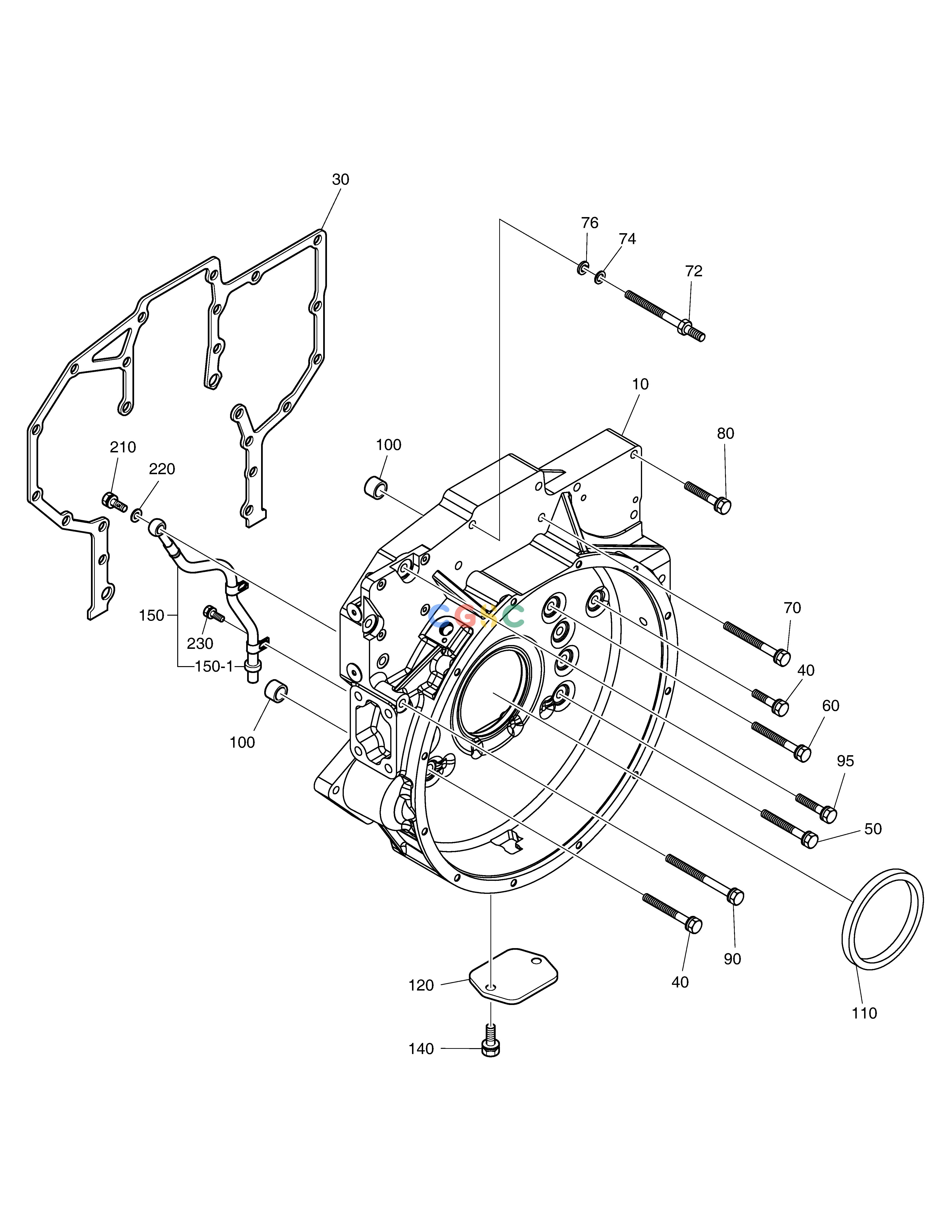

斗山零件查询FLYWHEEL HOUSING DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
318 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.01401-0256A
|
[1] |
HOUSING;FLYWHEEL
|
150114-00077A
|
| 10. |
150114-00077A
|
[1] |
HOUSING;FLYWHEEL
|
|
| 100. |
65.91710-0009
|
[2] |
RING;STOPPER
|
|
| 110. |
65.01510-0141
|
[1] |
OIL SEAL;RR
|
|
| 120. |
65.01414-0004A
|
[1] |
. COVER
|
|
| 140. |
06.01913-3110
|
[2] |
BOLT ASS`Y M8X12
|
|
| 150. |
65.01802-6001
|
[1] |
PIPE;BREATHER
|
|
| 150-1. |
65.01816-5002
|
[1] |
VALVE;CHECK
|
|
| 210. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 220. |
06.56190-0706
|
[2] |
SEAL RING
|
|
| 230. |
06.01913-3110
|
[2] |
BOLT ASS`Y M8X12
|
|
| 30. |
65.01904-0027A
|
[1] |
GASKET
|
|
| 40. |
65.90020-0099
|
[2] |
BOLT, 108mm
|
|
| 50. |
65.90020-0100
|
[8] |
BOLT
|
|
| 60. |
65.90020-0101
|
[2] |
BOLT
|
|
| 70. |
65.90020-0102
|
[2] |
BOLT, 125mm
|
|
| 72. |
65.90201-0123
|
[2] |
BOLT;STUD
|
|
| 74. |
06.15010-2313
|
[2] |
WASHER;PLAIN
|
|
| 76. |
06.16731-2109
|
[2] |
WASHER;SPRING A12
|
|
| 80. |
65.90020-0103
|
[5] |
BOLT, 79mm
|
|
| 90. |
65.90020-0104
|
[2] |
BOLT, 138mm
|
|
| 95. |
65.90020-0105
|
[2] |
BOLT
|
|
