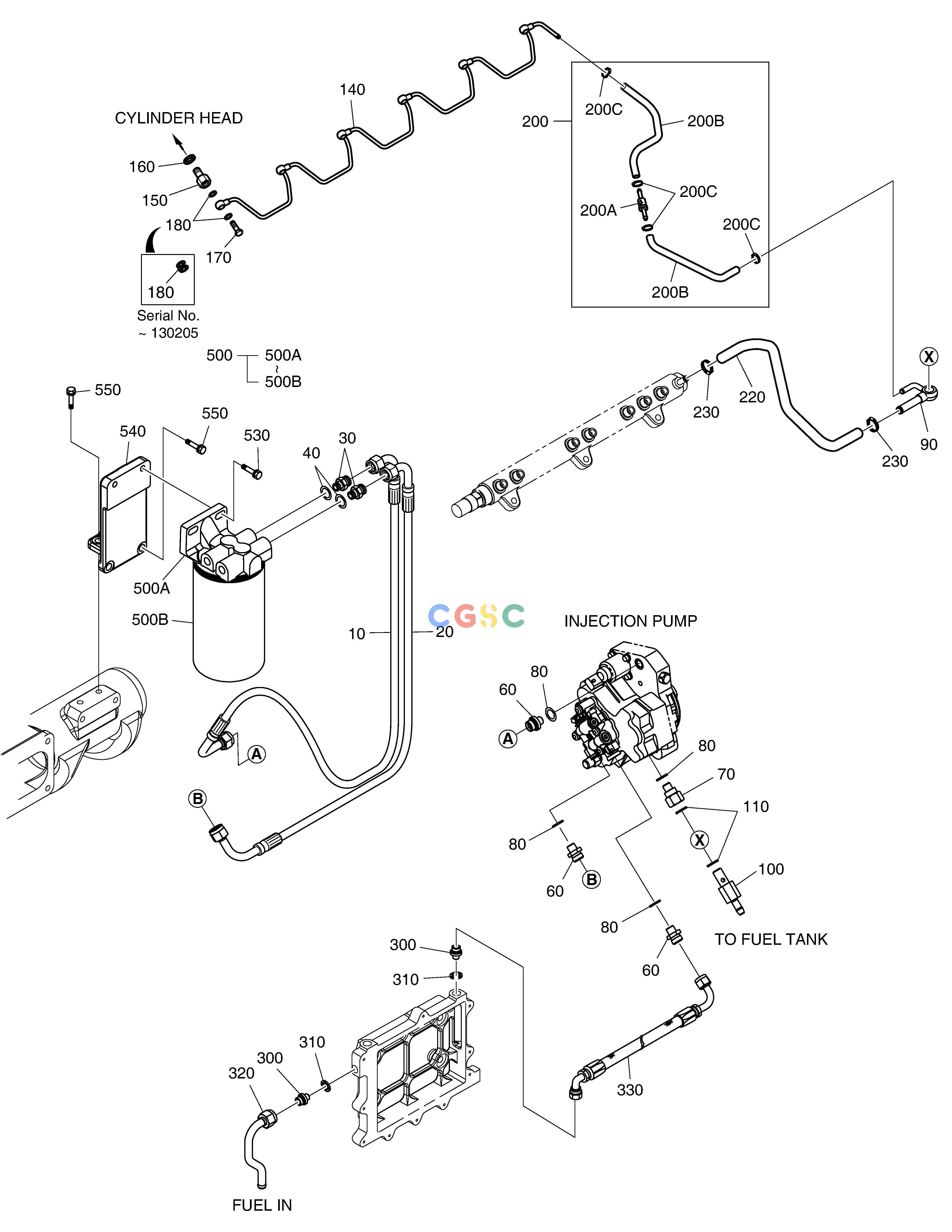

斗山零件查询FUEL SYSTEM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.96340-5082
|
[1] |
HOSE;FUEL
|
|
| 100. |
65.98130-0236
|
[1] |
ADAPTER
|
430201-01089A
|
| 100. |
430201-01089A
|
[1] |
|
|
| 110. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 140. |
65.12301-5261A
|
[1] |
PIPE;FUEL
|
|
| 150. |
65.98130-0154
|
[6] |
ADAPTER
|
|
| 150. |
430201-00844
|
[6] |
ADAPTER
|
430201-01082A
|
| 150. |
430201-01082A
|
[6] |
ADAPTER
|
|
| 160. |
06.56180-0712
|
[6] |
RING;SEAL
|
|
| 170. |
65.98150-0042A
|
[6] |
SCREW;HOLLOW
|
|
| 170. |
120703-00016
|
[6] |
SCREW,HOLLOW
|
120703-00040A
|
| 170. |
120703-00040A
|
[6] |
SCREW,HOLLOW
|
|
| 180. |
65.96507-0055
|
[6] |
RING;SEAL
|
|
| 180. |
65.96507-0001
|
[12] |
RING;SEAL
|
|
| 20. |
65.96340-5083
|
[1] |
HOSE;FUEL
|
|
| 200. |
65.96301-7001C
|
[1] |
HOSE;RUBBER
|
420108-00383
|
| 200. |
420108-00383
|
[1] |
HOSE ASSY
|
|
| 200A. |
65.52101-0004
|
[1] |
REGULATOR;PRESSURE
|
|
| 200B. |
65.96301-0410B
|
[2] |
HOSE;RUBBER
|
420108-00382
|
| 200B. |
420108-00382
|
[2] |
HOSE,RUBBER
|
|
| 200C. |
65.97402-0006
|
[4] |
. CLAMP
|
|
| 200C. |
65.97402-0003
|
[4] |
CLAMP;HOSE
|
65.97402-0006
|
| 220. |
65.96301-0243
|
[1] |
HOSE;RUBBER
|
420103-00134
|
| 220. |
420103-00134
|
[1] |
HOSE,FUEL
|
|
| 230. |
65.97440-0045
|
[2] |
CLAMP
|
|
| 30. |
65.98130-0229
|
[2] |
ADAPTER
|
430201-01086
|
| 30. |
430201-01086
|
[2] |
. ADAPTER
|
|
| 300. |
65.98130-0229
|
[2] |
ADAPTER
|
430201-01086
|
| 300. |
430201-01086
|
[2] |
. ADAPTER
|
|
| 310. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 320. |
65.12301-5268
|
[1] |
PIPE;FUEL
|
|
| 330. |
65.12301-5287
|
[1] |
HOSE;RUBBER
|
65.96340-5069
|
| 330. |
65.96340-5069
|
[1] |
HOSE;RUBBER
|
|
| 40. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 500. |
400403-00025
|
[1] |
FUEL FILTER ASS'Y
|
|
| 500. |
65.12501-7043A
|
[1] |
FUEL FILTER ASS'Y
|
400403-00025
|
| 500A. |
110973-00001
|
[1] |
HEAD;FUEL FILTER
|
|
| 500A. |
65.12504-5023A
|
[1] |
HEAD;FUEL FILTER
|
110973-00001
|
| 500B. |
65.12503-5033A
|
[1] |
ELEMENT;FUEL FILTER
|
|
| 530. |
06.01923-3218
|
[2] |
BOLT ASS`Y M10X35
|
|
| 540. |
65.12540-0050
|
[1] |
BRACKET;FUEL FILTER
|
|
| 550. |
06.01913-3216
|
[4] |
BOLT M10X28
|
|
| 60. |
65.98130-0235
|
[3] |
ADAPTER
|
430201-01087A
|
| 60. |
430201-01087A
|
[3] |
|
|
| 70. |
65.98130-0159A
|
[1] |
ADAPTER
|
|
| 80. |
06.56190-0704
|
[4] |
. RING;SEAL
|
|
| 90. |
65.12301-5244B
|
[1] |
PIPE;FUEL
|
|
