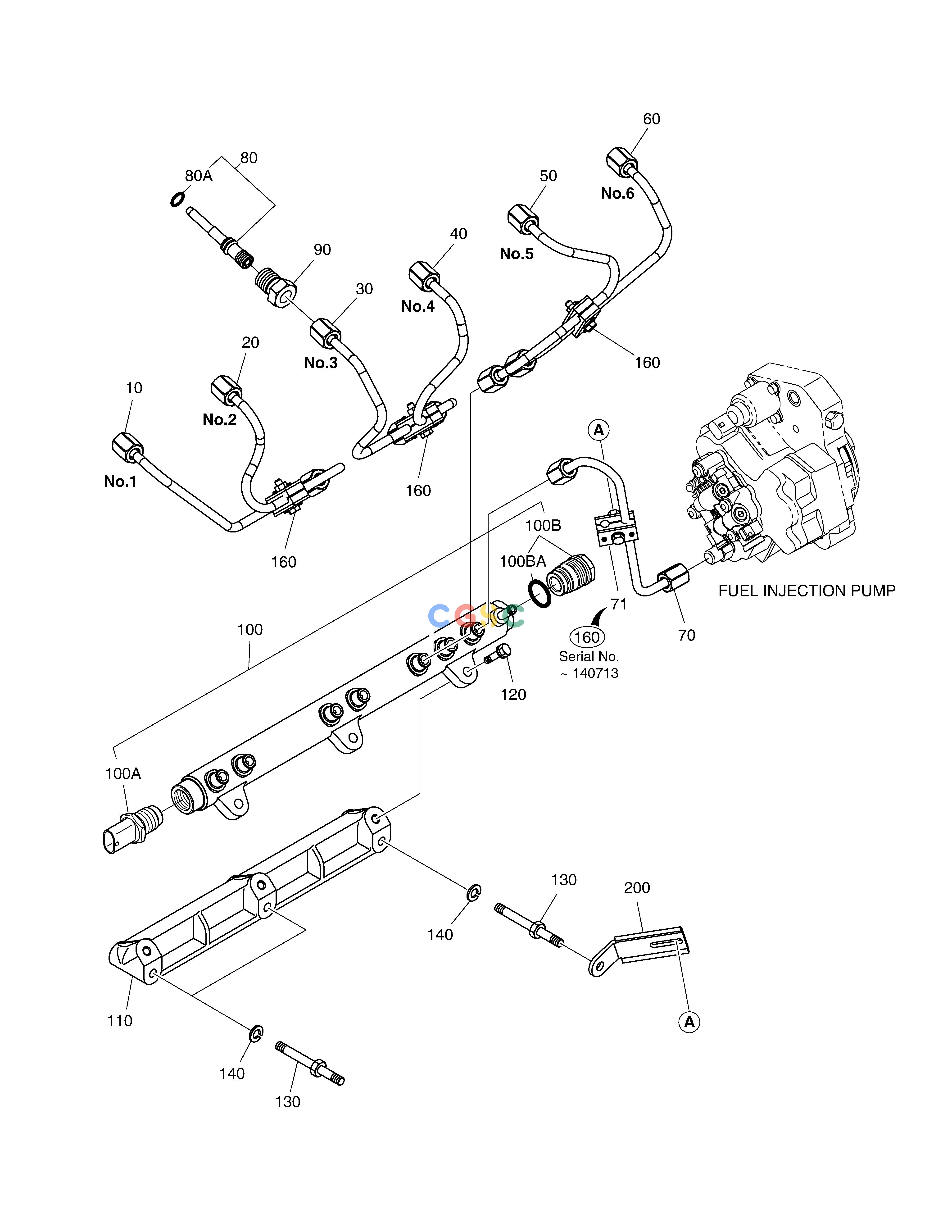

斗山零件查询FUEL INJECTION PIPE DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.10301-6094A
|
[1] |
PIPE;INJECTION
|
|
| 100. |
65.10601-6001A
|
[1] |
RAIL
|
|
| 100A. |
65.27114-5001
|
[1] |
SENSER;RAIL PRESS
|
|
| 100B. |
65.52122-6001
|
[1] |
VALVE;LIMIT PRESS
|
|
| 100BA. |
65.96501-0431
|
[1] |
... O-RING
|
|
| 110. |
65.10610-0002
|
[1] |
BRACKET;RAIL MOUNTING
|
|
| 120. |
06.01913-3117
|
[3] |
BOLT ASS`Y M8X30
|
|
| 130. |
65.90201-0093
|
[3] |
BOLT;STUD
|
|
| 140. |
06.16731-2107
|
[3] |
WASHER
|
|
| 160. |
65.97401-6036
|
[4] |
CLIP;PIPE
|
|
| 160. |
120402-00463
|
[3] |
|
|
| 20. |
65.10301-6095B
|
[1] |
PIPE;INJECTION
|
|
| 200. |
65.97480-0206A
|
[1] |
HOLDER
|
|
| 30. |
65.10301-6096B
|
[1] |
PIPE;INJECTION
|
|
| 40. |
65.10301-6097A
|
[1] |
PIPE;INJECTION
|
|
| 50. |
65.10301-6098A
|
[1] |
PIPE;INJECTION
|
|
| 60. |
65.10301-6099A
|
[1] |
PIPE;INJECTION
|
|
| 70. |
65.10301-6104A
|
[1] |
PIPE;INJECTION
|
|
| 71. |
65.97401-6036
|
[1] |
CLIP;PIPE
|
|
| 80. |
65.10410-6004A
|
[6] |
CONNECTOR
|
|
| 80. |
65.10410-6004
|
[6] |
CONNECTOR
|
65.10410-6004A
|
| 80A. |
65.96501-0433
|
[1] |
O-RING
|
65.96501-0434A
|
| 80A. |
65.96501-0434A
|
[1] |
|
|
| 90. |
65.10415-0001
|
[6] |
NUT
|
|
