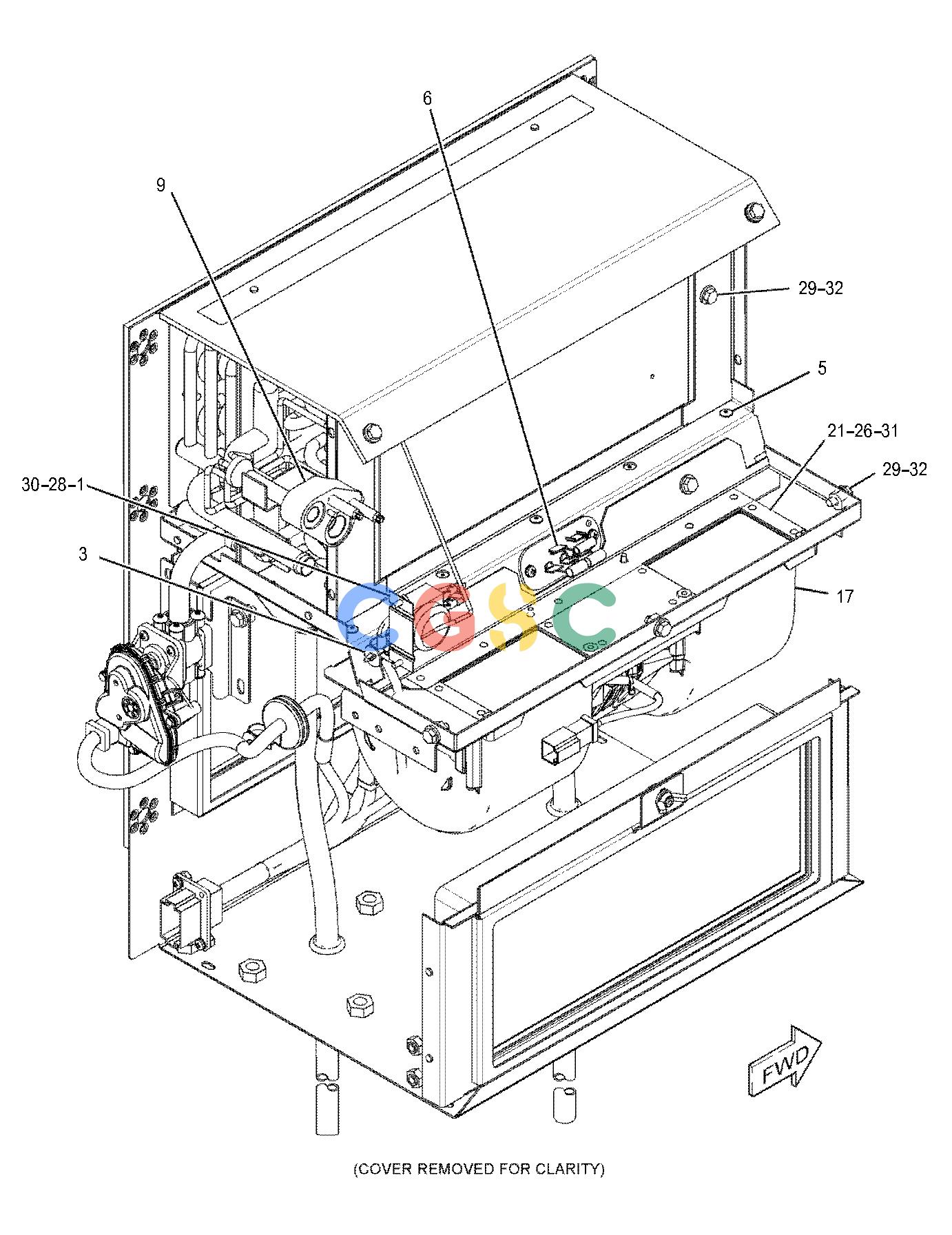

卡特零件查询（725C） 329-8940: AIR CONDITIONER GP
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5464 | [1] | SWITCH AS-THERMOSTAT(HVAC) | |
| 2. | 8C-3756 | [1] | FILM-IDENTIFICATION(AIR CONDITIONER) | |
| 3. | 134-3518 | [2] | TIE-PUSH MOUNT | |
| 5. | 247-8302 | [8] | RIVET | |
| 6. | 257-5029 | [1] | RESISTOR AS | |
| 7. | 259-3222 | [1] | FILTER ELEMENT-AIR(STANDARD EFFICIENCY)(CAB HEATER, AIR CONDITIONER) | |
| 8. | 275-6658Y | [1] | PAN GP-DRAIN(AIR CONDITIONER) | |
| 9. | 342-8127 | [1] | COIL AS-EVAPORATOR | |
| | 325-4416M | [2] | STUD(M8X1.25X52-MM) | |
| | 327-0282 | [1] | SEAL-INTEGRAL(1/2-IN) | |
| | 327-0283 | [1] | SEAL-INTEGRAL(3/4-IN) | |
| 15. | 275-6702 | [1] | PLATE AS | |
| 17. | 275-6706 | [1] | MOTOR AS-BLOWER(24-VOLT)(HEATER, A/C) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 18. | 275-6708 | [1] | PLATE | |
| 19. | 275-6709 | [1] | PLATE | |
| 20. | 275-6710 | [1] | RETAINER(PUSH ON) | |
| 21. | 292-2905 | [1] | PLATE AS | |
| | 6V-9632M | [3] | NUT-WELD(M6X1-THD) | |
| | 9X-2032M | [8] | NUT-WELD(M4X0.7-THD) | |
| 23. | | [1] | CASE AS |
| | 6V-9632M | [17] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [4] | LINK | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 165-8718M | [4] | NUT-WELD(M4X0.7-THD) | |
| 24. | 352-2194Y | [1] | HARNESS AS-MOTOR(AIR CONDITIONER) | |
| 25. | 096-4034M | [1] | BOLT-WING(M6X1X15-MM) | |
| 26. | 096-6166 | [12] | WASHER-HARD(4.5X9X1-MM THK) | |
| 27. | 351-1770Y | [1] | COIL GP-HEATER | |
| 28. | 3B-4501 | [2] | LOCKWASHER | |
| 29. | 5C-9553M | [21] | BOLT(M6X1X16-MM) | |
| 30. | 8C-8514 | [2] | SCREW-MACHINE(8-32X0.375-IN) | |
| 31. | 8T-0337M | [12] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 32. | 8T-4205 | [22] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 33. | 362-0658 | [1] | GASKET | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 294-8679 | [1] | KIT-GASKET(AIR CONDITIONER) | |
| | | | (INCLUDES GASKETS) |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
