卡特零件查询（725C） 528-1311: AIR CONDITIONER GP
广数供应链运营团队, 14 02月, 2025，浏览：
175 次

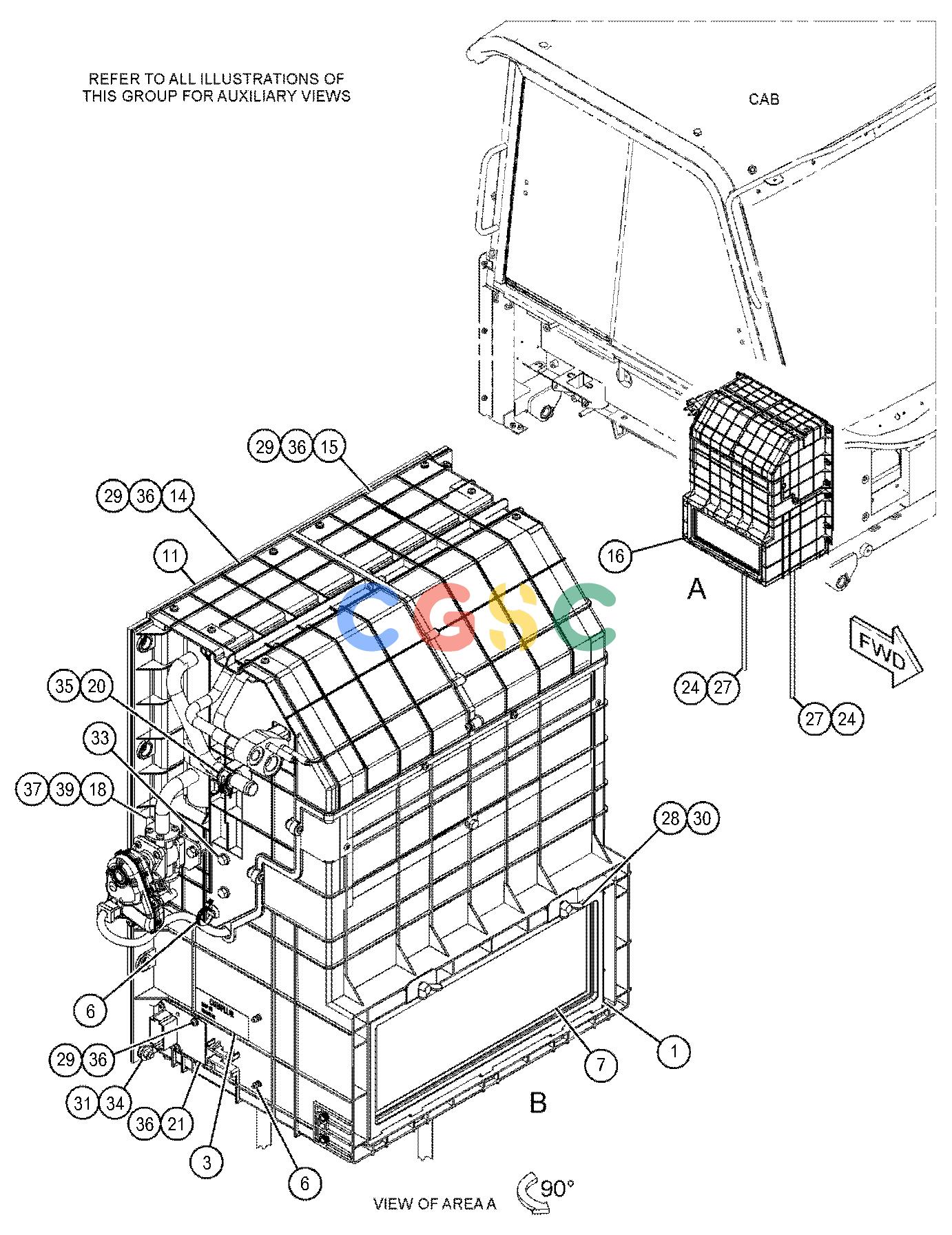

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 467-9160 | [1] | PLATE | |
| 2. | 3E-5464 | [1] | SWITCH AS-THERMOSTAT(HVAC) | |
| 3. | 8C-3756 | [1] | FILM-IDENTIFICATION(AIR CONDITIONER) | |
| 4. | 098-5231 | [2] | RIVET | |
| 5. | 131-3093 | [1] | BUSHING | |
| 6. | 206-1345 | [3] | STRAP-CABLE | |
| 7. | 259-3222 | [1] | FILTER ELEMENT-AIR(STANDARD EFFICIENCY) | |
| 8. | 268-8769 | [1] | VALVE & MOUNTING AS-WATER | |
| 9. | 279-0850 | [1] | ACTUATOR(ELECTRONIC) | |
| 10. | 453-2441 | [1] | BLOWER AS | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 11. | 467-9148 | [1] | CASE AS | |
| | 5P-5923 | [5] | SEAL | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 165-8718M | [14] | NUT-WELD(M4X0.7-THD) | |
| 12. | 467-9149 | [1] | COIL AS-EVAPORATOR | |
| | 5P-5923D | | SEAL(2-M) | |
| | 325-4416M | [2] | STUD(M8X1.25X52-MM) | |
| 13. | 467-9150 | [1] | PAN-DRAIN | |
| 14. | 467-9151 | [1] | COVER | |
| 15. | 467-9152 | [1] | COVER | |
| 16. | 467-9153 | [1] | CASE AS | |
| | 214-6197 | [2] | PLUG | |
| 17. | | [2] | GROMMET |
| 18. | 467-9155 | [1] | PLATE | |
| 19. | 467-9156 | [1] | COIL AS-HEATER | |
| | 5P-5923D | | SEAL(1-M) | |
| 20. | 467-9157 | [1] | CLIP | |
| 21. | 467-9161 | [1] | PLATE | |
| 22. | 467-9163 | [1] | SEAL | |
| 23. | 470-6598 | [1] | PLATE AS | |
| | 5P-5923 | [1] | SEAL | |
| | 6V-9632M | [5] | NUT-WELD(M6X1-THD) | |
| | 153-6932 | [1] | GASKET | |
| | 165-8718M | [8] | NUT-WELD(M4X0.7-THD) | |
| 24. | 470-6600 | [2] | GROMMET | |
| 25. | 473-4608 | [1] | TUBE | |
| 26. | 513-3387Y | [1] | HARNESS AS-MOTOR | |
| 27. | 520-4556 | [2] | HOSE-DRAIN | |
| 28. | 096-4034M | [2] | BOLT-WING(M6X1X15-MM) | |
| 29. | 096-6166 | [15] | WASHER-HARD(4.5X9X1-MM THK) | |
| 30. | 275-6710 | [2] | RETAINER(PUSH ON) | |
| 31. | 344-5673M | [6] | NUT(M6X1-THD) | |
| 32. | 4D-2297 | [2] | SEAL-O-RING | |
| 33. | 5C-9553M | [7] | BOLT(M6X1X16-MM) | |
| 34. | 5Y-2425 | [6] | WASHER(6.5X17.5X1.5-MM THK) | |
| 35. | 6V-9672M | [10] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 36. | 8T-0337M | [31] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 37. | 8T-4971M | [2] | BOLT(M6X1X30-MM) | |
| 38. | 9X-2185 | [8] | SCREW(8-15X0.44-IN) | |
| 39. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
