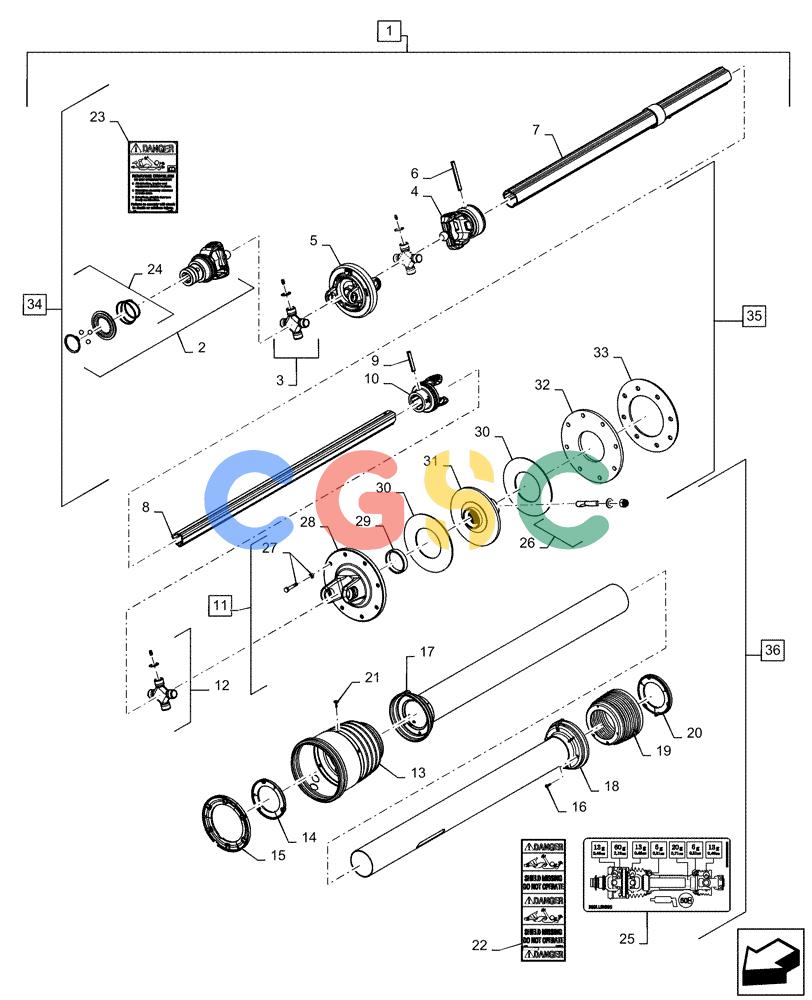

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (31.201.AD[02]) - VAR - 726527 - PTO ASSEMBLY, 540 RPM, 1700 N-M, SLIP CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84253264
|
[1] |
PTO
|
PLO
Slip Clutch, 540 PM, 1700 N-m, Incl 2 - 34
|
| 2. |
87517822
|
[1] |
YOKE
|
BEL
incl 24
|
| 3. |
87517823
|
[2] |
BEARING ASSY
|
BEL
|
| 4. |
87517824
|
[1] |
YOKE
|
BEL
Front
|
| 5. |
87517825
|
[1] |
YOKE
|
BEL
Central SFT CV S6
|
| 6. |
87517826
|
[1] |
ROLL PIN,10.5mm OD x 95mm L
|
BEL
|
| 7. |
84540279
|
[1] |
DRIVE SHAFT
|
NH
|
| 8. |
87484368
|
[1] |
TUBE,1050 mm L
|
PA
|
| 9. |
84036368
|
[1] |
ROLL PIN
|
ZED
|
| 10. |
87517829
|
[1] |
YOKE
|
BEL
|
| 11. |
84540723
|
[1] |
SLIP CLUTCH
|
NH
Incl 26 - 33
|
| 12. |
87018244
|
[1] |
CROSS
|
RAC
Superseded by part number: 84355352
|
| 13. |
84540281
|
[1] |
CONE
|
NH
|
| 14. |
87517831
|
[1] |
BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm
|
BEL
|
| 15. |
87517832
|
[1] |
BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm
|
BEL
Superseded by part number: 87587199
|
| 16. |
87587200
|
[6] |
SELF-TAP SCREW
|
ZED
4.8 x 22
|
| 17. |
84540283
|
[1] |
GUARD
|
NH
PTO, Front
|
| 18. |
84540284
|
[1] |
GUARD
|
NH
PTO, Rear
|
| 19. |
47517439
|
[1] |
CONE
|
BU
|
| 20. |
86979196
|
[1] |
BEARING,86mm ID x 132mm OD x 12mm H
|
PA
|
| 21. |
87716643
|
[6] |
SELF-TAP SCREW
|
ZED
4.8 x 22, Flange Head
|
| 22. |
849471
|
[1] |
DANGER DECAL
|
NH
|
| 23. |
849472
|
[1] |
DANGER DECAL
|
NH
|
| 24. |
47654384
|
[1] |
COLLAR
|
NH
Superseded by part number: 87587209
|
| 25. |
47598521
|
[1] |
IMPORTANT DECAL
|
NH
|
| 26. |
47362902
|
[1] |
PIN
|
NH
Superseded by part number: 86625865
|
| 27. |
87012735
|
[8] |
KIT
|
PA
Bolt
|
| 28. |
86979201
|
[1] |
YOKE
|
PA
|
| 29. |
47654389
|
[1] |
BUSHING,56mm ID x 64mm OD x 12.5mm Thk
|
NH
Superseded by part number: 84026575
|
| 30. |
86517364
|
[2] |
CLUTCH PLATE,85mm ID x 162mm OD x 3.2mm Thk
|
PA
|
| 31. |
86625864
|
[1] |
HUB
|
NH
|
| 32. |
87517773
|
[1] |
THRUST PLATE
|
BEL
|
| 33. |
87517766
|
[1] |
BELLEVILLE SPRING
|
BEL
|
| 34. |
84540299
|
[1] |
PTO
|
NH
Half, Incl 2 - 7, 24 - 33
|
| 35. |
84540728
|
[1] |
PTO
|
NH
Half, Incl 8 - 11, 26 - 33
|
| 36. |
84540301
|
[1] |
GUARD
|
NH
Incl 13 - 22, 25
|
