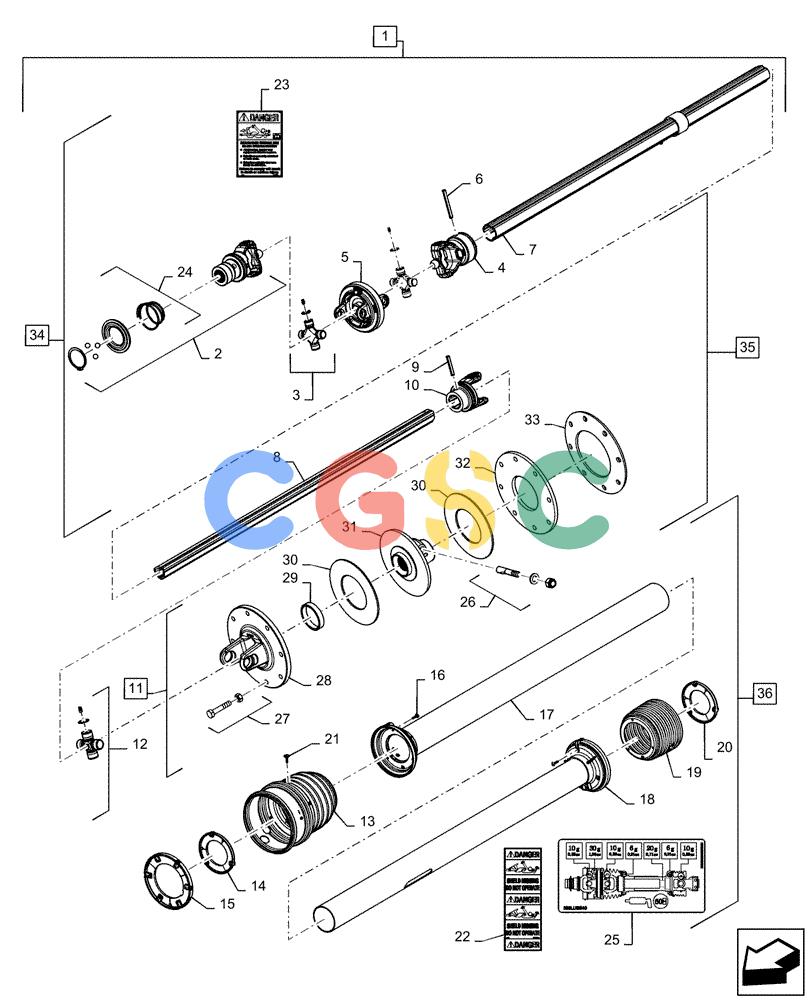

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (31.201.AD[03]) - VAR - 726528 - PTO ASSEMBLY, 1000 RPM, 1000 N-M, SLIP CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84253256
|
[1] |
PTO
|
PLO
Slip Clutch, 1000 PRM, 1000 N-m
|
| 2. |
87517788
|
[1] |
YOKE
|
BEL
Incl 24
|
| 3. |
87517787
|
[2] |
U-JOINT SPIDER
|
BEL
|
| 4. |
87517786
|
[1] |
YOKE
|
BEL
|
| 5. |
87517785
|
[1] |
BODY
|
BEL
|
| 6. |
87517784
|
[1] |
ROLL PIN,8.6mm OD x 80mm L
|
BEL
|
| 7. |
84540237
|
[1] |
DRIVE SHAFT
|
NH
|
| 8. |
84540238
|
[1] |
DRIVE SHAFT
|
NH
|
| 9. |
87586150
|
[1] |
ROLL PIN,8mm OD x 55mm L
|
ZED
|
| 10. |
87517779
|
[1] |
YOKE
|
BEL
|
| 11. |
87517776
|
[1] |
SLIP CLUTCH
|
BEL
|
| 12. |
87018246
|
[1] |
SPIDER
|
RAC
|
| 13. |
84540241
|
[1] |
CONE
|
NH
|
| 14. |
87517774
|
[1] |
SHIELD
|
BEL
Front
|
| 15. |
87517775
|
[1] |
SHIELD
|
BEL
Front
|
| 16. |
87587200
|
[6] |
SELF-TAP SCREW
|
ZED
4.8 x 22
|
| 17. |
84540242
|
[1] |
SHIELD
|
NH
Outer
|
| 18. |
84540243
|
[1] |
SHIELD
|
NH
Outer
|
| 19. |
84147760
|
[1] |
CONE
|
NH
|
| 20. |
86625852
|
[1] |
RING NUT
|
NH
|
| 21. |
87716643
|
[6] |
SELF-TAP SCREW
|
ZED
4.8 x 22 Self-Tapping, Flange Head
|
| 22. |
849471
|
[1] |
DANGER DECAL
|
NH
|
| 23. |
849472
|
[1] |
DANGER DECAL
|
NH
|
| 24. |
47654384
|
[1] |
COLLAR
|
NH
Superseded by part number: 87587209
|
| 25. |
47598238
|
[1] |
IMPORTANT DECAL
|
NH
|
| 26. |
47362902
|
[1] |
PIN
|
NH
Superseded by part number: 86625865
|
| 27. |
87012735
|
[8] |
KIT
|
PA
Bolt
|
| 28. |
86625860
|
[1] |
CLUTCH PLATE
|
NH
Superseded by part number: 86625849, 86625849, 87012732
|
| 29. |
47654389
|
[1] |
BUSHING,56mm ID x 64mm OD x 12.5mm Thk
|
NH
Superseded by part number: 84026575
|
| 30. |
86517364
|
[2] |
CLUTCH PLATE,85mm ID x 162mm OD x 3.2mm Thk
|
PA
|
| 31. |
86625864
|
[1] |
HUB
|
NH
|
| 32. |
87517773
|
[1] |
THRUST PLATE
|
BEL
|
| 33. |
87517766
|
[1] |
BELLEVILLE SPRING
|
BEL
|
| 34. |
47598556
|
[1] |
HALF SHAFT
|
NH
Half, Inner, Incl 2 - 7, 24 - 23
|
| 35. |
47598622
|
[1] |
HALF SHAFT
|
NH
Half, Outer, Incl 8 - 11, 26 - 33
|
| 36. |
47598558
|
[1] |
KIT
|
NH
Incl 13 - 22, 25
|
