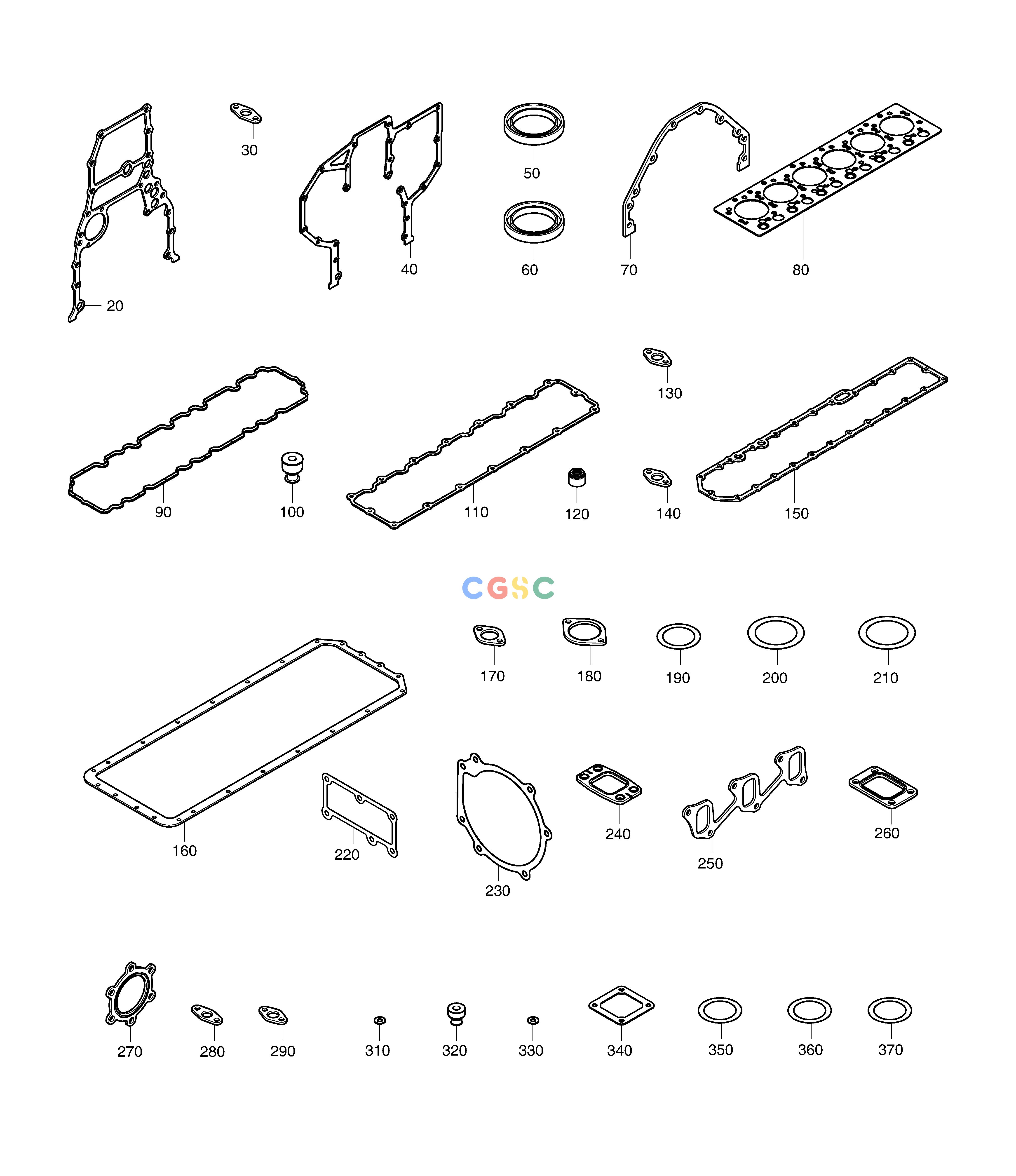

斗山零件查询OVER HAUL GASKET KIT - ALL DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.99601-8054
|
[1] |
ALL OVERHAUL GASKET KIT
|
|
| 100. |
65.03905-5002
|
[8] |
PACKING;HEAD COVER
|
|
| 110. |
400603-00048
|
[1] |
GASKET;INTERMEDIATE COVER
|
|
| 110. |
65.03905-0045
|
[1] |
GASKET;CYLINDER HEAD COVER
|
400603-00048
|
| 120. |
65.04902-0014
|
[24] |
SEAL;VALVE STEAM
|
|
| 130. |
65.05903A0001
|
[2] |
GASKET
|
|
| 140. |
65.05903A0001
|
[2] |
GASKET
|
|
| 150. |
65.05902-0019
|
[2] |
GASKET;OIL COOLER
|
|
| 160. |
65.05904-0038
|
[1] |
GASKET;OIL PAN
|
400604-00025
|
| 160. |
400604-00025
|
[1] |
GASKET,OIL PAN
|
|
| 170. |
65.05901-0027
|
[1] |
GASKET
|
|
| 180. |
65.06901-0037
|
[1] |
GASKET;WATER PUMP
|
|
| 190. |
65.96501-0089A
|
[2] |
O-RING
|
|
| 20. |
65.01903-0012
|
[1] |
GASKET
|
|
| 200. |
06.56342-1208
|
[2] |
O-RING
|
|
| 210. |
65.06901A0069
|
[2] |
GASKET
|
|
| 220. |
65.06901-0040
|
[1] |
GASKET;THERMOSTAT HOUSING
|
|
| 230. |
65.06901-0039
|
[1] |
GASKET;WATER PUMP
|
|
| 240. |
65.08901-0032A
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 250. |
65.08902-0035
|
[2] |
GASKET;INTAKE MANIFOLD
|
|
| 260. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 270. |
65.09901-0030
|
[1] |
GASKET;TURBO CHARGER
|
|
| 280. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 290. |
65.96601-0052
|
[1] |
GASKET
|
|
| 30. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 310. |
65.96507-0053
|
[6] |
RING;SEAL
|
|
| 320. |
65.96210-6001A
|
[4] |
RUBBER;CUSHION
|
|
| 330. |
06.56180-0712
|
[18] |
RING;SEAL
|
|
| 340. |
65.08904-0002
|
[4] |
GASKET;AIR HEATER
|
|
| 350. |
06.56020-0116
|
[1] |
O-RING(G100)
|
|
| 360. |
06.56020-0115
|
[1] |
O-RING
|
|
| 370. |
65.96501-0090A
|
[1] |
O-RING
|
|
| 40. |
65.01904-0027A
|
[1] |
GASKET
|
|
| 50. |
65.01510-0141
|
[1] |
OIL SEAL;RR
|
|
| 60. |
65.01510-0041
|
[1] |
SEAL;OIL
|
|
| 70. |
65.01905-0008
|
[1] |
GASKET
|
|
| 80. |
65.03901-0074
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 90. |
65.03905-0032
|
[1] |
GASKET;COVER
|
|
