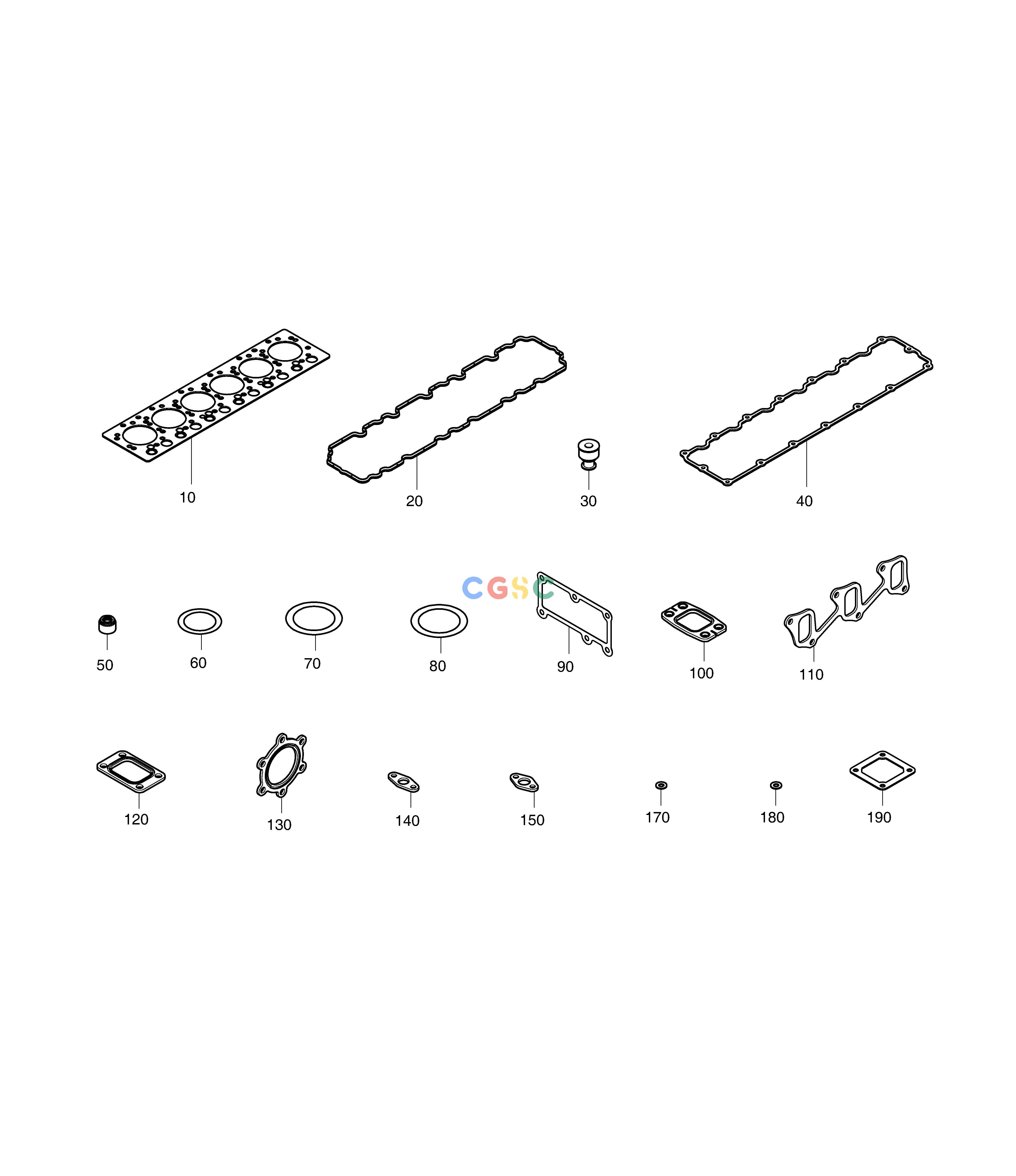

斗山零件查询OVER HAUL GASKET KIT - TOP DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.99605-8035
|
[1] |
KIT;TOP OVERHAUL GASKET
|
|
| 10. |
65.03901-0074
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 100. |
65.08901-0032A
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 110. |
65.08902-0035
|
[2] |
GASKET;INTAKE MANIFOLD
|
|
| 120. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 130. |
65.09901-0030
|
[1] |
GASKET;TURBO CHARGER
|
|
| 140. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 150. |
65.96601-0052
|
[1] |
GASKET
|
|
| 170. |
65.96507-0053
|
[6] |
RING;SEAL
|
|
| 180. |
06.56180-0712
|
[18] |
RING;SEAL
|
|
| 190. |
65.08904-0002
|
[4] |
GASKET;AIR HEATER
|
|
| 20. |
65.03905-0032
|
[1] |
GASKET;COVER
|
|
| 30. |
65.03905-5002
|
[8] |
PACKING;HEAD COVER
|
|
| 40. |
65.03905-0045
|
[1] |
GASKET;CYLINDER HEAD COVER
|
400603-00048
|
| 40. |
400603-00048
|
[1] |
GASKET;INTERMEDIATE COVER
|
|
| 50. |
65.04902-0014
|
[24] |
SEAL;VALVE STEAM
|
|
| 60. |
65.96501-0089A
|
[2] |
O-RING
|
|
| 70. |
06.56342-1208
|
[2] |
O-RING
|
|
| 80. |
65.06901A0069
|
[2] |
GASKET
|
|
| 90. |
65.06901-0040
|
[1] |
GASKET;THERMOSTAT HOUSING
|
|
