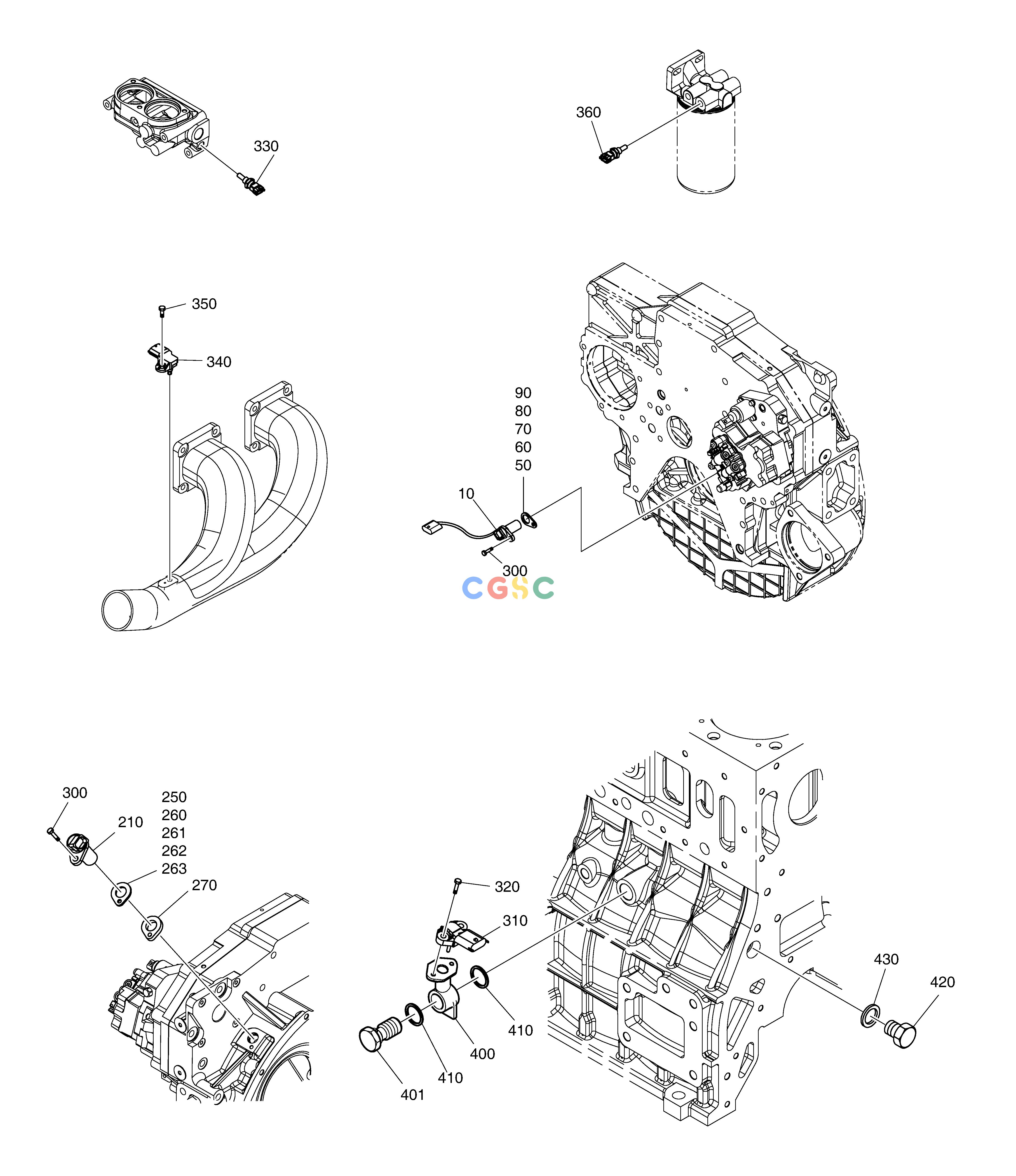

斗山零件查询SENSOR DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
294 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.27103-7014
|
[1] |
SENSOR;CRANK CAM SPEED
|
|
| 210. |
65.27103-7008
|
[1] |
SENSOR;CRANK CAM SPEED
|
|
| 250. |
65.11308-8003
|
[1] |
SPACER;INJECTION PUMP
|
|
| 260. |
65.11308-0005
|
[1] |
SHIM
|
|
| 261. |
65.11308-0006
|
[1] |
SHIM
|
|
| 262. |
65.11308-0007
|
[1] |
SHIM
|
|
| 263. |
65.11308-0008
|
[1] |
SHIM
|
|
| 270. |
65.91701-0229A
|
[1] |
SPACER
|
|
| 300. |
06.01923-2915
|
[2] |
BOLT ASS'Y M6X25
|
|
| 310. |
65.27427-7001
|
[1] |
SENSOR;OIL PRESSURE
|
|
| 320. |
06.01923-2913
|
[2] |
BOLT ASS`Y M6X20
|
|
| 330. |
65.27423-7003
|
[1] |
SENSOR;TEMP
|
|
| 340. |
65.27444-7001
|
[1] |
SENSOR;BOOST PRESSURE
|
|
| 350. |
06.01923-2912
|
[1] |
BOLT ASS'Y M6X18
|
|
| 360. |
65.27423-7003
|
[1] |
SENSOR;TEMP
|
|
| 400. |
65.98130-0247
|
[1] |
ADAPTER
|
|
| 401. |
65.98150-0088
|
[1] |
SCREW;HOLLOW
|
|
| 410. |
06.56190-0718
|
[2] |
RING;SEAL
|
|
| 420. |
65.90310-0132
|
[1] |
SCREW;PLUG
|
|
| 430. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 50. |
65.11308-8003
|
[1] |
SPACER;INJECTION PUMP
|
|
| 60. |
65.11308-0005
|
[1] |
SHIM
|
|
| 70. |
65.11308-0006
|
[1] |
SHIM
|
|
| 80. |
65.11308-0007
|
[1] |
SHIM
|
|
| 90. |
65.11308-0008
|
[1] |
SHIM
|
|
