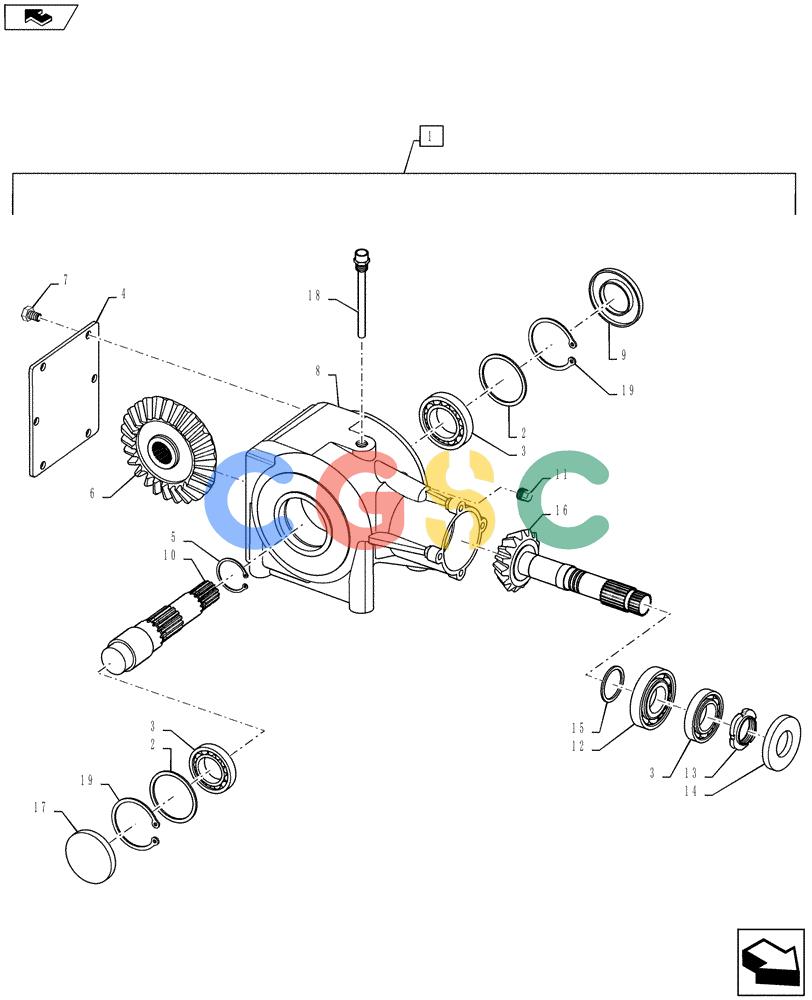

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (31.220.AG[05]) - GEARBOX, 540 RPM Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87391830
|
[1] |
GEARBOX
|
PA
Main Drive, 540 RPM
|
| . . |
87391830R
|
[1] |
REMAN-GEARBOX
|
PA
|
| . . |
87391830C
|
[1] |
CORE-GEARBOX
|
PA
|
| 2. |
86539214
|
[2] |
SHIM
|
NH
|
| 3. |
210053
|
[2] |
TAPERED BEARING,40mm ID x 80mm OD x 18mm W
|
ZED
Superseded by part number: 87668909
|
| 4. |
87016408
|
[1] |
COVER
|
PA
|
| 5. |
86559213
|
[1] |
SNAP RING
|
NH
Ext., M42.5 Superseded by part number: 84437572
|
| 6. |
87518142
|
[1] |
BEVEL GEAR
|
PA
27T
|
| 7. |
43138
|
[6] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 8. |
87518144
|
[1] |
HOUSING
|
PA
|
| 9. |
86539153
|
[1] |
SEAL,40mm ID x 80mm OD x 10mm Thk
|
NH
|
| 10. |
87016406
|
[1] |
GEAR SHAFT
|
PA
|
| 11. |
86557412
|
[2] |
PLUG,3/8" - 19 NPT
|
NH
|
| 12. |
86557433
|
[2] |
TAPERED BEARING,40mm ID x 80mm OD x 24.75mm W
|
NH
|
| 13. |
87016415
|
[1] |
NUT
|
PA
M40 x 1.5
|
| 14. |
87016412
|
[1] |
SEAL
|
PA
35 x 80 x 10
|
| 15. |
86539215
|
[1] |
KIT
|
NH
|
| 16. |
87518146
|
[1] |
SHAFT
|
PA
15T
|
| 17. |
86539148
|
[1] |
CAP
|
NH
|
| 18. |
86626270
|
[1] |
DIPSTICK,129mm L
|
NH
|
| 19. |
87016402
|
[2] |
SNAP RING,80mm x 4.15mm Thk
|
PA
Superseded by part number: 84446717
|
