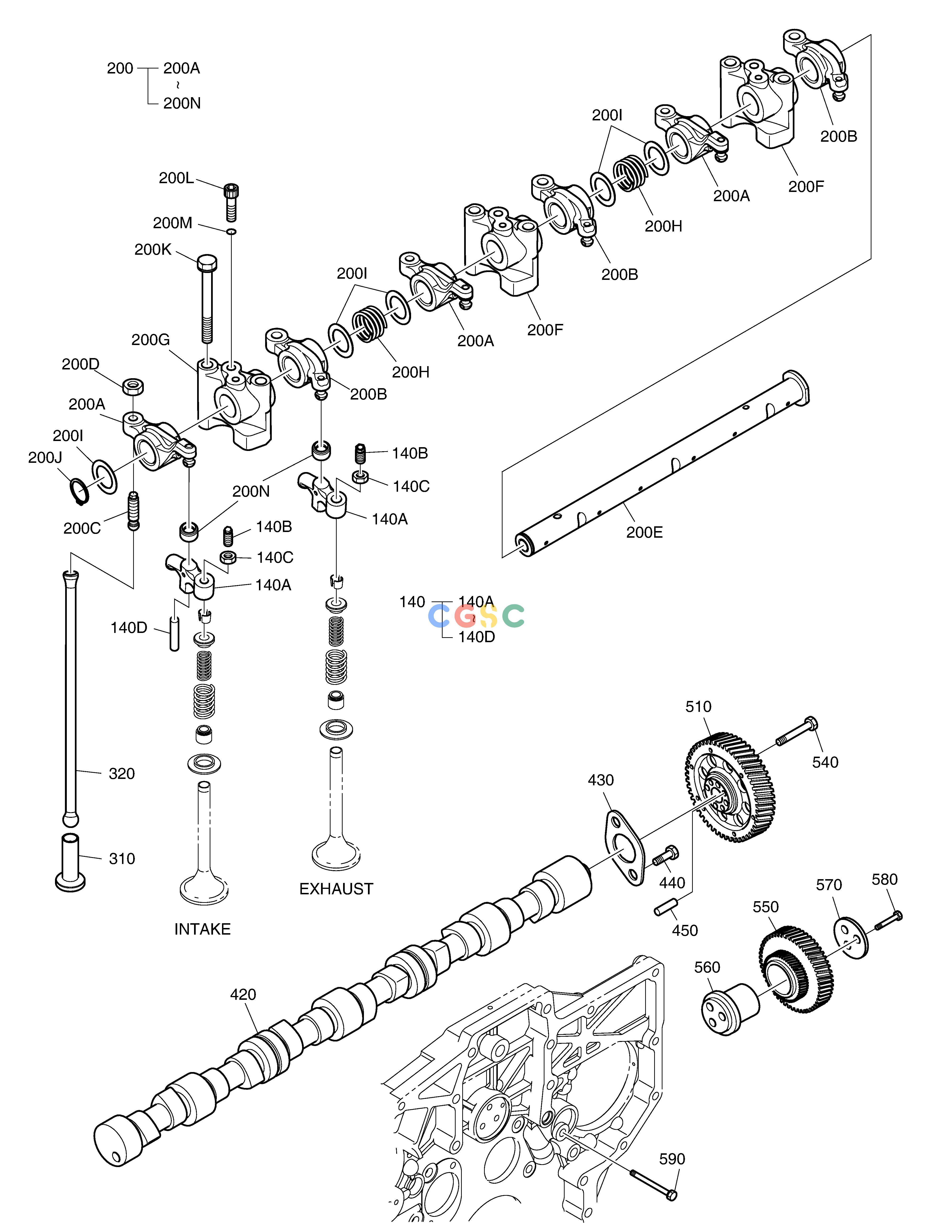

斗山零件查询TIMING SYSTEM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 140. |
65.04130-6001B
|
[12] |
CALIPER
|
|
| 140A. |
65.04130-0001C
|
[1] |
CALIPER
|
|
| 140B. |
65.04205-0007A
|
[1] |
SCREW;ADJUST
|
|
| 140C. |
65.90501-0031
|
[1] |
NUT;HEX.
|
|
| 140D. |
65.04135-0003
|
[12] |
PIN;CALIPER GUIDE
|
|
| 200. |
65.04200-6030E
|
[2] |
ROCKER ARM SHAFT ASS'Y
|
|
| 200A. |
65.04201-5025
|
[3] |
ARM;ROCKER
|
|
| 200B. |
65.04201-5026
|
[3] |
ARM;ROCKER
|
|
| 200C. |
65.04205-0012
|
[6] |
SCREW;ADJUST
|
|
| 200D. |
65.90501-0031
|
[6] |
NUT;HEX.
|
|
| 200E. |
65.04203-5017A
|
[1] |
SHAFT;ROCKER ARM
|
|
| 200F. |
65.04202-0026
|
[2] |
BRACKET;ROCKER ARM
|
|
| 200G. |
65.04202-0027
|
[1] |
BRACKET;ROCKER ARM
|
|
| 200H. |
65.97601-0118
|
[2] |
SPRING;COMPRESSION
|
|
| 200I. |
65.90701-0136B
|
[5] |
. WASHER
|
|
| 200J. |
06.29010-0120
|
[1] |
. RING;SNAP
|
|
| 200K. |
65.90020-0093
|
[6] |
BOLT;COLLARED HEX.
|
|
| 200L. |
65.90030-0020
|
[1] |
BOLT;SOCKET HEAD
|
|
| 200M. |
06.16110-0106
|
[1] |
. WASHER
|
|
| 200N. |
65.04209-0002A
|
[6] |
CAP;ADJUST SCREW
|
|
| 310. |
65.04301-5002B
|
[12] |
TAPPET;VALVE
|
|
| 320. |
65.04302-0001A
|
[12] |
ROD;PUSH
|
|
| 420. |
65.04401-0047
|
[1] |
SHAFT;CAM
|
150103-00034
|
| 420. |
150103-00034
|
[1] |
CAMSHAFT
|
|
| 430. |
65.90720-0027A
|
[1] |
WASHER;THRUST
|
|
| 440. |
65.90020-0092
|
[2] |
BOLT;COLLARED HEX.
|
|
| 450. |
06.22022-1016
|
[1] |
PIN;DOWEL
|
|
| 510. |
65.04501-6002A
|
[1] |
GEAR;CAM SHAFT
|
|
| 540. |
65.90020-0086
|
[4] |
BOLT;COLLARED HEX.
|
|
| 550. |
65.04505-5003B
|
[1] |
GEAR;IDLE
|
|
| 560. |
65.04506-0012A
|
[1] |
PIN;IDEL GEAR
|
120501-02549
|
| 560. |
120501-02549
|
[1] |
PIN;IDLE GEAR
|
|
| 570. |
65.90720-0028C
|
[1] |
WASHER;THRUST
|
|
| 580. |
65.90020-0085
|
[3] |
BOLT;COLLARED HEX
|
|
| 590. |
06.01914-3221
|
[1] |
BOLT ASS'Y M10X50
|
|
