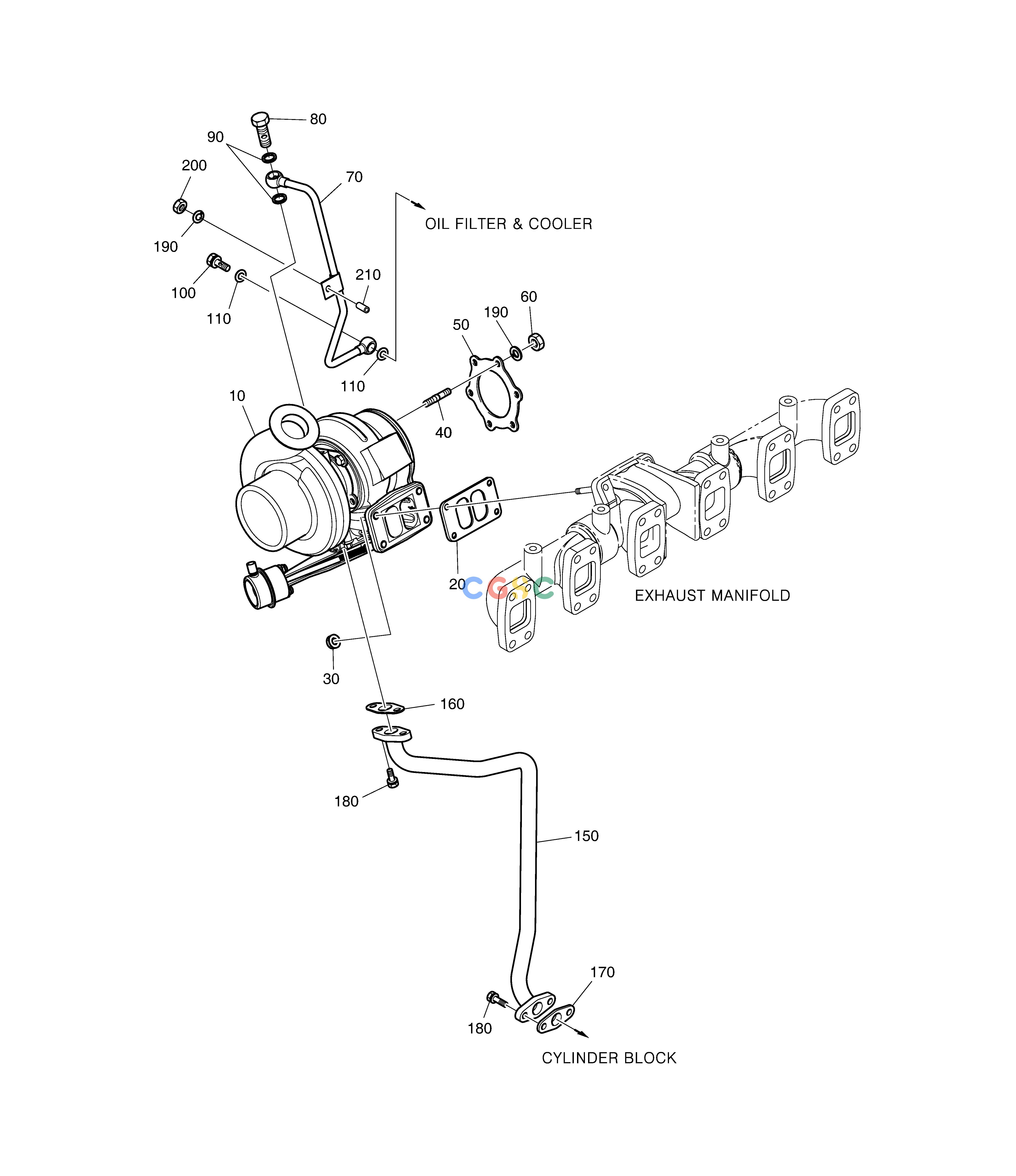

斗山零件查询TURBO CHARGER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.09100-7098
|
[1] |
TURBO CHARGER ASS'Y
|
|
| 10. |
65.09100-7140
|
[1] |
TURBO CHARGER ASS'Y
|
|
| 100. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 110. |
06.56190-0705
|
[2] |
RING;SEAL
|
|
| 150. |
65.05701-5523
|
[1] |
PIPE;OIL
|
|
| 160. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 170. |
65.96601-0052
|
[1] |
GASKET
|
|
| 180. |
06.01913-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 190. |
06.16731-2107
|
[7] |
WASHER
|
|
| 20. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 200. |
06.11063-8214
|
[1] |
. NUT
|
|
| 210. |
65.91701-0213
|
[1] |
SPACER
|
|
| 210. |
65.91701-0252
|
[1] |
SPACER
|
|
| 30. |
65.90535-0001
|
[4] |
NUT
|
|
| 40. |
65.90201-0127
|
[6] |
BOLT;STUD
|
|
| 50. |
65.09901-0030
|
[1] |
GASKET;TURBO CHARGER
|
|
| 60. |
06.11063-8214
|
[6] |
. NUT
|
|
| 70. |
65.05701-5501
|
[1] |
PIPE;OIL
|
420214-00145A
|
| 70. |
420214-00145A
|
[1] |
|
|
| 80. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 90. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
