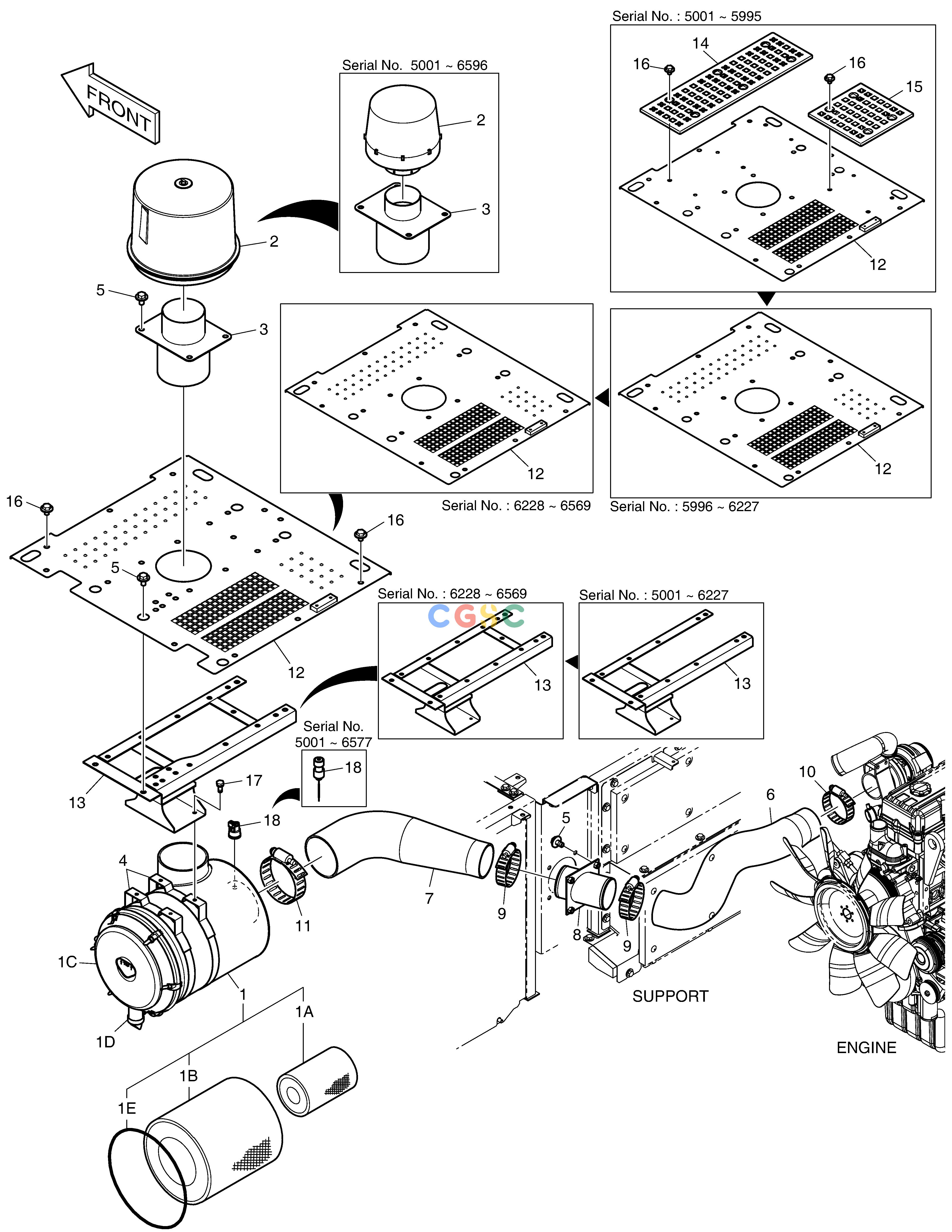

斗山零件查询AIR CLEANER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005074E
|
[-] |
AIR CLEANER ASS'Y
|
|
| -. |
400414-00021
|
[-] |
AIR CLEANER ASS'Y
|
|
| 1. |
204-00066
|
[1] |
AIR CLEANER
|
|
| 10. |
S8510118
|
[1] |
CLAMP
|
|
| 11. |
S8510168
|
[1] |
CLAMP;HOSE
|
|
| 12. |
K1006047
|
[1] |
COVER
|
110508-00153
|
| 12. |
110508-00153
|
[1] |
COVER
|
|
| 12. |
110508-00219
|
[1] |
|
110508-00219A
|
| 12. |
110508-00219A
|
[1] |
|
|
| 12. |
110508-09471A
|
[1] |
|
|
| 13. |
K1000640
|
[1] |
SUPPORT
|
|
| 13. |
110958-00780
|
[1] |
|
|
| 13. |
110958-01600
|
[1] |
|
|
| 14. |
K1002915
|
[1] |
PLATE;ANTI-SKID
|
|
| 15. |
K1002478
|
[1] |
PLATE;ANTI-SKID
|
|
| 16. |
DS0025022
|
[23] |
BOLT
|
|
| 16. |
DS0025022
|
[11] |
BOLT
|
|
| 16. |
DS0025022
|
[10] |
BOLT
|
|
| 17. |
DS0025024
|
[4] |
BOLT
|
|
| 18. |
170-00004
|
[1] |
INDICATOR
|
|
| 18. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 1A. |
474-00037
|
[1] |
ELEMENT;INNER
|
|
| 1B. |
474-00038
|
[1] |
ELEMENT;OUTER
|
|
| 1C. |
204-00069
|
[1] |
COVER
|
|
| 1D. |
204-00070
|
[1] |
VALVE
|
|
| 1E. |
204-00071
|
[1] |
RING,O
|
|
| 2. |
400415-00043
|
[1] |
|
|
| 2. |
K1043471
|
[1] |
PRE CLEANER
|
|
| 3. |
420202-00449
|
[1] |
|
|
| 3. |
K1006040A
|
[1] |
PIPE
|
|
| 4. |
124-00297A
|
[2] |
BAND
|
|
| 5. |
DS0025015
|
[12] |
BOLT
|
|
| 6. |
K1005120
|
[1] |
HOSE;AIR
|
|
| 7. |
K1005119
|
[1] |
HOSE;AIR
|
|
| 8. |
K1005359
|
[1] |
PIPE;AIR
|
|
| 9. |
S8510143
|
[2] |
CLAMP
|
|
