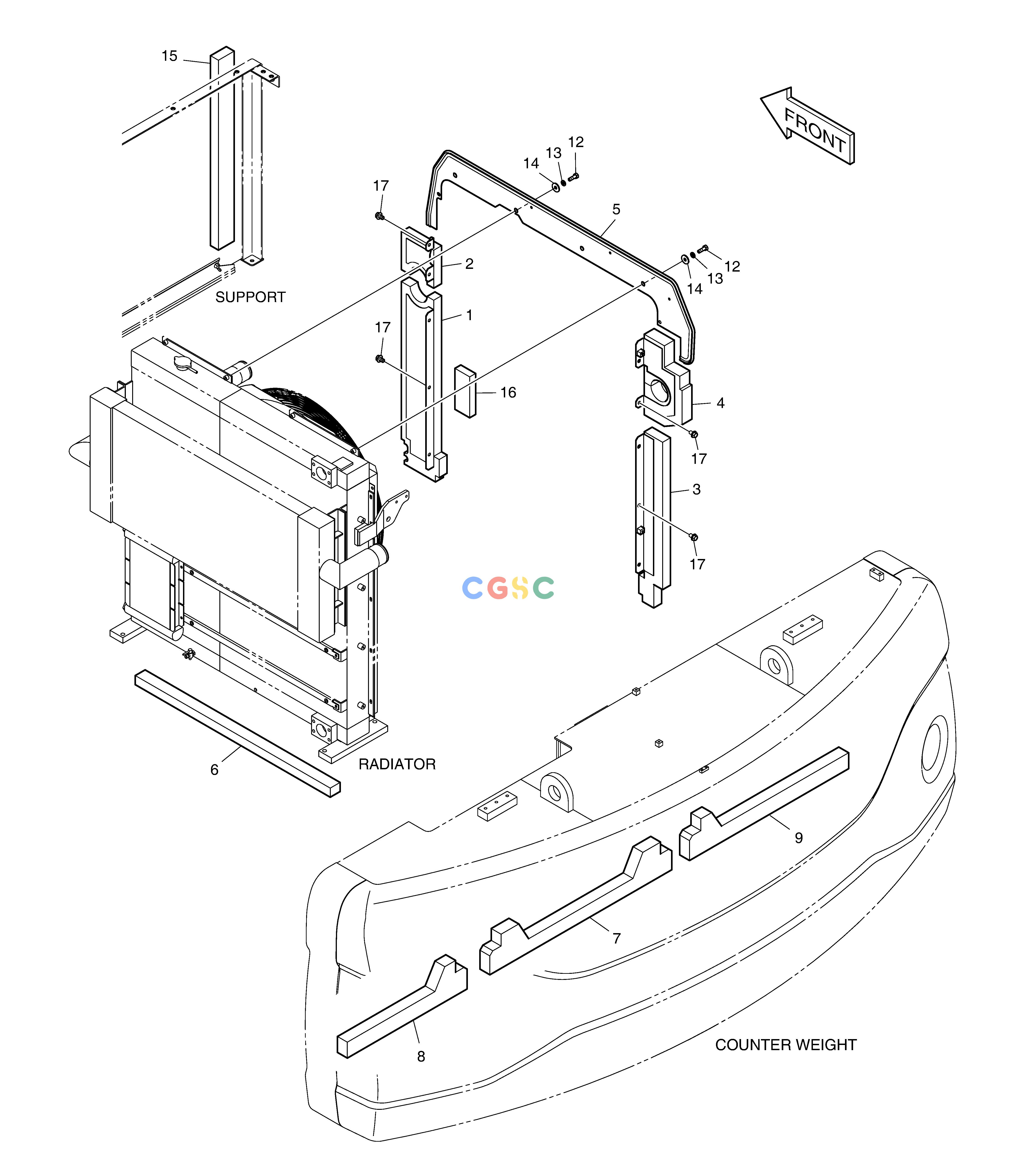

斗山零件查询ACOUSTIC FOAM DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
414 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
180102-00963
|
[-] |
|
|
| -. |
K1005073A
|
[-] |
ACOUSTIC FOAM
|
|
| 1. |
K1005783A
|
[1] |
COVER
|
|
| 12. |
S0509066
|
[6] |
BOLT
|
|
| 13. |
S5102503
|
[6] |
. WASHER
|
|
| 14. |
2114-1058D29
|
[6] |
WASHER
|
|
| 15. |
161-00614
|
[1] |
FOAM
|
|
| 16. |
K1009110
|
[1] |
FORM;POLYURETHANE
|
|
| 17. |
K1001029
|
[10] |
BOLT
|
|
| 2. |
K1005784
|
[1] |
COVER
|
|
| 3. |
K1005785
|
[1] |
COVER
|
|
| 4. |
K1005786A
|
[1] |
COVER
|
|
| 5. |
K1005782A
|
[1] |
COVER
|
110508-16882
|
| 5. |
110508-16882
|
[1] |
|
|
| 6. |
K1004636
|
[1] |
FOAM
|
|
| 7. |
K1005837
|
[1] |
FOAM;POLYURETHANE
|
|
| 8. |
K1005835A
|
[1] |
FOAM;POLYURETHANE
|
|
| 9. |
K1005836
|
[1] |
FOAM;POLYURETHANE
|
|
