| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

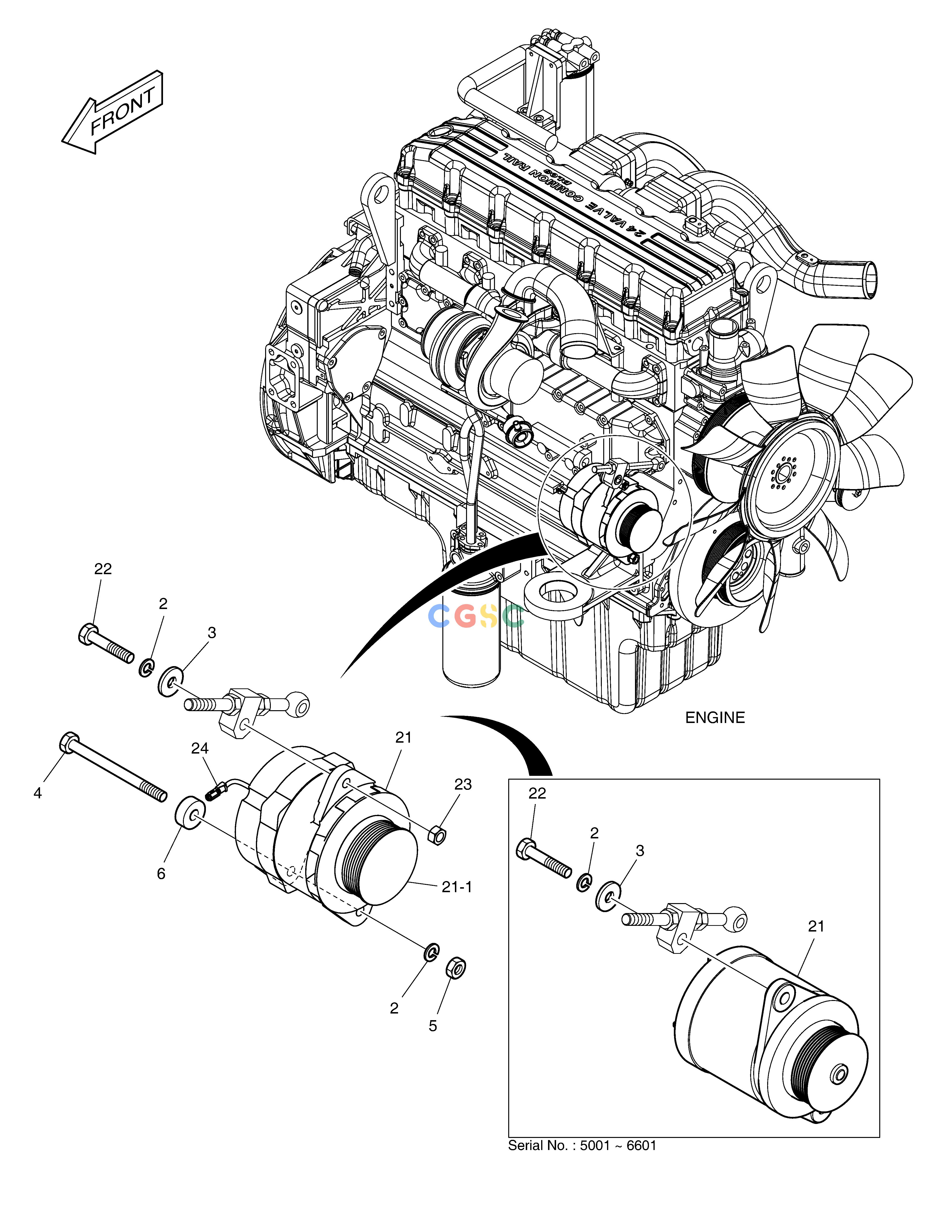

| -. | K1009387A | [-] | ALTERNATOR MOUNTING | |
| 2. | S5102703 | [2] | WASHER | |
| 21. | 2502-9009 | [1] | ALTERNATOR | |
| 21. | 300901-00034 | [1] | ||
| 21-1. | 130707-00042 | [1] | ||
| 22. | S0786653 | [1] | BOLT M12X1.5X55 | |
| 22. | S0761053 | [1] | BOLT | |
| 23. | S4032733 | [1] | NUT | |
| 24. | 530-00123 | [1] | HARNESS;ALTERNATOR | |
| 3. | 2114-1058D54 | [1] | WASHER | |
| 4. | S0562653 | [1] | BOLT | |
| 5. | S4012733 | [1] | NUT | |
| 6. | 2114-1058D70 | [1] | WASHER |
